 Post subject: Re-using PVC fitting
PostPosted: Jan 28th, '11, 21:10
Legend Member
Legend Member
User avatar

Joined: Aug 3rd, '09, 06:50
Posts: 956
Location: Bullsbrook
Gender: Male
Are you human?: 01011001011001010111
Location: Western Australia
I had to use this old trick today and thought I would show those that hadn't seen it before.

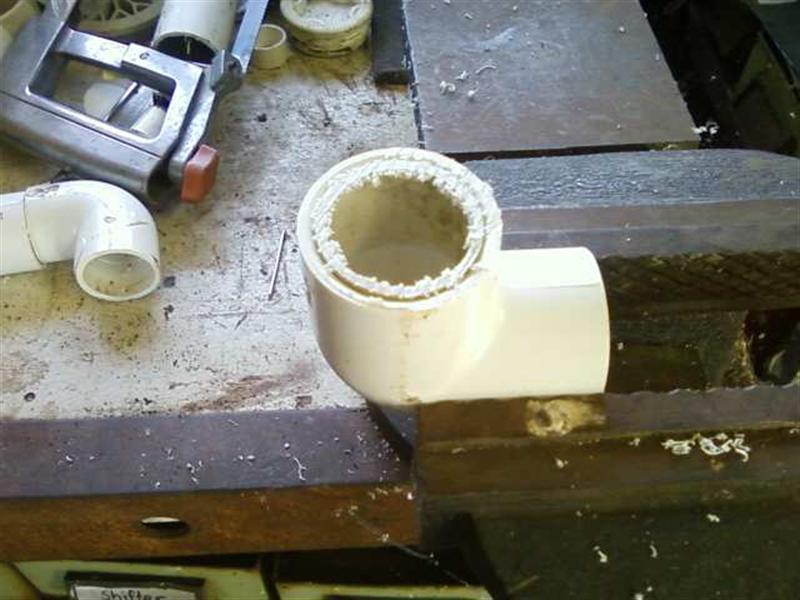

Step 1: Trip pipe close to fitting

Attachment:
Photo0159 (Medium).jpg
Photo0159 (Medium).jpg [ 61.4 KiB | Viewed 2111 times ]

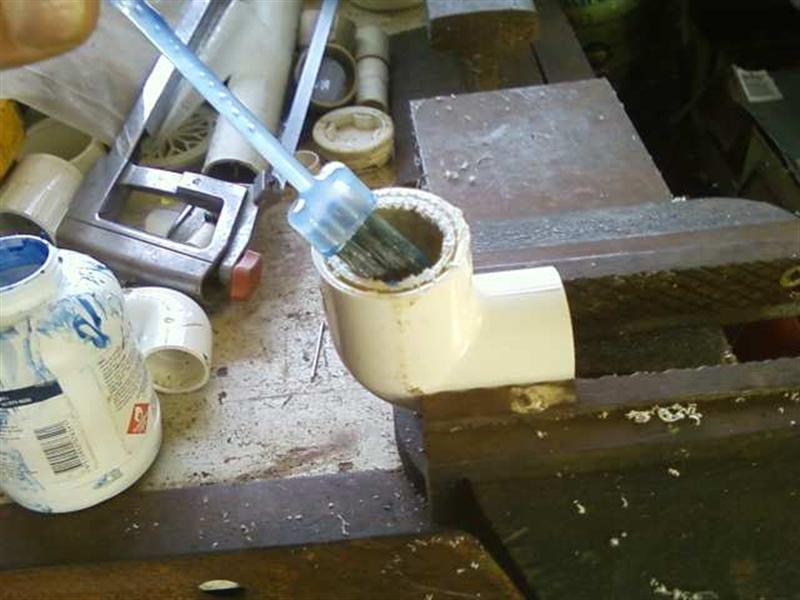

Step 2: Paint inside of the pipe only with PVC cement

Attachment:
Photo0160 (Medium).jpg
Photo0160 (Medium).jpg [ 58.79 KiB | Viewed 2111 times ]

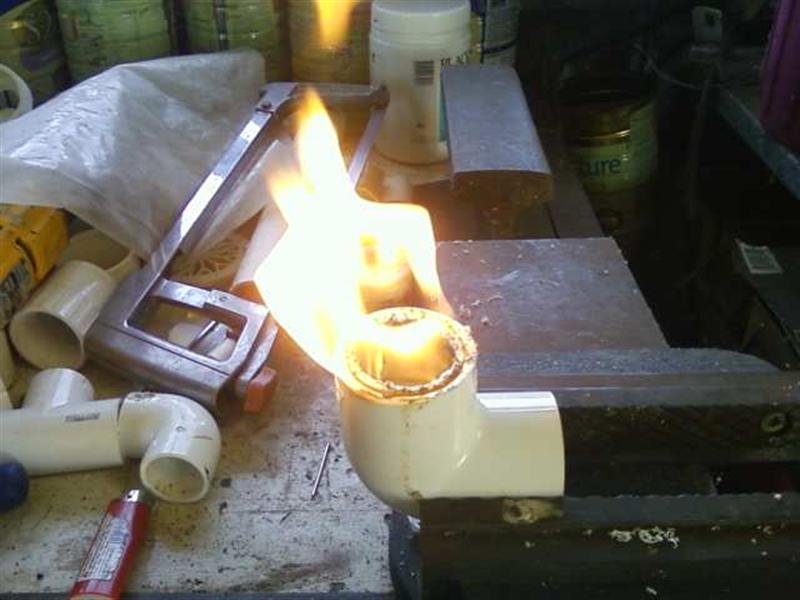

Step 3: :violent3:

Attachment:
Photo0162 (Medium).jpg
Photo0162 (Medium).jpg [ 52.07 KiB | Viewed 2112 times ]


Top
 Profile
Reply with quote
    Advertisement

 Post subject: Re: Re-using PVC fitting
PostPosted: Jan 28th, '11, 21:13
Legend Member
Legend Member
User avatar

Joined: Aug 3rd, '09, 06:50
Posts: 956
Location: Bullsbrook
Gender: Male
Are you human?: 01011001011001010111
Location: Western Australia

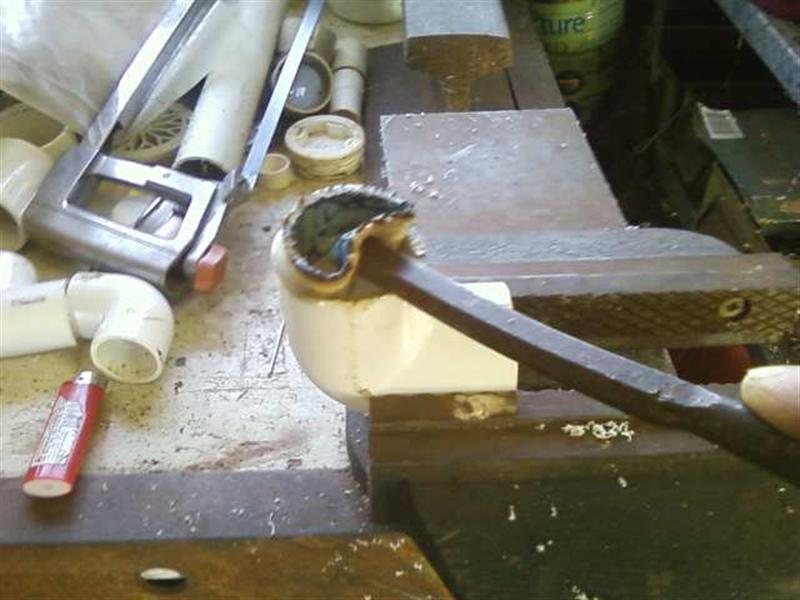

Step 4: gently lever out as pipe is now soft from the heat

Attachment:
Photo0165 (Medium).jpg
Photo0165 (Medium).jpg [ 56.47 KiB | Viewed 2098 times ]

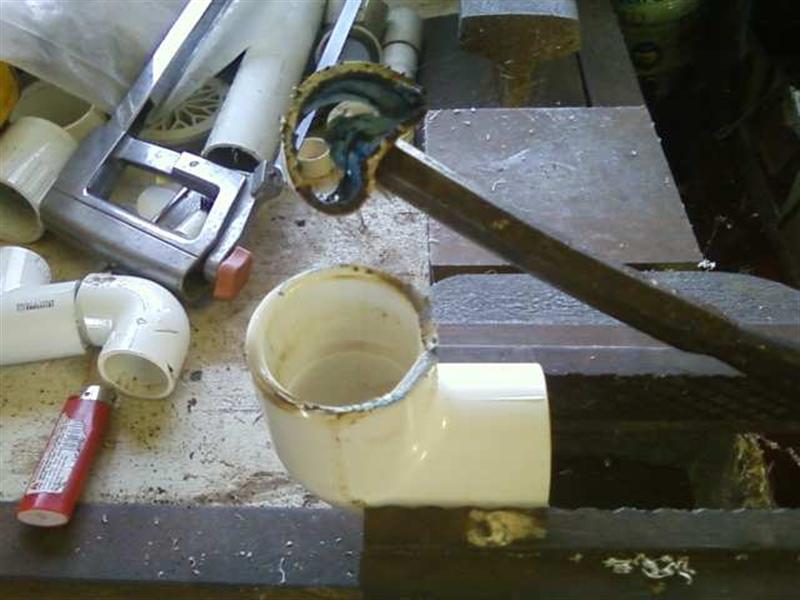

Step 5: hopefully you are left with a fairly clean undamaged fitting that can be reused

Attachment:
Photo0166 (Medium).jpg
Photo0166 (Medium).jpg [ 57.11 KiB | Viewed 2098 times ]


Hope this helps someone :flower:


Top
 Profile
Reply with quote
 Post subject: Re: Re-using PVC fitting
PostPosted: Jan 28th, '11, 21:29
Xtreme Contributor
Xtreme Contributor

Joined: Aug 26th, '10, 12:33
Posts: 119
Gender: Male
Are you human?: yes
Location: Ellenbrook perth west oz
I use a heat gun, :think: But that looks like a hell of good time. :cheers:


Top
 Profile
Reply with quote
 Post subject: Re: Re-using PVC fitting
PostPosted: Jan 28th, '11, 22:47
Legend Member
Legend Member
User avatar

Joined: Aug 7th, '10, 23:04
Posts: 578
Images: 0
Gender: Male
Are you human?: very
Location: W.A. Perth NOR
I dont glue mine.
The critical ones that I cant afford to come loose I just put a small tek screw in the join to stop it moving. The screw goes in just enough so that only 1 or 2 mm sticks into pipe.
Thought maybe that screw could corrode and effect water but exposure is minimal. :dontknow:


Top
 Profile Personal album
Reply with quote
 Post subject: Re: Re-using PVC fitting
PostPosted: Jan 28th, '11, 23:04
Legend Member
Legend Member
User avatar

Joined: Jul 20th, '08, 19:03
Posts: 651
Gender: None specified
Are you human?: What time is it?
Location: Near Melbourne
hehehe...Hubby - usually quite a dab hand at this technique from having to find and re-use parts in a hurry when an irrigation pipe needs fixin', somehow managed to slip and nearly hit bone on his thumb last week when trying to remove the inner section with a VERY sharp budding knife :shock:

... moral of the story - it works a treat and is a really good technique...(great photos - well done Simo)... but choose your 'inner pipe removal' implements wisely :D

It can sometimes take a bit of levering if you havnt kept it lit for long enough (which I think is what hubby might have done) - but can melt outer pipe if left for too long? - is that right or do you just let it burn out Simo?


Top
 Profile
Reply with quote
 Post subject: Re: Re-using PVC fitting
PostPosted: Jan 29th, '11, 01:18
Legend Member
Legend Member
User avatar

Joined: Mar 10th, '08, 16:49
Posts: 595
Location: Mississippi
Gender: Male
Are you human?: yes
Location: Mississippi
Simo, that's cool. I have split the inside pipe with a hacksaw blade in a couple of places and removed with knife.
Thanks for the info.


Top
 Profile
Reply with quote
 Post subject: Re: Re-using PVC fitting
PostPosted: Jan 29th, '11, 08:10
Legend Member
Legend Member
User avatar

Joined: Aug 3rd, '09, 06:50
Posts: 956
Location: Bullsbrook
Gender: Male
Are you human?: 01011001011001010111
Location: Western Australia
netab32 wrote:
It can sometimes take a bit of levering if you havnt kept it lit for long enough (which I think is what hubby might have done) - but can melt outer pipe if left for too long? - is that right or do you just let it burn out Simo?


Yep you need to judge the flame time just right, once you have done it a few time you can figure out exactly how much glue to put on so it burns out leaving the pipe just the right temp.


Top
 Profile
Reply with quote
 Post subject: Re: Re-using PVC fitting
PostPosted: Jan 29th, '11, 20:57
Bordering on Legend
Bordering on Legend

Joined: Mar 3rd, '10, 12:09
Posts: 431
Images: 0
Gender: Male
Are you human?: yes
Location: Brisbane, QLD
I do the same, but normally use a smallish flat blade screwdriver. once you lever down, if it doesnt come loose, then you can twist it up nicely so all the edges pop out.


have also come very close to putting a large hole in my hand when i've been in a hurry.


Top
 Profile Personal album
Reply with quote
