Sounds interesting John, and sounds like the sort of thing you might be able to make it fit in to an aquaponics system... I couldn't find much info on the net though with a quick search.

To insert a link into a post, hit post reply at the bottom of the topic. Just above the text box that you start typing into, there's a number of small buttons, one looks like the world with some chain links, click this..

p.s. I lopve your stone seats in the picture, did you make them?


Top
 Profile Personal album
Reply with quote
    Advertisement

 Post subject: Re: solar heating
PostPosted: Jul 26th, '06, 10:37
In need of a life
In need of a life
User avatar

Joined: Jul 20th, '06, 08:36
Posts: 1915
Location: Iowa
Gender: Male
Ahhh, thanks EB.
No my Future Father in law makes those benches the river rock ones are my favorite. He makes them with red brick, stained glass, and just about anything one can stick in concrete. Now that man just keeps going. Try this site if anyone cares to get a better idea on the evacuated tube.
[web]http://thermomax.com/tech.html[/web]


Top
 Profile
Reply with quote
 Post subject: Re: solar heating
PostPosted: Jul 26th, '06, 11:08
In need of a life
In need of a life
User avatar

Joined: Jul 20th, '06, 08:36
Posts: 1915
Location: Iowa
Gender: Male
ok try this one, i think i have it down now
apricus.com
apoligies all


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Jul 26th, '06, 11:13
Site Admin
Site Admin
User avatar

Joined: Mar 12th, '06, 07:56
Posts: 17803
Images: 4
Location: Perth
Gender: Male
Blog: View Blog (1)
Thats great John... I hadn't seen anyone insert a web page into their post before, damn good way of doing it, then people don't have to open up another window to go and look at a link... Nice one... :D

We are all still discovering some of the possibilities of this new discussion group software..


Top
 Profile Personal album
Reply with quote
 Post subject:
PostPosted: Jul 26th, '06, 21:24
Moderator
Moderator
User avatar

Joined: Jun 14th, '06, 19:03
Posts: 5413
Location: Cairns Queensland
Gender: Male
Are you human?: yes
Location: Cairns, Queensland
wow, these tubes sound great - a wonderful answer to our winter hassels... now, how to make a home made one?...


Top
 Profile
Reply with quote
 Post subject: Re: solar heating
PostPosted: Jul 27th, '06, 02:18
In need of a life
In need of a life
User avatar

Joined: Jul 20th, '06, 08:36
Posts: 1915
Location: Iowa
Gender: Male
Well if anyone could make a home built model my bet would be on this group. The idea's that come out of this forum seem endless.
I am going to contact these folks and get a price for a demo model.
One maybe two tubes?
sssolar.com


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Jul 27th, '06, 07:55
Moderator
Moderator
User avatar

Joined: Jun 14th, '06, 19:03
Posts: 5413
Location: Cairns Queensland
Gender: Male
Are you human?: yes
Location: Cairns, Queensland
damn, sounds like a challenge - going to have to reread all this stuff before even considering the projet!


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Jul 29th, '06, 12:02
In need of a life
In need of a life
User avatar

Joined: Jul 20th, '06, 08:36
Posts: 1915
Location: Iowa
Gender: Male
Received a price quote of $40 plus $10 shipping from sssolar.com for a Seido-5 Demo Tube. They say its fully functional, so I'm going to order it and then see what I have to manufacture to interface it into the system water flow. May all turn out to be a bust but have to try and I will of course keep all posted on the outcome.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Jul 29th, '06, 17:04
Moderator
Moderator
User avatar

Joined: Jun 14th, '06, 19:03
Posts: 5413
Location: Cairns Queensland
Gender: Male
Are you human?: yes
Location: Cairns, Queensland
Woohoo, looking forward to reading and seeing pics of your efforts and success!
:D


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Jul 30th, '06, 02:14
Almost divorced
Almost divorced
User avatar

Joined: Jun 26th, '06, 09:06
Posts: 1119
Location: New Zealand
Gender: Male
I'm keen, call me obsessed but I want the inner details of that thing in fine print.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Jul 30th, '06, 06:45
Moderator
Moderator
User avatar

Joined: Jun 14th, '06, 19:03
Posts: 5413
Location: Cairns Queensland
Gender: Male
Are you human?: yes
Location: Cairns, Queensland
okay...
your obsessed!
:laughing3:
But I understand, it sounds like a great idea and is free heat!


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Aug 7th, '06, 14:07
In need of a life
In need of a life
User avatar

Joined: Jul 20th, '06, 08:36
Posts: 1915
Location: Iowa
Gender: Male
After a few days of emailing back and forth here are some pictures of what the people at sun spot solar, call a table top model. No performance specs but they expect it could heat 8 gallons of water a day from 55 deg f to 100 deg f sorry i didnt do the conversion, its either late of im lazy. The price $298.00, and its takes up a 2.5 ft cubic space, weight 30 lbs. Still waiting on the single tube I purchased.


Attachments:
Seido 1-4 AS 3.jpg [174.15 KiB]
Downloaded 3369 times

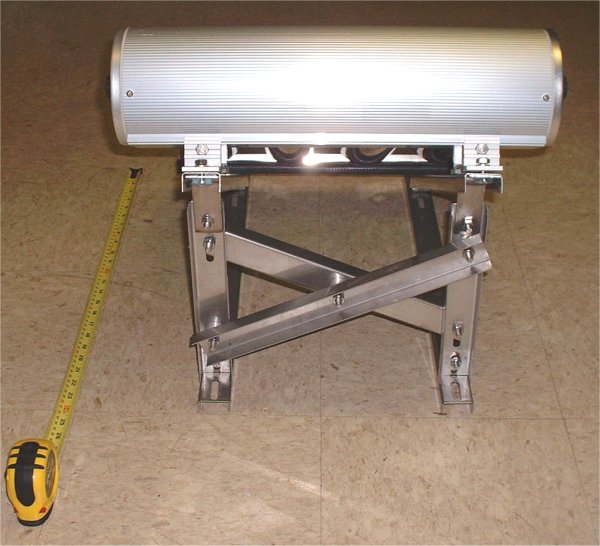

Seido 1-4 AS 2.jpg
Seido 1-4 AS 2.jpg [ 63.39 KiB | Viewed 5335 times ]

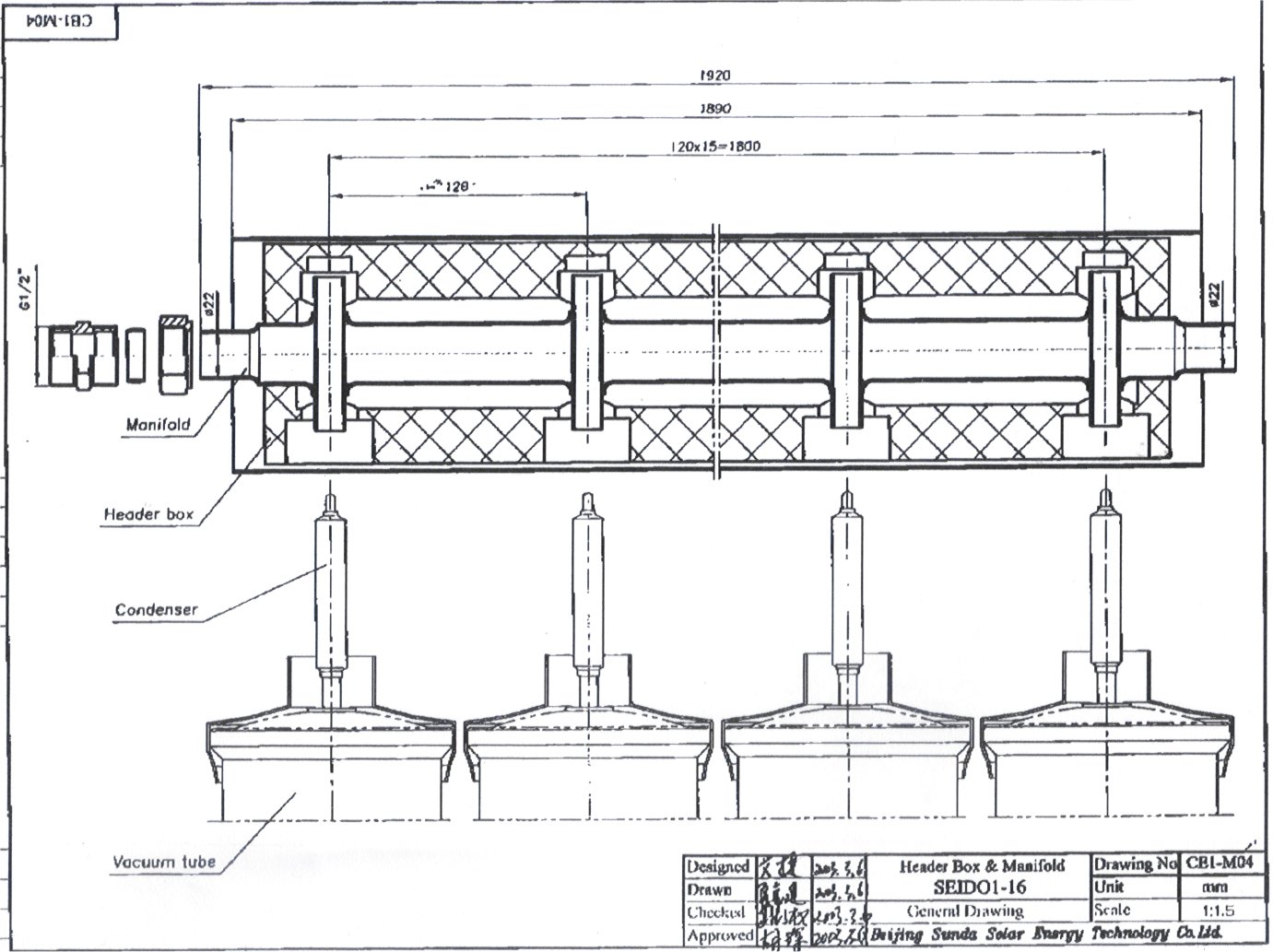

16 Tube Header Assembly.jpg [201.37 KiB]
Downloaded 3369 times
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Aug 7th, '06, 14:09
In need of a life
In need of a life
User avatar

Joined: Jul 20th, '06, 08:36
Posts: 1915
Location: Iowa
Gender: Male
and two more


Attachments:

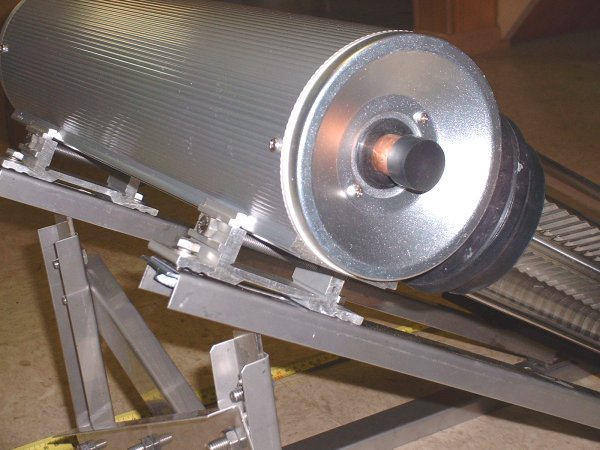

Seido 1-4 AS 5.jpg
Seido 1-4 AS 5.jpg [ 57.81 KiB | Viewed 5337 times ]
Seido 1-4 AS 4.jpg
Seido 1-4 AS 4.jpg [ 87.16 KiB | Viewed 5306 times ]
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Aug 7th, '06, 15:00
Moderator
Moderator
User avatar

Joined: Jun 14th, '06, 19:03
Posts: 5413
Location: Cairns Queensland
Gender: Male
Are you human?: yes
Location: Cairns, Queensland
wow... great pics and drawings!


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Aug 9th, '06, 03:59
In need of a life
In need of a life
User avatar

Joined: Jul 20th, '06, 08:36
Posts: 1915
Location: Iowa
Gender: Male
The pic's are what they sent me in response to my inquiry. With my math it works out to 3000 BTU per day on the table top unit. I dont like that the header is copper piped but maybe have a closed loop system with a coil of pex in a tank for some heat transfer. Not sure if I could just let it thermal syphon or not yet. Either that or a small solar pump would be the best I figure.
I'm thinking of having my fish tank pump up to a blue barrel, (the coil would be placed in that), then have the blue barrel dump into the grow beds and the beds back into the fish tank. Keeps me at one pump for the system.
Plans change as we learn more and bounce idea's about so who knows.
