Nice looking drawing there Janet. That has cleared a lot of cluds for me.


Top
 Profile
Reply with quote
    Advertisement

 Post subject: Re: Airlift/Geyser pumps
PostPosted: Dec 22nd, '06, 23:47
A posting God
A posting God
User avatar

Joined: Nov 3rd, '06, 01:30
Posts: 3131
Location: Cochranville, Pennsylvania USA
Gender: Female
Are you human?: yes
Location: Pennsylvania, USA
More fun! I couldn't stand it anymore, and put the pump in the tank with a length of tubing so I could blow some air into it. Based on preliminary tests, I'm able to raise water about 1 meter off the bottom of the tank! The riser is a bit shorter than that, and I get spurts of water out the top.

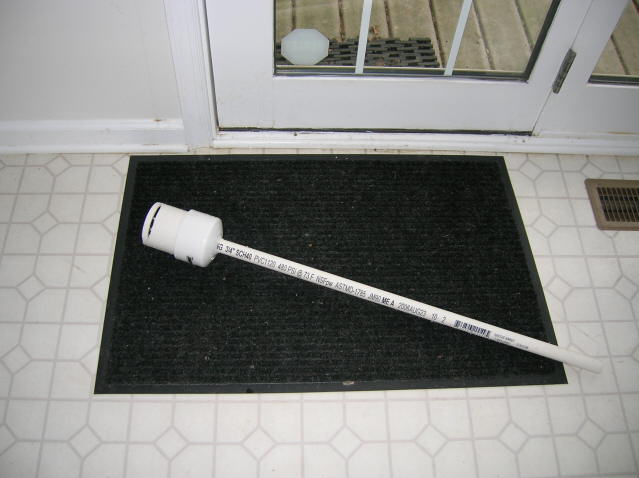

The pictures show all. The tall riser is 3/4 inch (18mm) ID, and is 36 inches (915mm) tall. The outer bell is 3 inch (75mm) ID and about 5.5 inches (140 mm) tall. The inner bell is 1.5 inch (40mm) ID and about 2.5 inches (60mm) tall. The hole in the side of the riser is just a wedge cut, almost half way through the riser.

I'm not attempting actions shots until I get a real air pump. (Just in case you were thinking of asking.) I do have concerns that insufficient air flow would allow air to escape slowly rather than explosively as is needed.


Attachments:

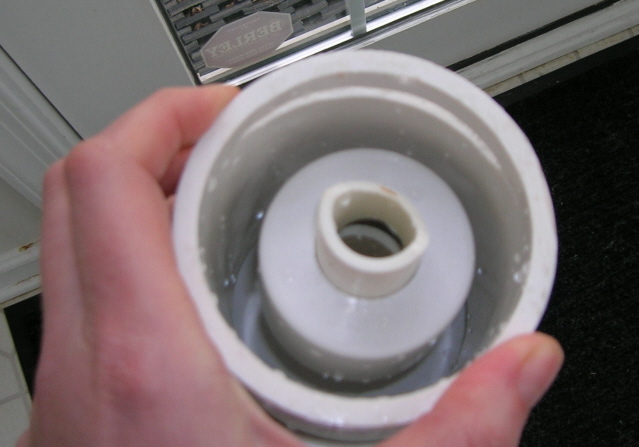

File comment: Looking up from the bottom. I need to drill a hole for airline hose, and put a couple airstones under there. Air will go up around the sides, not through the central riser.
DSCN0269 small.jpg
DSCN0269 small.jpg [ 100.44 KiB | Viewed 4378 times ]
File comment: The whole thing.
DSCN0268 small.jpg
DSCN0268 small.jpg [ 39.54 KiB | Viewed 4373 times ]
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Dec 23rd, '06, 00:27
Bordering on Legend
Bordering on Legend
User avatar

Joined: Sep 27th, '06, 13:58
Posts: 360
Location: Bali Indonesia
Gender: Male
That looks nice and simple now it is just time to try it out and see if it "sucks" or not :D


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Dec 23rd, '06, 05:27
Xtreme Contributor
Xtreme Contributor
User avatar

Joined: Nov 3rd, '06, 15:21
Posts: 210
Location: Calgary, AB Canada
Gender: Male
Janet, I did the same thing to test my unit I built. It was exactly the same in design, and I fiddled around with many variations and dimensions.
I discovered that blowing air into it with your mouth and using a consitent flow from an air pump created very different results in the amount of water pumped and the height. My only thought was I needed a higher output airpump to create a more explosive effect.

I remain unconvinced that we have recreated the geyser pump with consistent results, though I do look forward to being proven wrong. :)


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Dec 23rd, '06, 17:18
Seriously, this cant be healthy.
Seriously, this cant be healthy.
User avatar

Joined: Aug 21st, '06, 16:07
Posts: 5323
Location: Brisbane
Gender: Male
Janet, blowing is not considered the AP way :twisted: - like your "plunger" tho, have something similar on the workbench (araldite in drying mode :lol: )

Now you've shown me yours - I will show you mine :evil4: (as soon as the glue sets :lol: )


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Dec 23rd, '06, 17:25
Bordering on Legend
Bordering on Legend
User avatar

Joined: Sep 27th, '06, 13:58
Posts: 360
Location: Bali Indonesia
Gender: Male
Oi This could get ugly!!!!!


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Dec 23rd, '06, 17:40
Bordering on Legend
Bordering on Legend
User avatar

Joined: Dec 21st, '06, 15:57
Posts: 486
Location: melbourne
Gender: Male
Does it lift sludge or solids? I'm going to see if I can implement simmo's venturi tomorrow and see if it will lift the watering wand off the bottom of my tank ;)


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Dec 23rd, '06, 17:55
Seriously, this cant be healthy.
Seriously, this cant be healthy.
User avatar

Joined: Aug 21st, '06, 16:07
Posts: 5323
Location: Brisbane
Gender: Male
Quote:
Does it lift sludge or solids?


Suppose it will depend on the weight, haven't got a clue actually - but will post the results after tests (AP style :roll: )


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Dec 23rd, '06, 22:19
A posting God
A posting God
User avatar

Joined: Nov 3rd, '06, 01:30
Posts: 3131
Location: Cochranville, Pennsylvania USA
Gender: Female
Are you human?: yes
Location: Pennsylvania, USA
OK, I tested with the unit as above with a real air pump. The water spurted about every 2-4 seconds, and came to just over the top of the riser. Flow was inconsistent; sometimes it was 2 seconds between spurts and sometimes it was 4. It may be that there were mini-spurts that didn't make it to the top of the riser. I have decided that there is too much space between the tops of the inner and outer bells, and maybe too much air volume for the depth that I'm working at. I cut the outer bell a bit shorter and have re-glued. I also want better height, so I cut the riser shorter so that it ends at the water's surface. I am going to attach a smaller diameter tube to continue the rise. So now we wait for the glue to dry.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Dec 24th, '06, 01:07
Almost divorced
Almost divorced

Joined: Nov 19th, '06, 09:22
Posts: 1109
Location: El Salvador
Gender: Male
C'mon you guys, get faster drying glue!


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Dec 24th, '06, 01:10
Almost divorced
Almost divorced

Joined: Nov 19th, '06, 09:22
Posts: 1109
Location: El Salvador
Gender: Male
Janet would it help to cut another opening on the outer bell? Maybe you're getting more air than water. Just a s thought.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Dec 24th, '06, 02:55
A posting God
A posting God
User avatar

Joined: Nov 3rd, '06, 01:30
Posts: 3131
Location: Cochranville, Pennsylvania USA
Gender: Female
Are you human?: yes
Location: Pennsylvania, USA
Hi DT,
I'll keep that idea in my bag of tricks. The changes I made should help re-balance the air/water ratio, too. We'll see how it goes.

Faster-drying glue...well, I have some, but epoxy is so tough to un-do if you're wrong. :D


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Dec 24th, '06, 07:03
Seriously, this cant be healthy.
Seriously, this cant be healthy.
User avatar

Joined: Aug 21st, '06, 16:07
Posts: 5323
Location: Brisbane
Gender: Male
Must test mine later on :lol:


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Dec 24th, '06, 11:45
Bordering on Legend
Bordering on Legend
User avatar

Joined: Dec 21st, '06, 15:57
Posts: 486
Location: melbourne
Gender: Male
Ok, the simmo(John Simmons, cricketer, farmer, inventor :) syphon works a treat. Total cost $1.1. I'm using a B-ings std issue caulking nozzle cut to about 4mm dia on the end, using about 3m of head through the nozzle (from main pump) pushed into a 19mm tee. The nozzle doesn't fit flush in the tee, but it does fit flush inside the 19mm pipe. I estimate that I'm getting 4L of tank for each 1L of nozzle (timing the filling of a bottle) with a huge reduction in head. But the tee could be put near the bottom of the tank (I used a long piece of 19mm with a gal elbow on the end for an intake) and would handle most solids. You might use the mains to drive the venturi (45m head). Fine tuning the nozzle diameter and sealing things better would no doubt improve efficiency.

If you instead run the tee with air you get a lovely foam, might be the basis of a tromp style air compressor or protein skimmer.

Am I only allowed three photos?


Attachments:

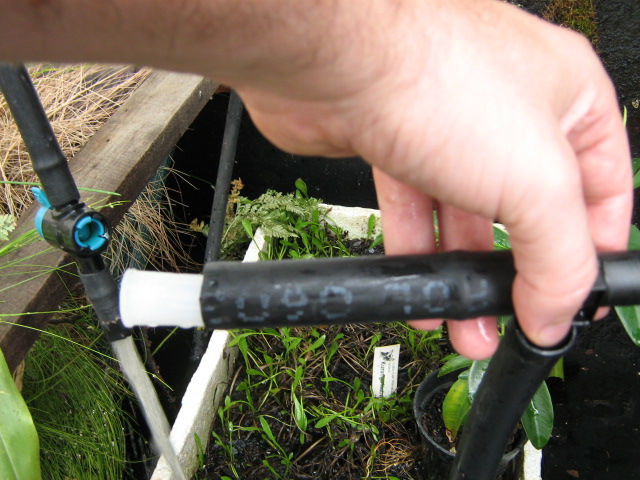

File comment: pushing nozzle in 19mm tube.
IMG_0491.JPG [ 129.38 KiB | Viewed 4272 times ]

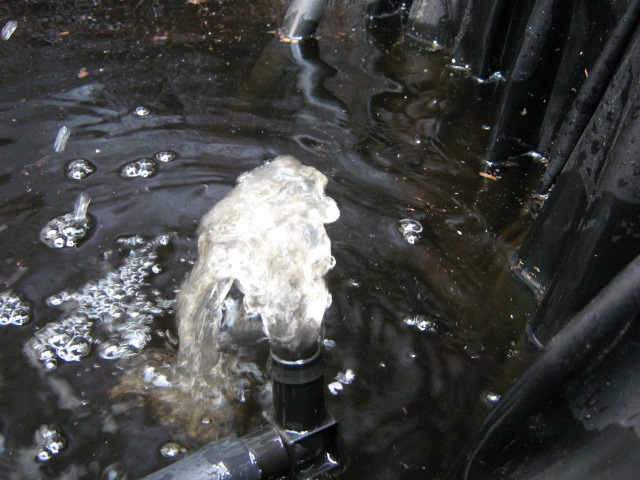

File comment: Sucking tank water.
IMG_0486.JPG [ 124.76 KiB | Viewed 4274 times ]

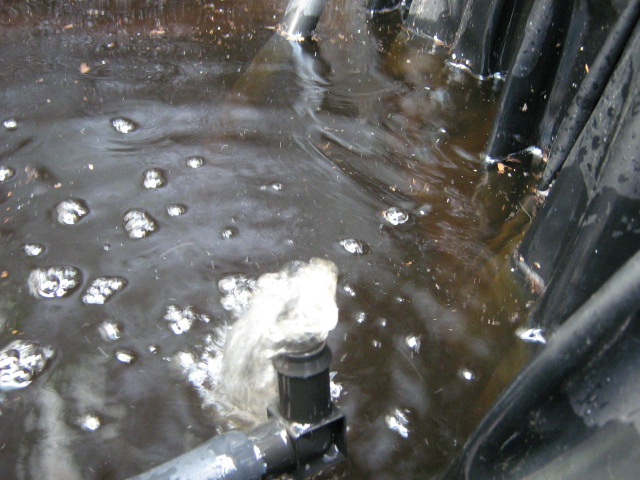

File comment: just the nozzle flow (put finger over inlet)
IMG_0485.JPG [ 121.78 KiB | Viewed 4271 times ]
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Dec 24th, '06, 18:16
Seriously, this cant be healthy.
Seriously, this cant be healthy.
User avatar

Joined: Aug 21st, '06, 16:07
Posts: 5323
Location: Brisbane
Gender: Male

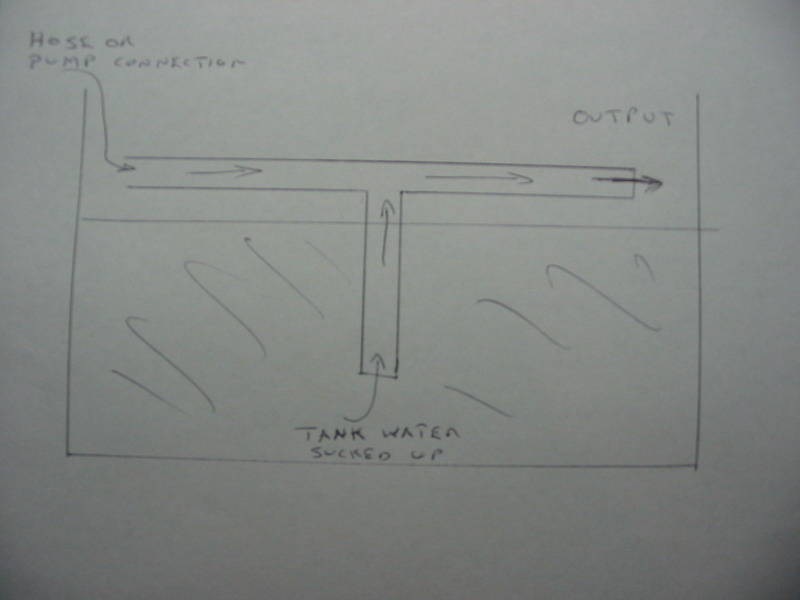

njh, I might be picturing what you are doing incorrectly, is this basically the setup?

ps been in pre-chrissie party mode and no testing done on mine as yet :wink:


Attachments:
File comment: Haven't used any pipe sizing
Simmo thing.jpg
Simmo thing.jpg [ 55.67 KiB | Viewed 4255 times ]
Top
 Profile
Reply with quote
