 Post subject:
PostPosted: Jan 31st, '08, 07:48
Xtreme Contributor
Xtreme Contributor

Joined: Sep 4th, '07, 09:31
Posts: 237
Location: Wollongong
Gender: Male
Amacafish, I would love to find out more on the injection method. thanks


Top
 Profile
Reply with quote
    Advertisement

 Post subject:
PostPosted: Feb 1st, '08, 05:09
Bordering on Legend
Bordering on Legend
User avatar

Joined: Jan 14th, '08, 17:42
Posts: 427
Location: La Rochelle
Gender: Male
Here are a few drawings for injection, put your questions up here and i'll answer them no problem.


Attachments:
File comment: This is a company's system that has found a way to be as efficient as jets plateform in gaz dissolution with less power
gds_cutaway.gif [ 42.88 KiB | Viewed 2639 times ]

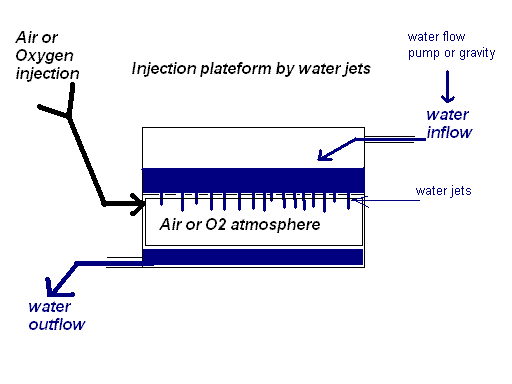

plateform à jets.GIF
plateform à jets.GIF [ 6.67 KiB | Viewed 2636 times ]

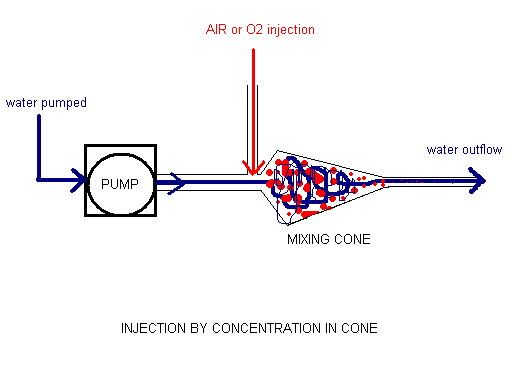

Cone.GIF [ 5.11 KiB | Viewed 2641 times ]
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Feb 1st, '08, 05:19
Xtreme Contributor
Xtreme Contributor

Joined: Sep 4th, '07, 09:31
Posts: 237
Location: Wollongong
Gender: Male
I think the cone would be the easiest method for me to try. thanks


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Feb 1st, '08, 05:43
Xtreme Contributor
Xtreme Contributor

Joined: Sep 4th, '07, 09:31
Posts: 237
Location: Wollongong
Gender: Male
Can someone give be a simple explanation (a drawing would be great) on how a venturi works. Perhpas I could add a venturi to my water return from my pump to increase aeration also? I had a look on google but I just want to be sure I understand. thanks


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Feb 1st, '08, 10:38
Legend Member
Legend Member
User avatar

Joined: May 28th, '07, 16:24
Posts: 667
Location: Adelaide
Gender: Male
Location: South Australia, AUS
Amaca,
in the first diagram, where does the air come in? At the eductor (#3)?


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Feb 1st, '08, 10:41
Legend Member
Legend Member
User avatar

Joined: May 28th, '07, 16:24
Posts: 667
Location: Adelaide
Gender: Male
Location: South Australia, AUS
Skygazer,
When water goes through a restriction, it speeds up and the water pressure drops. If the change in speed is enough, the pressure drop can produce suction. nice diagram here:
http://en.wikipedia.org/wiki/Venturi_effect


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Feb 1st, '08, 15:27
Bordering on Legend
Bordering on Legend
User avatar

Joined: Jan 14th, '08, 17:42
Posts: 427
Location: La Rochelle
Gender: Male
Yes Steem the air or nay gaz is injected on sucked in through the #3.
This is a very innovative thing that I found out on a environement show.
Maybe someone can adapt it here, I wouldn't mind seeing it working.
The cone is adaptable in all ways, some people put them vertical with the water falling down.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Feb 1st, '08, 17:00
Seriously, this cant be healthy.
Seriously, this cant be healthy.
User avatar

Joined: Oct 11th, '07, 19:43
Posts: 6687
Gender: Male
Are you human?: Not at 3 am :(
Location: Kalgoorlie
a 20w air pump will be way overkill ... just get a little 3w mouse air pump, would be heaps of air through a small airstone :)


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Feb 1st, '08, 18:20
Bordering on Legend
Bordering on Legend
User avatar

Joined: Jan 14th, '08, 17:42
Posts: 427
Location: La Rochelle
Gender: Male
Have you seen this product anywhere?
Does it work well?
http://cgi.ebay.com.au/New-Solar-Pond-A ... dZViewItem


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Feb 1st, '08, 19:23
Site Admin
Site Admin
User avatar

Joined: Mar 22nd, '06, 00:28
Posts: 12757
Location: Melbourne, Victoria
Gender: Male
Are you human?: YES- kinda
Location: Melb Vic OZ
Ama, most of these this either have their capabilities overstated or more prudently ELUDE to their non existant performance.....................

put it this way the pump runnig at my feet now is 6W at 4.5L per minute.........
unless they have designed some serious over unity motor then i'd assume that 0.6W will give you rougly 0.45L per minute................... not worth the postage :)


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Feb 1st, '08, 22:15
Bordering on Legend
Bordering on Legend
User avatar

Joined: Jan 14th, '08, 17:42
Posts: 427
Location: La Rochelle
Gender: Male
Crapy useless chinese plastic sticked together then!!!
Like so many things these days.
I can't understand that companies continue transporting from China and back to China for at the least 15 % of the brought product!!
Petrol musn't be expensive enough, or they are trying to heat the planet to get the arctic ice melt and have a shorter route for their boats!!
It was just that i found the concept pretty good, but i'll check for german gear next time.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Feb 1st, '08, 22:18
A posting God
A posting God
User avatar

Joined: Sep 4th, '07, 04:16
Posts: 2475
Location: Texas
Gender: Male
Are you human?: YES
Location: Texas 75703
I like to just run an air line, with a valve, into the intake of my pump. The blades in the pump suck air in and smash the bubbles into super fine bubbles. This is the same method used by protein skimmers except that they have a tall column of water and create a cyclone effect.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Feb 2nd, '08, 08:18
Site Admin
Site Admin
User avatar

Joined: Mar 22nd, '06, 00:28
Posts: 12757
Location: Melbourne, Victoria
Gender: Male
Are you human?: YES- kinda
Location: Melb Vic OZ
gottabe careful with that method dan, you'd be surprised the damage the bubble can to to the impellor after a while ;)

i used a cheap method of drilling a 1.5mm hole in dads bypass pipe from the pump, it sucks in air and shoots it under the water. would have been better if i made a venturi throat for it though. I made a few of these for joel when i was over, from memory i just used two reducers, so the pipe went from large to small and back to large again, drilled the hole slightly to the down side of the throat (something stuck in my mind from trade school about the area of max low pressure being created a certain way down stream) and WOW insta venturi.

just drilling a hole works fine, but is very tempremetal on water flow and stuff like even putting an elbow down stream can turn it froma venturi to water spray :)


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Feb 2nd, '08, 11:40
Xtreme Contributor
Xtreme Contributor

Joined: Sep 4th, '07, 09:31
Posts: 237
Location: Wollongong
Gender: Male
Quote:
a 20w air pump will be way overkill ... just get a little 3w mouse air pump, would be heaps of air through a small airstone


Outback. thats exactly what I have in there now. so I may leave it at that, perhaps get another 3W air pump to inject into the return from the sump


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Feb 2nd, '08, 11:45
Site Admin
Site Admin
User avatar

Joined: Mar 22nd, '06, 00:28
Posts: 12757
Location: Melbourne, Victoria
Gender: Male
Are you human?: YES- kinda
Location: Melb Vic OZ
Sorry for the OT but i gotta say, everytime i read this topic title i'm temped to add "fire, water, earth......captain planet" LOL

http://www.youtube.com/watch?v=vpXM9bj-WPU

http://en.wikipedia.org/wiki/Captain_Pl ... Planeteers

GO PLANET!

ROFL.
