PostPosted: Mar 12th, '17, 04:53
Xtreme Contributor
Xtreme Contributor

Joined: Apr 2nd, '07, 10:17
Posts: 147
Location: USDA 10a, Palm Springs, Calif.
Gender: Male
Are you human?: yes
Location: Palm Springs, California, USA

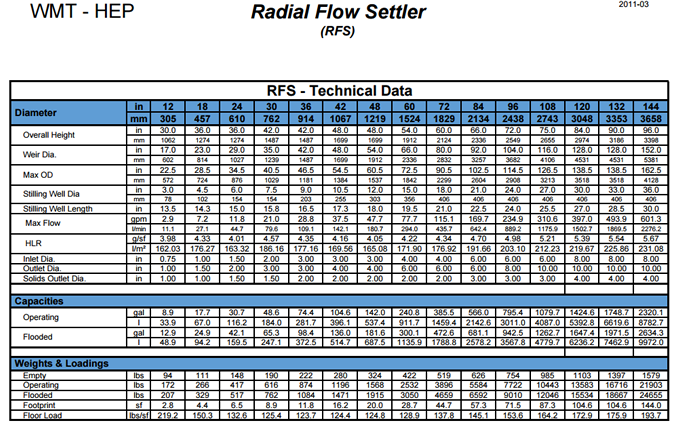

I found this online, some design data for commercial radial filter:

http://www.w-m-t.com/wmt-radial-flow-settler/#!
http://www.w-m-t.com/library/pdf/Radial ... asheet.pdf



It seems like inlet water pipe would be a size or two smaller than outlet pipe, the Radial bit about 1/5 the size of cone shape drum,



Mod: If this has been posted, please merge or delete, thanks.


Attachments:
radial data.png
radial data.png [ 510.3 KiB | Viewed 4682 times ]
Top
 Profile
Reply with quote
    Advertisement

PostPosted: Mar 12th, '17, 05:44
A posting God
A posting God

Joined: Nov 10th, '12, 09:27
Posts: 2667
Gender: Male
Are you human?: maybe
Location: Vic
hasnt been posted.
nice data.

now if only we could find an easy and cheap way to cone black / blue barrels.


Top
 Profile
Reply with quote
PostPosted: Mar 12th, '17, 05:48
Xtreme Contributor
Xtreme Contributor

Joined: Apr 2nd, '07, 10:17
Posts: 147
Location: USDA 10a, Palm Springs, Calif.
Gender: Male
Are you human?: yes
Location: Palm Springs, California, USA
http://www.w-m-t.com/wp-content/uploads ... epaper.pdf


Last edited by toffee on Mar 12th, '17, 06:42, edited 1 time in total.

Top
 Profile
Reply with quote
PostPosted: Mar 12th, '17, 06:10
Xtreme Contributor
Xtreme Contributor

Joined: Apr 2nd, '07, 10:17
Posts: 147
Location: USDA 10a, Palm Springs, Calif.
Gender: Male
Are you human?: yes
Location: Palm Springs, California, USA

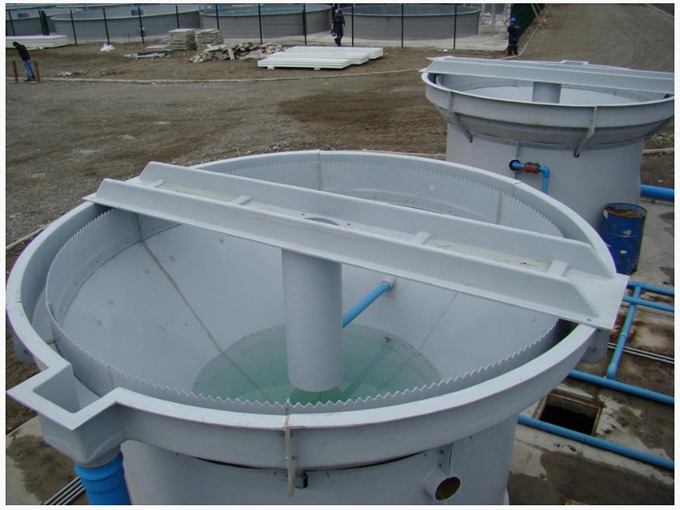

A picture of big boy in action.


Attachments:
Untitled-2.png [ 1.07 MiB | Viewed 4675 times ]
Top
 Profile
Reply with quote
PostPosted: Mar 13th, '17, 04:42
Xtreme Contributor
Xtreme Contributor

Joined: Dec 31st, '12, 23:21
Posts: 191
Gender: Male
Are you human?: UM..Maybe
Location: Lakeland, Fl
Yavimaya wrote:
hasnt been posted.
nice data.

now if only we could find an easy and cheap way to cone black / blue barrels.

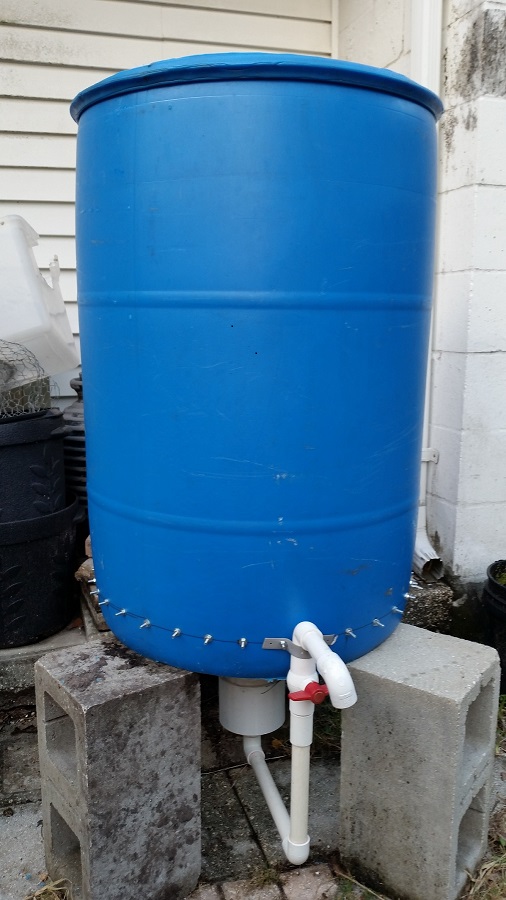

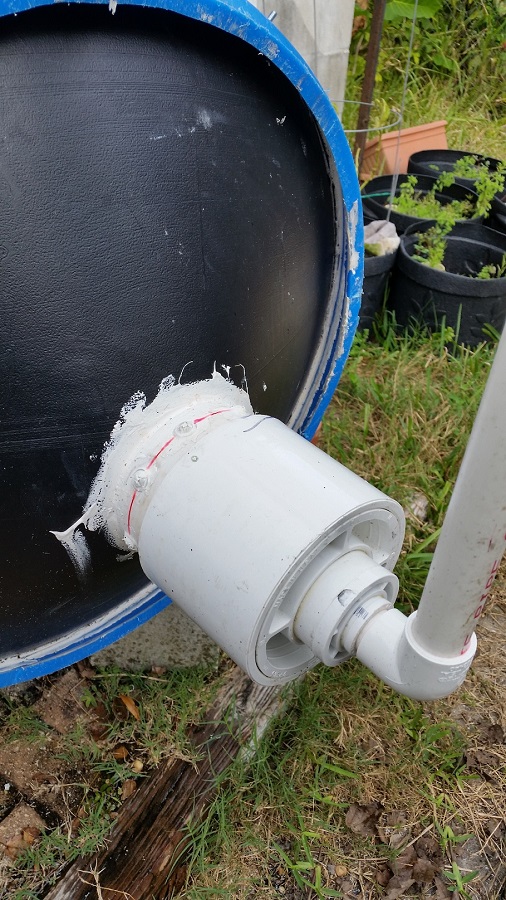

Depends on your definition of easy and cheap. I managed to put together what I was going to use as a vortex separator for US $40-45. Took a little planning, but it is doable.


Attachments:
20151205_165946.jpg [ 138.87 KiB | Viewed 4642 times ]
20151226_150812.jpg [ 234.23 KiB | Viewed 4642 times ]
Top
 Profile
Reply with quote
PostPosted: Mar 13th, '17, 04:59
Xtreme Contributor
Xtreme Contributor

Joined: Apr 2nd, '07, 10:17
Posts: 147
Location: USDA 10a, Palm Springs, Calif.
Gender: Male
Are you human?: yes
Location: Palm Springs, California, USA
I think there's a cheap way to duplicate the design:

1. Use a 5g water jug, cut off the bottom of the jug and fashion some sort of jagged edge.
2. Get a bigger water container.
3. hang that 5g water jug upside down, so jagged side facing up.
