'Demand Fish Feeder 14M2 ver 4 2011-11-08-2025
{
'----------------------------------------------------------------
'NO RIGHTS RESERVED
'----------------------------------------------------------------

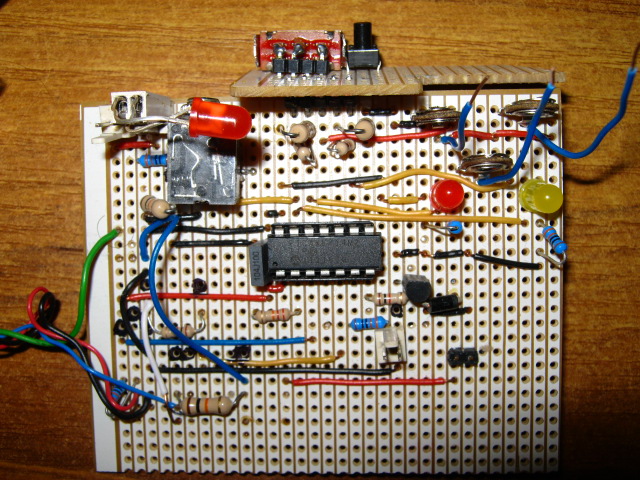

'This project is an open source demand fish feeder.
'All aspects of the project are open source, including software, and hardware (both
'electronics, and actual PVC delivery device) and are given freely to the world to do with as you wish.
'The fish recieve feed when certain conditions have been met.
'Features include....
'* Fish trigger a lever to get fed, but can only do so when a LED is lit indicating
'   to the fish that feed is avalible
'* Minimum delay between feeds calculated on ramainder of day and number of feeds
'   still availible for the day
'* User set maximum feeds per day (1 - 24)
'* User set feed size
'* The "Day" resets at dawn regardless of actual time so that fish run
'   on a natural cycle
'* LED's flash reports for...
'      Feeds so far today (External)
'      Feed size (Internal LED reports only when being adjusted)
'      Maximum feeds per day (Internal LED reports only when being adjusted)
'* "Feed now"button to override forced delay time so you can trigger the feeder at will
}
#NO_DATA
#PICAXE 14M2
#SIMTASK 1
'------------ Symbols ------------------------------------------
{
'Pins ----------------------------------------------------------
   Symbol Motor = c.0
   Symbol ReportFeedsTodayLED = c.1
   Symbol FishLever = PinC.2
   Symbol ModeButton = pinC.3
   Symbol FishLeverLED = c.4
   Symbol FeedNowButton = PinC.5

   Symbol FeedsPerDayLED = B.0
   'Symbol DawnPhotoresistor = B.1
   Symbol FeedSizeLED = B.2
   Symbol DawnPot = B.3
   Symbol FeedsPerDayPot = B.4
   Symbol FeedSizePot = B.5
'Constants------------------------------------------------------
   Symbol OneMinute = 2         'in seconds - for debug change from 60 (seconds) to 1
   Symbol DayLength = 1440          'in minutes
   Symbol LongReportPause= 1000      'recommend 15000 = 15 seconds between TodaysFeeds reports
   Symbol ShortReportPause = 1000
   symbol MaxModes = 4            'sets the number of modes the mode button cycles through

'---------------------------------------------------------------
'word variables--------------w1 and up -------------------------
   Symbol DayRemain = w1
   Symbol FeedWait = w2
   Symbol FeedSize = w3
   Symbol ReportPause = w4      'used in Start2

'----------------- do not overlap ---

   symbol i = b16            'as localised counter - reuse at will
   Symbol PotVariable = b17
   Symbol LED2Variable=b18      'used in Start2 to select LED to use for report
   Symbol LEDVariable =b19        'used in Start2 to select LED to use for report
   Symbol ReportVariable = b20       'used in Start2 To Select PotData to report
   Symbol FeedsRemain = b21
   Symbol FeedsPerDay = b22
   Symbol Counter2 = b23
   Symbol Counter1 = b24
   Symbol TodaysFeeds = b25
   Symbol LastFeed = b26
   Symbol CurrentMode = b27
'byte variables ^^^-^^^-^^^-- b27 and down ---------------------

'bytes b0 and b1 as flags -- bit 0 -----------------------------

   Symbol AdjustMode = bit0
   Symbol AllowFeed = bit1
   Symbol FeedNow = bit2

'--------------------------- to bit 15 -------------------------
'---------------------------------------------------------------
'===============================================================
}
'000000000000000000000000000000000000000000000000000000000000000000
'TODO: debug only delete at will--------------------------------
'Populate some variables  for debug only as these will be set with trim pots
   let FeedSize = 3
   let FeedsPerDay =255 'large number for testing only as I cant wait all day
'000000000000000000000000000000000000000000000000000000000000000000
'------------------------------------------------------------------
'
Main:'=============================================================
{
Do
   GoSub NewDayInit        'initialize everything required to reset for a new day
   GoSub OngoingChecks     'main program loop that checks everything continuously
Loop
end
}
'-- Main Subs -----------------------------------------------------
'------------------------------------------------------------------
   BootTest:      'Flash the lights at startup so you know something is happening
{
         'high ReportFeedsTodayLED
         'pause 300
         'low ReportFeedsTodayLED
      'return
}
'------------------------------------------------------------------
   NewDayInit:    'used at the beginning of each new day
{
      'let FeedNow = 1
      'let LeverLED = 1
      'if LeverLED = 1 then' TODO: not sure why this is needed but I was seeing some strange results
         'High FishLeverLED
      'endif
      'get each pot setting (check MaxModes value)
         'Gosub Mode1 ' not required as not a pot setting
         Gosub Mode2        'Feed Size
         Gosub Mode3   'Feeds Per Day
         Gosub Mode4   'Dawn
      let CurrentMode = 1
      let DayRemain = DayLength
      let FeedsRemain = FeedsPerDay
      let FeedWait = DayRemain / FeedsRemain
      let TodaysFeeds = 0'FeedsPerDay - FeedsRemain  ' for Start2 report feeds
      let time = feedwait 'set time to feed now
   return
}
'------------------------------------------------------------------
   OngoingChecks:   'main program loop that checks for unusual events continuously
{
      Do
         Gosub CreateMinutes: ':TODO
            #rem

            'I wonder if this should be based, rather than on minutes, on a day devided by the number of feeds.
            'this way we reduce the errors gained each time we say ...

            if Time > 60 then
               OurMinutes = OurMinutes + 1
            end if

            this could lose up to .99 of a second each time it runs. It would probably average out, but it might be better to do...

            if Time > DayInMinutes / FeedsPerDay then
               Our Minutes = something or another

            just a thought, but as I'm thinking it I worried about what it would do when someone changed the number of feeds per day
            halfway through a day. And worried about what pressing the FeedNow button might do.

            I think all that worry means we need a concrete way of measuring time. Perhaps we could use 5 or 10 minute segments to cut down
            on errors, or perhaps we should just run it and see if it averages out to a reasonable error over 24 hours.


            #endrem

      'TODO: fix this bit
         'Gosub CheckForDawn ' 'TODO  get those electronics working and work out some code to read the light levels

               'GoSub NewDayInit ' perhaps this should be in the CheckForDawn Gosub???????
            'loop
         'check for button press - give them an extra feed override
         Gosub CheckForFeedNowButton
            Let FeedNow = 1  'TODO : check to see if FeedNow is actually used properly, and check to see if this line would be over-ridden
      Loop
      return 'only seen at dawn to bail out and go back to main for a new day init

}
'------------------------------------------------------------------
CreateMinutes:
   'code for taking Time, and turning it into minutes must be run at least every second

Return
'------------------------------------------------------------------
CheckForFeedNowButton:
{
   if FeedNowButton = 1 then
      Gosub WaitForFeedNowButtonRelease
   endif
return
}
''------------------------------------------------------------------
WaitForFeedNowButtonRelease:
{
         high b.1
         high b.2
         High b.4

         Do while  FeedNowButton = 1 :Loop

         low b.1
         low b.2
         low b.4

return
}
'============== End Main ==========================================
'
Start1:'======= check for feed status==============================
{
Pause 1000 'for Init
Do
   let LastFeed = time/OneMinute   'calculate  and store the number of minutes since last feed
   if FeedsRemain = 0 then
      goto Start1       ' bail out of the loop if they cant have any more feeds
   endif
   if LastFeed  < FeedWait then
      goto Start1       ' bail out of the loop if time isnt up
   endif
   let feednow = 1
   if FeedNow = 1 then
      high FishLeverLED
      Gosub CheckForLeverPress 'fish are not allowed to feed
   end if
Loop
}
'-- Start1 Subs ---------------------------------------------------
   CheckForLeverPress:
{   Do
      Do Until FishLever = 1 :Loop
      GoSub WaitForFishLeverRelease
      GoSub NewFeedPeriodInit
      GoSub Feed
      return
   Loop
}
'------------------------------------------------------------------
      WaitForFishLeverRelease:
{
         high b.1
         high b.2
         High b.4

         Do while  FishLever = 1 :Loop

         low b.1
         low b.2
         low b.4

      return
}
'------------------------------------------------------------------
      NewFeedPeriodInit:   'Used after each feed
{
         let FeedsRemain = FeedsRemain - 1
         let FeedWait = DayRemain/FeedsRemain
         let FeedNow = 0 ' dont feed the greedy things just yet
         let TodaysFeeds = TodaysFeeds + 1  ' for Start2 report feeds
         low FishLeverLED   '0 switch off the lever LED
         let time =0'reset time to reset minutes since last feed
      return
}
'------------------------------------------------------------------
      Feed:'      Delivers feed
{
         High Motor 'PWMOUT
         Pause FeedSize
         Low Motor
      Return
}
'
'============= End Start1 =========================================
'
Start2:'=== LED reports and end mode switching to adjust pots =====
{   'TODO: get rid of the gotos

Let CurrentMode = 1
do
   Gosub GetCurrentModeData
   if ModeButton = 1 then          'increment to next mode
      gosub WaitForModeButtonRelease
      gosub GetCurrentModeData
   endif
   pause ReportPause 'pause for the desired time between each report
   if ReportVariable = 0 then
      goto FlashZero

   endif
   Counter2 = ReportVariable/10          'isolate tens
   for Counter1 =1 to Counter2           'flash tens
      if Counter2=0 then
         goto  Remainder
         exit
      end if
      high LEDVariable
      high LED2Variable   'LED on
      pause 800
      low LEDVariable
      low LED2Variable    'LED off
      pause 40
      high LEDVariable
      high LED2Variable
      pause 40
      low LEDVariable
      low LED2Variable
      Pause 780
   next Counter1

   Remainder:
   Counter2 =ReportVariable//10          'isolate remainder
   for Counter1 =1 to Counter2           'flash units
      if Counter2=0 then
         goto FlashZero
      end if
      high LEDVariable
      high LED2Variable
      pause 200
      low LEDVariable
      low LED2Variable
      pause 200
   next Counter1

   FlashZero:
   high LEDVariable
   high LED2Variable
   pause 40
   low LEDVariable
   low LED2Variable
loop
}
'-- Start2 Subs ---------------------------------------------------
   GetCurrentModeData:
{
       if CurrentMode = 1 then
          gosub Mode1
      end if

      if CurrentMode = 2 then
         gosub Mode2
      end if

      if CurrentMode = 3 then
         gosub Mode3
      end if

      if CurrentMode = 4 then
         gosub Mode4
      endif

      if CurrentMode > MaxModes then  'if you have run out of modes
         let CurrentMode = 1       'go back to the first mode
      end if
return
'------------------------------------------------------------------
'Mode# code
{
Mode1:

         let ReportVariable = TodaysFeeds
         let LEDVariable = ReportFeedsTodayLED
         let LED2Variable = ReportFeedsTodayLED
         let ReportPause = LongReportPause

Return
'------------------------------------------------------------------
Mode2:
         Readadc FeedSizePot,ReportVariable    'poll a number between 0 and 255 from the pot and store it in ReportVariable
         ReportVariable = ReportVariable / 5         'give it a human scale to chunk it into noticable differences
         let LEDVariable = FeedSizeLED          'set the LED to use
         let LED2Variable = FeedSizeLED        'Dawn requires 2 LED's so code expects a 2nd LED. In this case its just the same as the first
         let ReportPause = ShortReportPause       'chooses the time it should wait between each flashing out of the value.

return

'------------------------------------------------------------------
Mode3:
         Readadc FeedsPerDayPot, ReportVariable
          ReportVariable = ReportVariable / 20
         LEDVariable = FeedsPerDayLED
         LED2Variable = FeedsPerDayLED
         ReportPause = ShortReportPause
return

'------------------------------------------------------------------
Mode4:
         Readadc DawnPot, ReportVariable
         ReportVariable = ReportVariable / 5
         LEDVariable = FeedSizeLED
         LED2Variable = FeedsPerDayLED
         ReportPause = ShortReportPause
return
}
'------------------------------------------------------------------
   WaitForModeButtonRelease:
{
      CurrentMode = CurrentMode + 1  'increment to next mode
      high b.1
      high b.2
      high b.4
      Do Until ModeButton = 0 :Loop
      low b.1
      low b.2
      low b.4
   return
}
'
'==============End Start2 =========================================
'
'--------------NOTES ONLY -------------------------------

{

'TODO: change all notifications to single bit based flags

'TODO: check to see if double allow is just because there are the same number of feeds as minutes
'TODO: I've doubled up on the variables and methods for defining remaining feeds
'I think IsFeedOK also doubles up on some stuff
'TODO:in NewDayInit DayRemain isnt refreshed in any way
'TODO: work something out to counter switch bounce if required
}
