 Post subject: The Chicken Chopper
PostPosted: Oct 18th, '08, 05:48
Moderator
Moderator
User avatar

Joined: Mar 18th, '06, 09:41
Posts: 9072
Location: Brisbane
Gender: Male
Are you human?: YES
Location: Brisbane
Do windscreen wiper motors automatically change direction as they are switched on and off - or is that doen by reversing the polarity and by using some sort of component that is additional to the motor?

Also - does anybody know - does repco, supercheap and those sorts of places sell them?


Top
 Profile
Reply with quote
    Advertisement

PostPosted: Oct 18th, '08, 07:03
Site Admin
Site Admin
User avatar

Joined: Mar 22nd, '06, 00:28
Posts: 12757
Location: Melbourne, Victoria
Gender: Male
Are you human?: YES- kinda
Location: Melb Vic OZ
am almost certain that they use limit switches inside the motor assembly. hence why the plug will have 4 or 5 wires.

sorry vb, i know that you want a short answer, so "NO". look for a OEM replacement


Top
 Profile
Reply with quote
PostPosted: Oct 18th, '08, 07:33
Bordering on Legend
Bordering on Legend
User avatar

Joined: Feb 19th, '08, 14:00
Posts: 409
Location: Wide Bay, QLD
Gender: Male
Component additional to the motor +1

I use one for a rotisserie on my BBQ (mainly to roast coffee beens...), runs in only one direction from a 1A transformer.


Top
 Profile
Reply with quote
PostPosted: Oct 18th, '08, 07:34
Bordering on Legend
Bordering on Legend
User avatar

Joined: Feb 19th, '08, 14:00
Posts: 409
Location: Wide Bay, QLD
Gender: Male
Got my from the wreckers...


Top
 Profile
Reply with quote
PostPosted: Oct 18th, '08, 08:31
Site Admin
Site Admin
User avatar

Joined: Mar 22nd, '06, 00:28
Posts: 12757
Location: Melbourne, Victoria
Gender: Male
Are you human?: YES- kinda
Location: Melb Vic OZ
myles, but you're only using two of the 4 or five wires. I'm fairly sure you'll find that if you run two of the other pins inn series you will get the back and forward.


Top
 Profile
Reply with quote
PostPosted: Oct 18th, '08, 08:40
Site Admin
Site Admin
User avatar

Joined: Mar 22nd, '06, 00:28
Posts: 12757
Location: Melbourne, Victoria
Gender: Male
Are you human?: YES- kinda
Location: Melb Vic OZ
I stand corrected.
http://auto.howstuffworks.com/wiper1.htm

the extra two pins are used to "park" the wipers, power is constantly supplied (with ignition on) to one of these pins and will be fed though the closed contacts until they reach the "parked" position where they will open can cut power.

http://www.scary-terry.com/wipmtr/wipmtr2.htm

so, no extra device and no internal device, simple linkages.

what is your exact problem VB, so i can give a diagnosis ;)


Top
 Profile
Reply with quote
PostPosted: Oct 18th, '08, 09:39
Quote:
what is your exact problem VB, so i can give a diagnosis


Well this could run to 20 pages+ and a couple of months easy... better call in KEII to help Steve.... :lol:


Top

Reply with quote
PostPosted: Oct 18th, '08, 10:16
Moderator
Moderator
User avatar

Joined: Mar 18th, '06, 09:41
Posts: 9072
Location: Brisbane
Gender: Male
Are you human?: YES
Location: Brisbane
I'm going to get chooks again in December - will finish my chook pen renovation in the meantime.

I wanted to get an automatic chook door www.chicken-house.co.uk/aup/index.htm , because I'm always forgetting to put the chooks to bed (ie close the door before dark to keep the foxes out and before morning to keep the chooks in). The thing was always going to be expensive, but the recent slide in the $A makes it ridiculous and so I won't be getting one and instead will look at rigging up my own. Other than the door and guide - which I would have made myself anyway - all I figure I need is a 12 volt moror with limit switch inbuilt (or if not inbuilt - a magnetic switch that I can put on the door and frame), a 12 volt timer, a 12 volt photoelectric swith and a battery. Hence my questions about the wiper motors - I'm sure the brains here will be very useful in assisting me to do this :-)


Top
 Profile
Reply with quote
PostPosted: Oct 18th, '08, 10:17
Moderator
Moderator
User avatar

Joined: Mar 18th, '06, 09:41
Posts: 9072
Location: Brisbane
Gender: Male
Are you human?: YES
Location: Brisbane
BTW - I have a photoelectric switch - but it is 240V :-(. I'm sure they'd come in 12volt though - cos they'de be used in solar powered lights and shit wouldn't they.

All the parts would have to be super reliable though - or bye, bye chookies.

I have foxes and wild dogs around here at night.


Top
 Profile
Reply with quote
PostPosted: Oct 18th, '08, 11:59
Bordering on Legend
Bordering on Legend
User avatar

Joined: Feb 19th, '08, 14:00
Posts: 409
Location: Wide Bay, QLD
Gender: Male

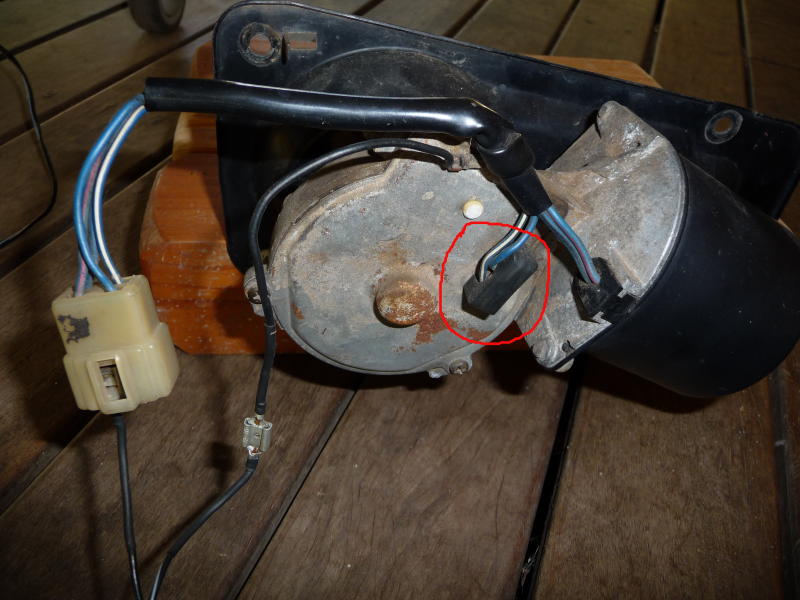

Your 100% correcto Steve. Park switches of some sort in the 2nd part - red ring. Only use ground and one connection to run it - one of the other connections changes speed by about 1/2 for this particular one - no clue what it came off of...
Attachment:
File comment: Wipers
Wiper.jpg [ 81.87 KiB | Viewed 3812 times ]


Top
 Profile
Reply with quote
PostPosted: Oct 18th, '08, 13:13
Seriously, this cant be healthy.
Seriously, this cant be healthy.
User avatar

Joined: Aug 24th, '06, 19:46
Posts: 6604
Location: sunbury
Gender: Male
Are you human?: no
Location: sunbury
veggie boy wrote:
I'm going to get chooks again in December - will finish my chook pen renovation in the meantime.

I wanted to get an automatic chook door http://www.chicken-house.co.uk/aup/index.htm , because I'm always forgetting to put the chooks to bed (ie close the door before dark to keep the foxes out and before morning to keep the chooks in). The thing was always going to be expensive, but the recent slide in the $A makes it ridiculous and so I won't be getting one and instead will look at rigging up my own. Other than the door and guide - which I would have made myself anyway - all I figure I need is a 12 volt moror with limit switch inbuilt (or if not inbuilt - a magnetic switch that I can put on the door and frame), a 12 volt timer, a 12 volt photoelectric swith and a battery. Hence my questions about the wiper motors - I'm sure the brains here will be very useful in assisting me to do this :-)

Ha Ha Ha i will put you in touch with my mate he built one and one weekend he had visitors and they all were out next morning to see the chook door open it opened on time the first thing that walked out was a fox [and no chooks]


Top
 Profile
Reply with quote
PostPosted: Oct 18th, '08, 13:19
A posting God
A posting God
User avatar

Joined: Jul 1st, '08, 11:03
Posts: 3690
Gender: None specified
Location: Australia NSW
:laughing3: :laughing6: :laughing3: Was thinking the same thing when I read it.


Top
 Profile
Reply with quote
PostPosted: Oct 18th, '08, 19:56
Almost divorced
Almost divorced

Joined: Dec 9th, '06, 20:31
Posts: 1079
Location: Drongen, Belgium
Gender: Male
Location: Drongen, Belgium
veggie boy wrote:
I wanted to get an automatic chook door

easiest to scrounge are car window motors with limit switches and all
find an appropriate car wreck (i.e. a monovolume), empty it of everything except the window motors and the battery
throw some straw in it, add a ladder to one of the windows
and you have the perfect chicken pen :geek: :geek: :geek:
no modifications necessary
leave the wheels on and you can move it to where you want it
retrieve the eggs through the motor hood

I would use the wiper motor to build a piston pump

frank


Top
 Profile
Reply with quote
PostPosted: Oct 18th, '08, 20:50
Xtreme Contributor
Xtreme Contributor

Joined: Jun 2nd, '07, 20:19
Posts: 215
Location: North of Adelaide S. Australia
Gender: Male
Hi VB, I have chooks and ducks, and I have the chookyard fenced and covered with birdnetting (keeps the birds of my apple trees). My neighbour had 8 ducks killed by a fox. Another had 6 chooks killed by a fox - while his Dalmation
was sleeping nearby!
I have also been thinking about an automatic door as well - I reckon use a retractabel car antenna either s/h or new.
I found one priced @ $74 and the same one in another store $48. Has limit switches (not operated by radio switch)
Disconnect the s/s antenna - you get about 1 mt (or so) of flexible plastic (strip) with a bit of tweaking you can set the limit switches distance you need for your door up or down or left - right. Attach your door - set your timer - should be up and running in no time :wink:
heka


Top
 Profile
Reply with quote
PostPosted: Oct 19th, '08, 11:51
Moderator
Moderator
User avatar

Joined: Mar 18th, '06, 09:41
Posts: 9072
Location: Brisbane
Gender: Male
Are you human?: YES
Location: Brisbane
Heka - that's a good idea, regarding the electric antenna, but I wonder whether it would be robust enough. Pretty small motor I'd expect. Given the value of the chooks, this is one thing I'm inclined to overengineer.

I'm still keen on the idea of using a windscreen wiper motor, so just need to work out how to work the switching so it will work to open and close the door.

I was thinking that I would use this sort of thing (2 sets - one set at top and one set at bottom) to switch power off when door reaches its open position or closed position http://www.jaycar.com.au/productView.as ... &SUBCATID=

I would then use a timer and/or twilight switch like this to turn the power on when I want the door to open or close http://www.jaycar.com.au/productView.as ... &SUBCATID=

It would seem that if I were to use a wiper motor, I'd also need to have a switch to change the direction of the motor so it would both open and close. Garage door openers have this sort of thing I supose.

The other option would be to engineer it so that the door will somehow open and close by using the motor going in the same direction for both. Similar to the setup for the wipers in Steve's first link I guess.
