Hi All. I am new to AP and i am about to build a system that i hope will work. I have read up and i hope i have got it right. I have attached a copy of the system i am going to build. I hope someone can let me know if i am on the right track.
Any help will be great. Thanks.

welcome to the forum

I cant see any attachment sorry?

Sorry need help on how to attach file. Thanks

Still Trying to attach that file.

MY Mistake pdf files not allowed.

Welcome, scan and save as a jpeg will be ok. No bigger than 800 x 800 I believe. Cheers

screenshot and edit in paint works for me
looking forward to seeing your ideas

Thanks for the help.

last try for the night

I am just a slowwww learner

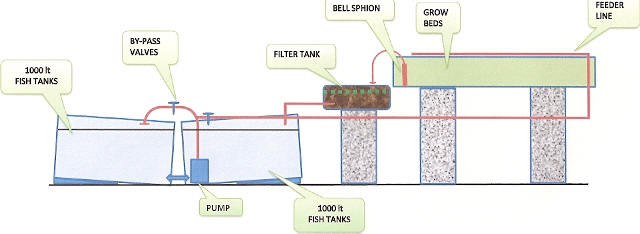

What's the purpose of the filter tank positioned after the GB? You've got 2000L of FT, but how much of GB?

I'm not a fan of connecting tanks at the bottom, I'd be preferring to interconnect the two FTs by usin a SLO.

Unless you plan on doing something special with the solids, I would just ditch the extra filter, and use that space for more growbed. They are effective at filtering out the solids. Also, I would look into Affnan siphons over bell. Most of the anti siphon crowd stopped using them before our Malaysan friend invented the improvement.

Thank you for the tips. I will use the ideas you have all given and i will look into the other systems you have mentioned. Thank you.

I'm in with the in crowd....

Where would i find to have a look at a Affnan Sphion??????
