RupertofOZ
PostPosted: May 22nd, '11, 18:45

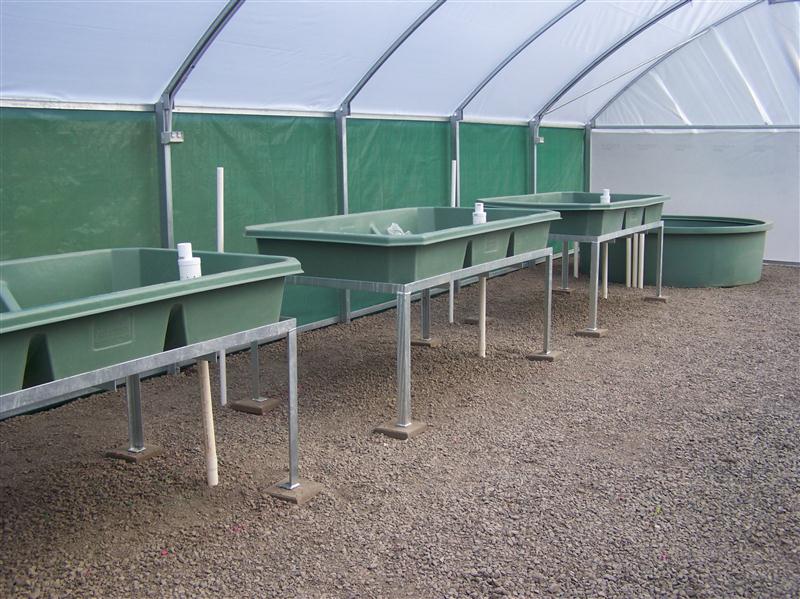

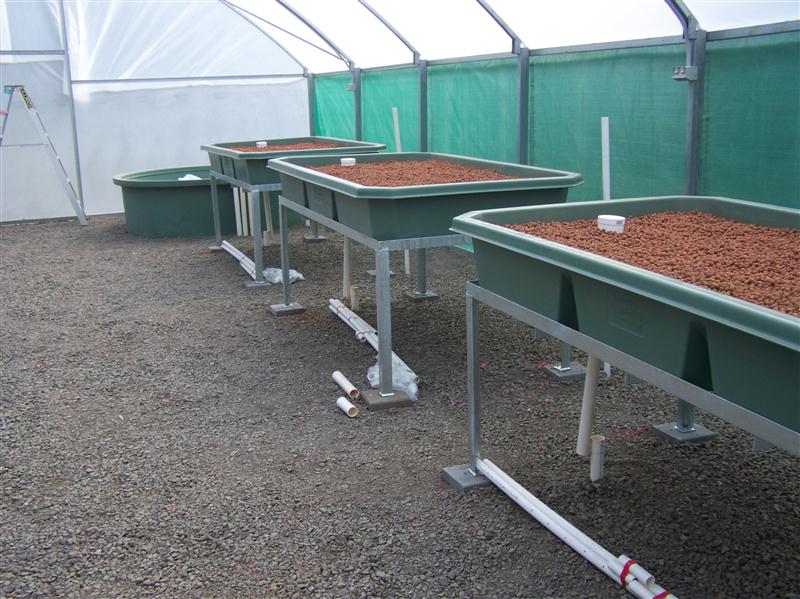

More delays waiting on the hydroton supply... and transport difficulties.... but near complete...

Attachment:
100_6260 (Custom).JPG
100_6260 (Custom).JPG [ 110.03 KiB | Viewed 13840 times ]


Attachment:
100_6261 (Custom).JPG
100_6261 (Custom).JPG [ 110.32 KiB | Viewed 13837 times ]


(Second row actually has the clay balls in now)

Attachment:
100_6262 (Custom).JPG
100_6262 (Custom).JPG [ 102.93 KiB | Viewed 13838 times ]


Top

Reply with quote
    Advertisement

RupertofOZ
PostPosted: May 22nd, '11, 18:46
Just need to plumb the grow bed supplies, and tank pumps in....

Hopefully the "sparkie" will return this week... and connect the power... :roll:
Top

Reply with quote
Food&Fish
PostPosted: May 22nd, '11, 22:41
Seriously, this cant be healthy.
Seriously, this cant be healthy.
User avatar

Joined: Aug 24th, '06, 19:46
Posts: 6604
Location: sunbury
Gender: Male
Are you human?: no
Location: sunbury
RupertofOZ wrote:
Then of course it rained on and off for the rest of the week...

Finally got a break on Saturday... and poured the post hole footings...

Attachment:
100_6113 (Custom).JPG


And went up today.. and stripped the bracing off... ready to start putting up the arches on Monday...

And of course... it started bloody raining... again... :roll:

Attachment:
100_6117 (Custom).JPG


Attachment:
100_6118 (Custom).JPG

Hate to mention those roof archers are going the wrong way the should be up :think:
Top
 Profile
Reply with quote
RupertofOZ
PostPosted: May 27th, '11, 16:31
Sparkie connected the power today... curtain winders on... just a matter of filling up the tanks...

Peter, the client, can certainly be considered a dedicated AP'er... he's already initiated an expansion to the system... before it's even turned on.... :D :laughing3:

Spotted an unused blue tub a while back, and thought.. humm.. that'd make a good fingerling/hospital tank...

Then, the other day... the gardener emptied out an overgrown plant bed... and I thought... humm.. that'd make a good grow bed for the fingerling/hospital tank...

The farm manager had already talked about putting some dwarf fruit trees down the middle of the greenhouse... and so the idea was born...

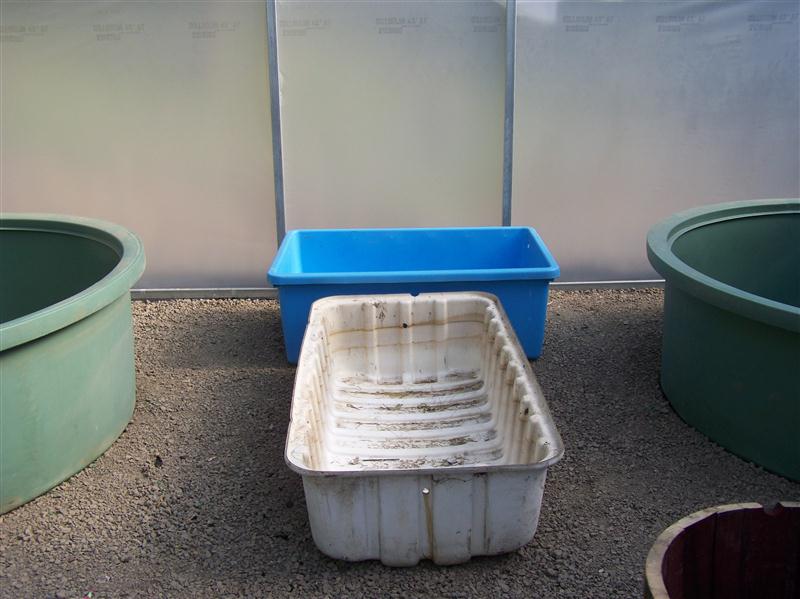

Tank and grow bed.... down the end of the greenhouse...

Attachment:
100_6281 (Custom).JPG
100_6281 (Custom).JPG [ 74.14 KiB | Viewed 13755 times ]

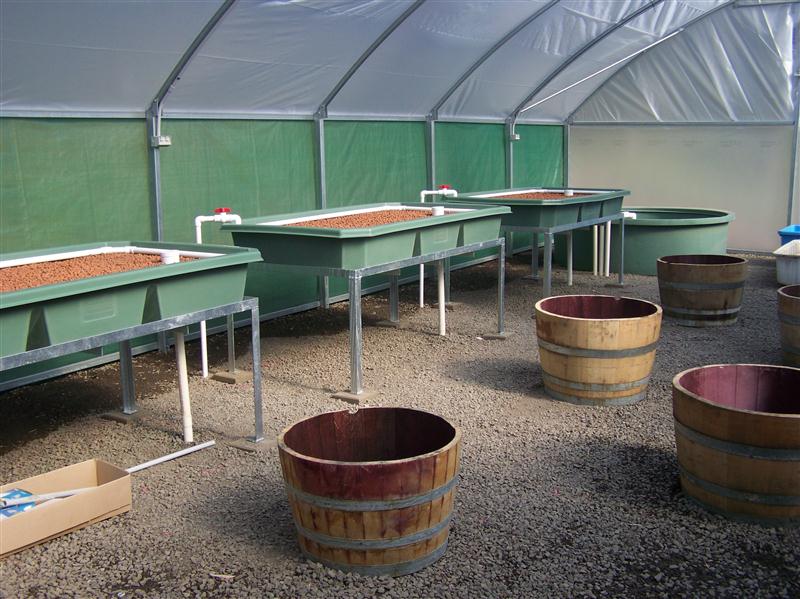

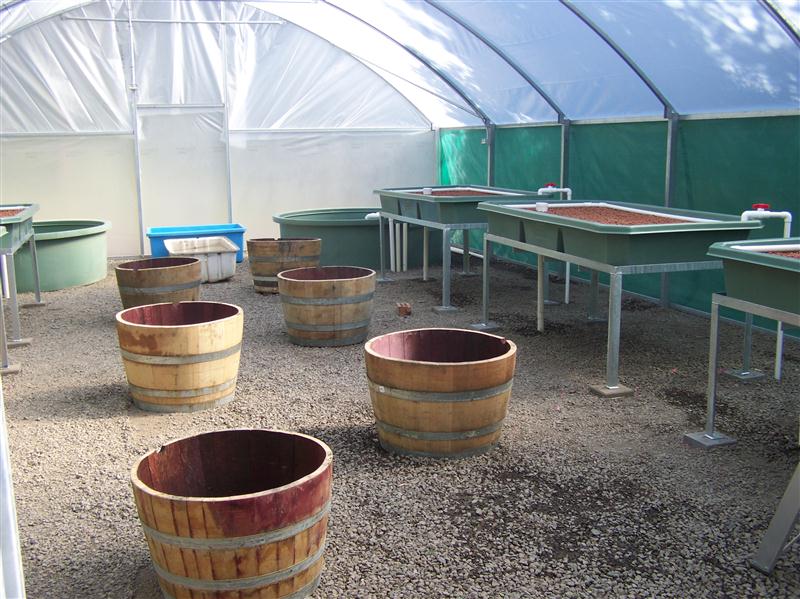

And a staggered row of half wine barrels down the middle...

Attachment:
100_6280 (Custom).JPG
100_6280 (Custom).JPG [ 106.78 KiB | Viewed 13755 times ]


Attachment:
100_6279 (Custom).JPG
100_6279 (Custom).JPG [ 113.77 KiB | Viewed 13753 times ]


Top

Reply with quote
RupertofOZ
PostPosted: May 27th, '11, 16:33

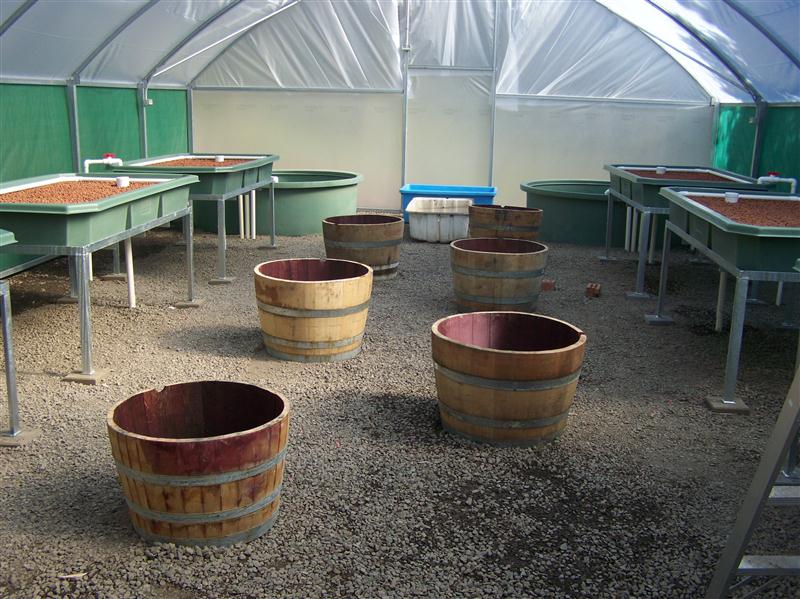

And there but a bit of plumbing... is another little system... :wink:

Attachment:
100_6278 (Custom).JPG
100_6278 (Custom).JPG [ 115.94 KiB | Viewed 13758 times ]


I should point out that Peter has previously had an aquaponics system while living in Singapore
Top

Reply with quote
Zman
PostPosted: May 27th, '11, 17:41
Almost divorced
Almost divorced

Joined: May 28th, '10, 07:02
Posts: 1390
Gender: Male
Are you human?: YES
Location: Syd
Hey John, how are you going to plumb in the win barrels?
Top
 Profile
Reply with quote
Charlie
PostPosted: May 27th, '11, 17:49
Moderator
Moderator
User avatar

Joined: May 6th, '11, 12:06
Posts: 12206
Gender: Male
Location: Northern NSW
Beautiful!! Seems like a big tent for just six GB's thou...
Top
 Profile
Reply with quote
faye
PostPosted: May 27th, '11, 18:07
Moderator
Moderator
User avatar

Joined: Jan 11th, '07, 14:20
Posts: 6449
Location: Perth
Gender: Female
Location: Jandakot
Looks so neat, bet they can't wait to get it planted and get the fish in.
Well done Rupe :thumbleft:
Top
 Profile
Reply with quote
hazno shadow
PostPosted: May 27th, '11, 22:35
Valued Contributor
Valued Contributor

Joined: Apr 17th, '09, 13:31
Posts: 54
Gender: Male
Are you human?: no
Location: Newcastle Australia
Your always talking about grow beds and fish Rup?! I want to know why i was not invited to help drink the wine :naughty:
Top
 Profile
Reply with quote
RupertofOZ
PostPosted: May 27th, '11, 22:37
Zman wrote:
Hey John, how are you going to plumb in the win barrels?


The grow bed will be raised and partially positioned over the tank to drain back via a standard overflow standpipe (timer based)....

You can see that the grow bed has a couple of small holes in each end...

Attachment:
100_6281 (Custom).JPG
100_6281 (Custom).JPG [ 74.14 KiB | Viewed 13696 times ]


One end will be plugged.. the other will have a 19/13mm reducer fitted into it....

From that we'll just run a 13mm tube spine between the barrels and tee off into each barrel...

Each timer cycle will deliver a small amount of water during the full flood stage...

We'll fit a small valve to control or shut off the flow... depending on season, heat, evaporation and/or moisture of the barrels... the barrels will drain to waste any excess water...

The hole in the blue tank is being fitted with a float valve to automatically top up as required...
Top

Reply with quote
RupertofOZ
PostPosted: May 27th, '11, 22:38
hazno shadow wrote:
Your always talking about grow beds and fish Rup?! I want to know why i was not invited to help drink the wine :naughty:


You would have had to tread the grapes first Hazno.... :D
Top

Reply with quote
RupertofOZ
PostPosted: Jun 2nd, '11, 15:46

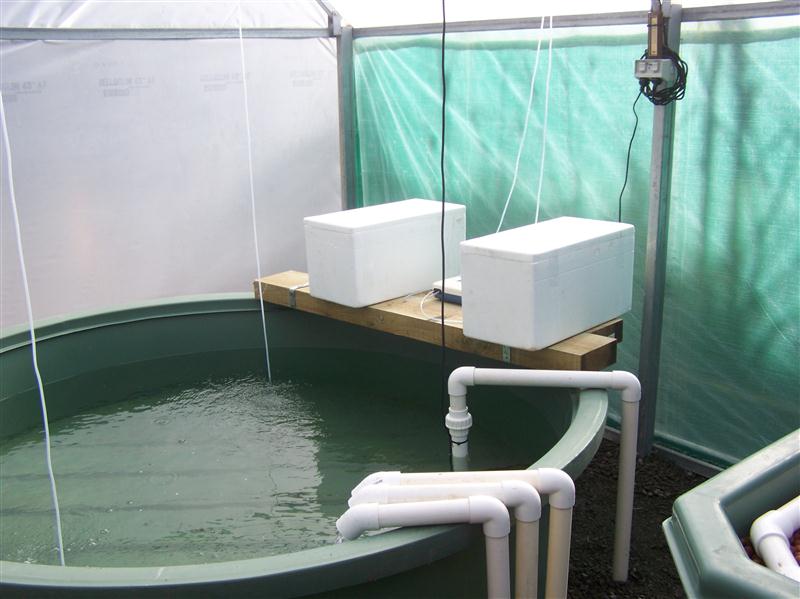

System(s) already for fish....

Attachment:
100_6288 (Custom).JPG
100_6288 (Custom).JPG [ 69.8 KiB | Viewed 13627 times ]


Attachment:

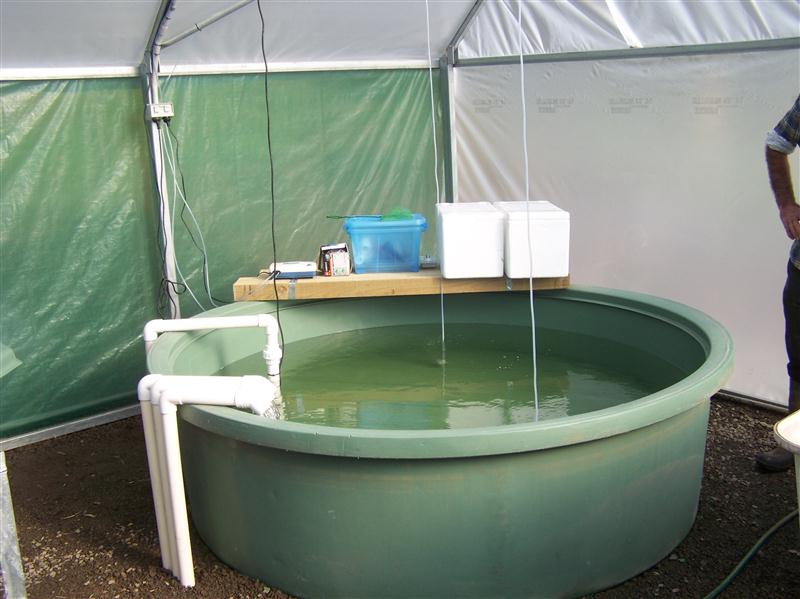

100_6289 (Custom).JPG
100_6289 (Custom).JPG [ 72.85 KiB | Viewed 13627 times ]


Attachment:
100_6290 (Custom).JPG
100_6290 (Custom).JPG [ 147.54 KiB | Viewed 13626 times ]


Top

Reply with quote
RupertofOZ
PostPosted: Jun 2nd, '11, 15:48

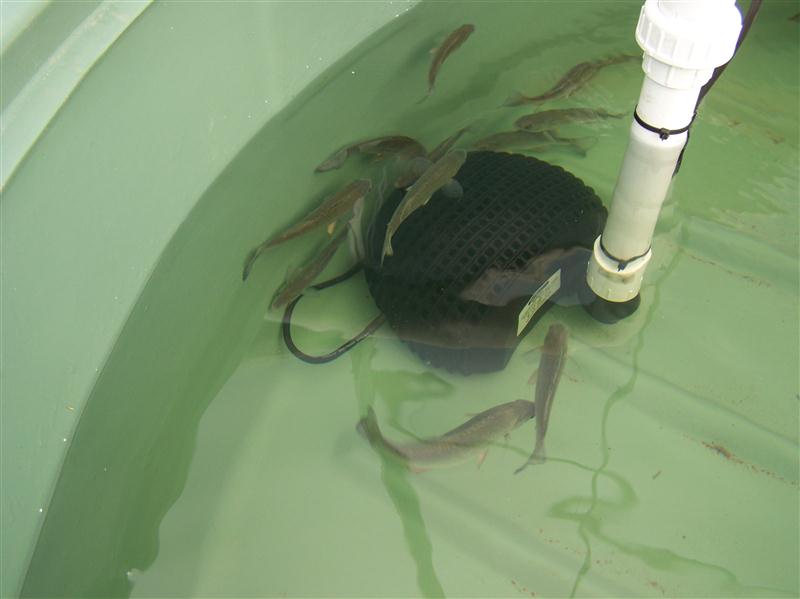

Stocked 25 x Silver Perch into each tank today....

Attachment:
100_6296 (Custom).JPG
100_6296 (Custom).JPG [ 99.35 KiB | Viewed 13621 times ]


Attachment:
100_6300 (Custom).JPG
100_6300 (Custom).JPG [ 47.1 KiB | Viewed 13621 times ]


Nice spot up here.... panorama (East to North... continued below)

Attachment:
100_6305 (Custom).JPG
100_6305 (Custom).JPG [ 71.13 KiB | Viewed 13621 times ]


Top

Reply with quote
RupertofOZ
PostPosted: Jun 2nd, '11, 15:49
Attachment:
100_6306 (Custom).JPG
100_6306 (Custom).JPG [ 69.26 KiB | Viewed 13617 times ]


Attachment:
100_6307 (Custom).JPG
100_6307 (Custom).JPG [ 65.73 KiB | Viewed 13617 times ]


Attachment:
100_6308 (Custom).JPG
100_6308 (Custom).JPG [ 64.87 KiB | Viewed 13617 times ]


Top

Reply with quote
Mr Damage
PostPosted: Jun 2nd, '11, 15:59
A posting God
A posting God
User avatar

Joined: Apr 4th, '11, 13:18
Posts: 2381
Gender: Male
Are you human?: Not before 8am
Location: Perth, Western Australia
You see a view like that and it makes you wonder why we're all living in suburbia... but then the next day you've forgotten all about it and you're back to the 9-5 grind, traffic jams, living in your neighbours pocket... etc! :dontknow:
Top
 Profile
Reply with quote
