Good day all, my name is Jakobus de wet and I finally got my first grow bed in working order this week end .

My system is a nice DIY project with materials that you doe not always need to buy new.

Please feel free to give me advice on my system if you see something missing or if you have a idea of something that would work better.

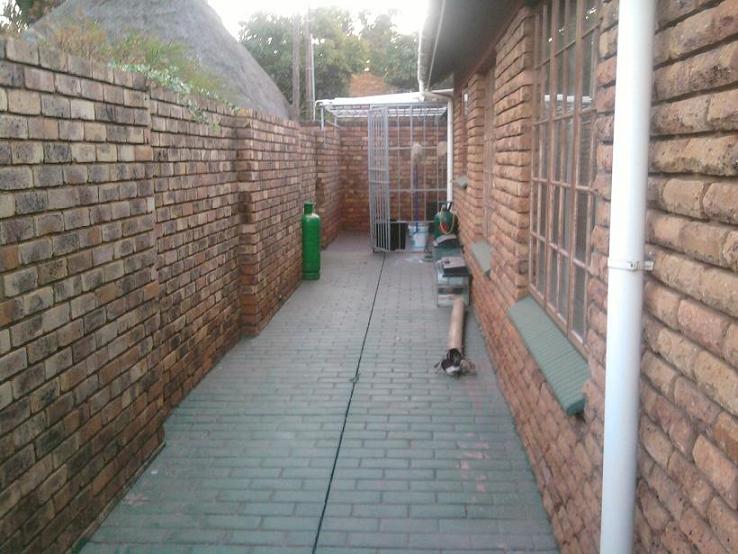

Here is the maximum space that I have available at the back of my house.
Attachment:
File comment: Available space
1000L 01.jpg
1000L 01.jpg [ 72.61 KiB | Viewed 5632 times ]

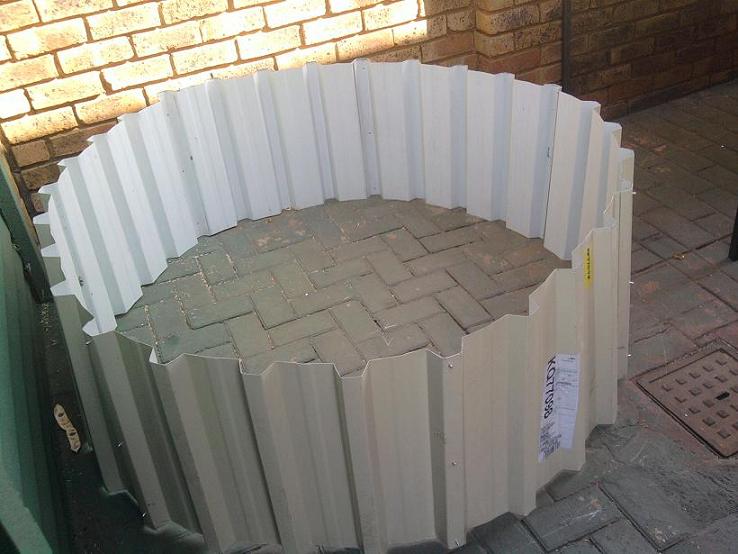

Fish dam made with IBR sheeting 500 high x 1500 dia
Attachment:
File comment: Fish dam
1000L 03.jpg
1000L 03.jpg [ 58.54 KiB | Viewed 5628 times ]

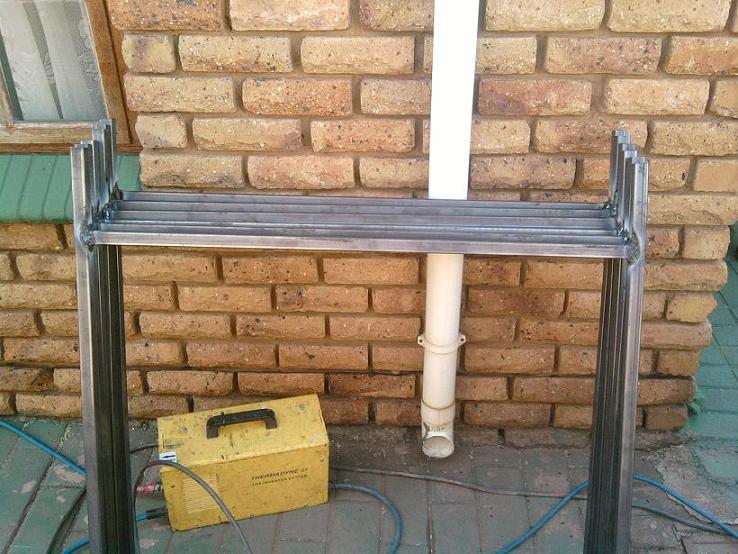

Started with the grow beds frames. made with 25 x 25 x 2.5 square tubing
Attachment:
File comment: Grow bed frame
1000L 05.jpg
1000L 05.jpg [ 90.32 KiB | Viewed 5629 times ]


Will post the other photos later
Top
 Profile
Reply with quote
    Advertisement

Jakobus
PostPosted: Oct 5th, '09, 16:57
User avatar

Joined: Aug 4th, '09, 19:05
Posts: 2
Location: Pretoria
Gender: Male
Location: South-Africa , Pretoria , Theresapark
Update on the system


Attachments:

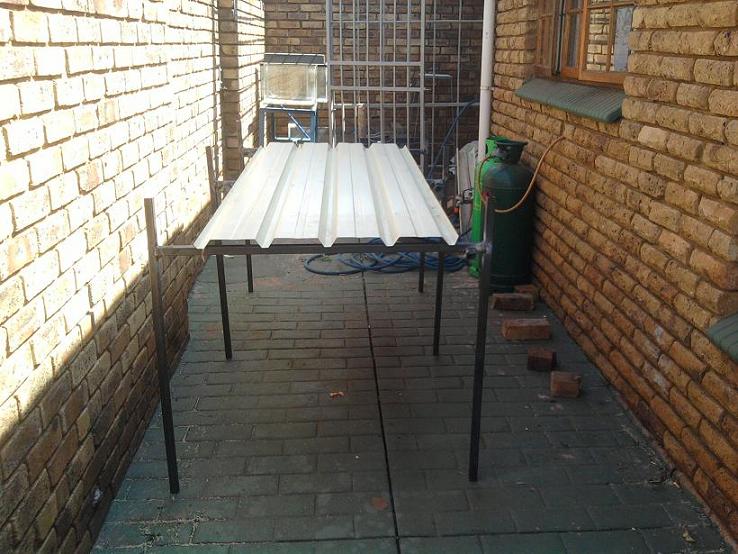

File comment: Gow bed frame
1000L 06.jpg
1000L 06.jpg [ 83.24 KiB | Viewed 5586 times ]
Top
 Profile
Reply with quote
BatonRouge Bill
PostPosted: Oct 6th, '09, 08:36
Almost divorced
Almost divorced
User avatar

Joined: Apr 20th, '08, 12:07
Posts: 1409
Location: Baton Rouge Louisiana. USA
Gender: Male
Are you human?: Take me to ya leader
Location: USA, Louisiana, Baton Rouge, Gonzales.
All looks do-able but I hope you put more cross bracing and beef up your stand a little using small square tubing. It's a too common mistake that can be quite dangerous. Water and most grow media can be quite heavy. Do some calc's on how many bags of pebbles, lava rock/scoria or hydroton will fit in your grow bed and how many gallons of water will take up the difference. You will probably find it enough to squat way down the back of a pickup truck. I appologize if I jumped the gun on this.
Welcome to the addiction!!! :shock: :cheers:
Top
 Profile
Reply with quote
Jacko
PostPosted: Oct 8th, '09, 01:15
Xtreme Contributor
Xtreme Contributor
User avatar

Joined: Oct 7th, '09, 16:53
Posts: 101
Location: Karratha
Gender: Male
Are you human?: Yeah, Nah, Nah Yeah
Location: Australia, WA
Hi ,I changed my account ,so this is my system. I just want to sort out my account then i will upload all my images of the system.
As you said the frames look a bit small for the job , but I have done the calculations and my grow beds hold,you will see soom.
My seedlings began to spread theire first roots after 2 days.
Top
 Profile
Reply with quote
Jacko
PostPosted: Oct 8th, '09, 01:45
Xtreme Contributor
Xtreme Contributor
User avatar

Joined: Oct 7th, '09, 16:53
Posts: 101
Location: Karratha
Gender: Male
Are you human?: Yeah, Nah, Nah Yeah
Location: Australia, WA
Here is the rest of the photos on the system.


Attachments:

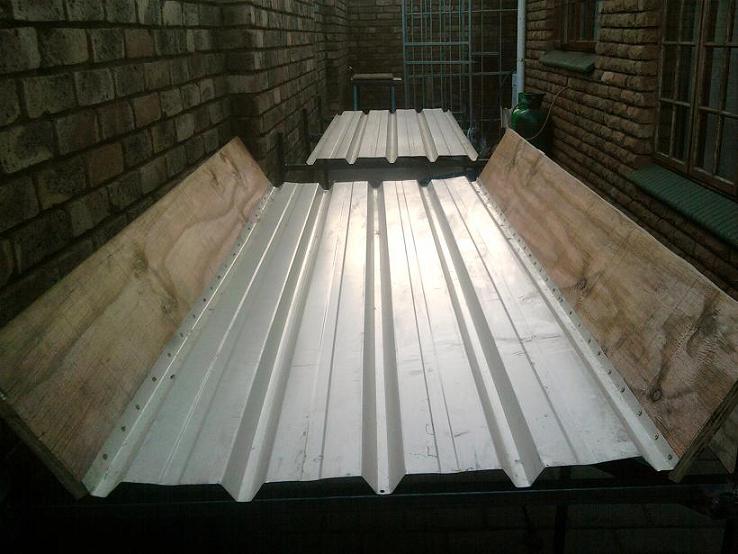

File comment: Two sides screwed on
1000L%2016.jpg [ 61.06 KiB | Viewed 5413 times ]

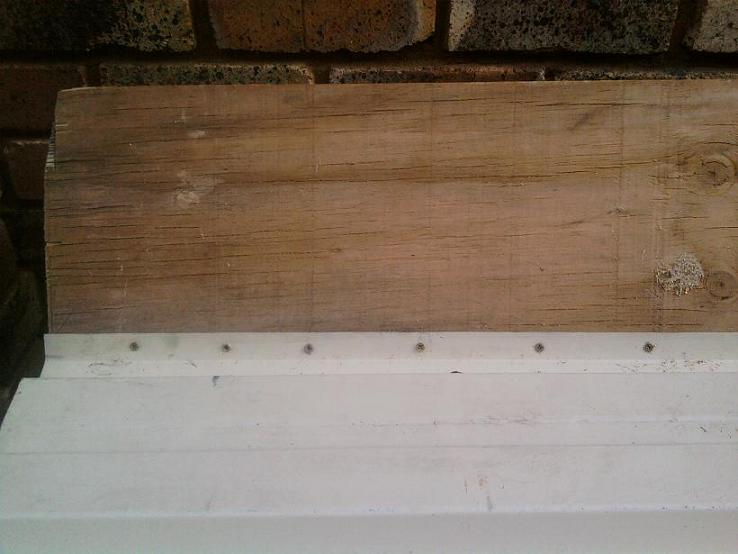

File comment: Wood screwed to the IBR sheeting
1000L%2015.jpg [ 47.55 KiB | Viewed 5410 times ]
File comment: Grow bed frames
1000L%2009.jpg [ 105.6 KiB | Viewed 5405 times ]
Top
 Profile
Reply with quote
Jacko
PostPosted: Oct 8th, '09, 01:50
Xtreme Contributor
Xtreme Contributor
User avatar

Joined: Oct 7th, '09, 16:53
Posts: 101
Location: Karratha
Gender: Male
Are you human?: Yeah, Nah, Nah Yeah
Location: Australia, WA
More photos


Attachments:

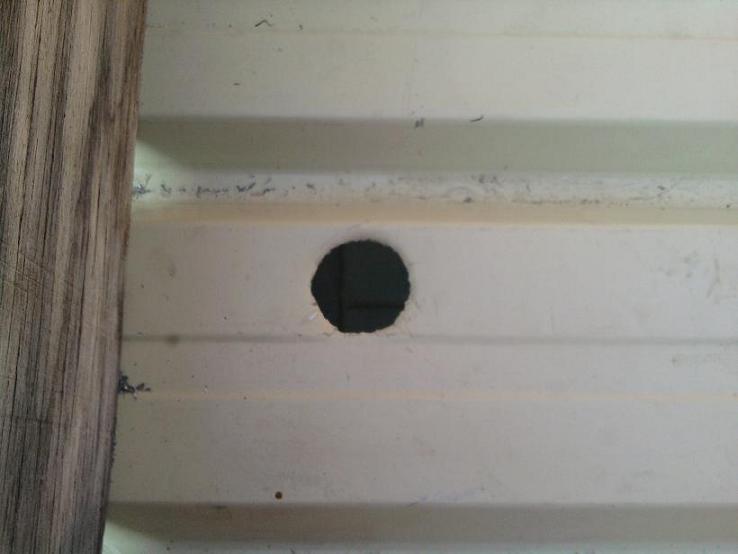

File comment: Drain hole
1000L%2022.jpg [ 32.11 KiB | Viewed 5416 times ]

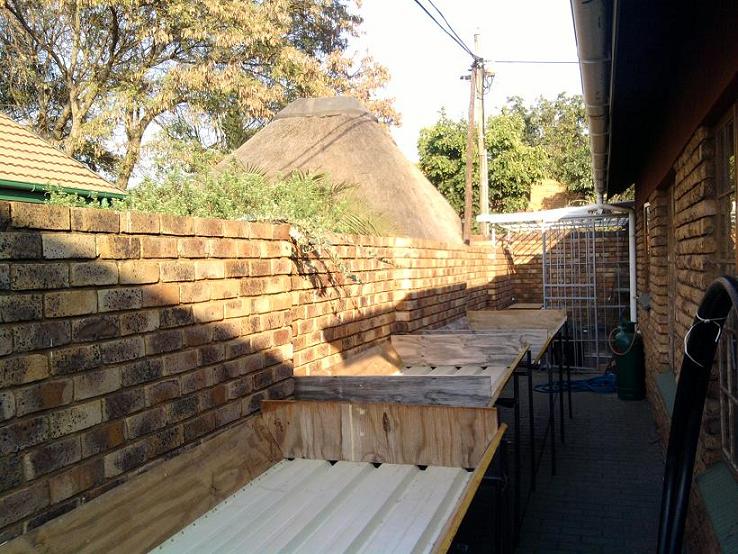

File comment: Grow beds structures complete
1000L%2021.jpg [ 101.64 KiB | Viewed 5407 times ]

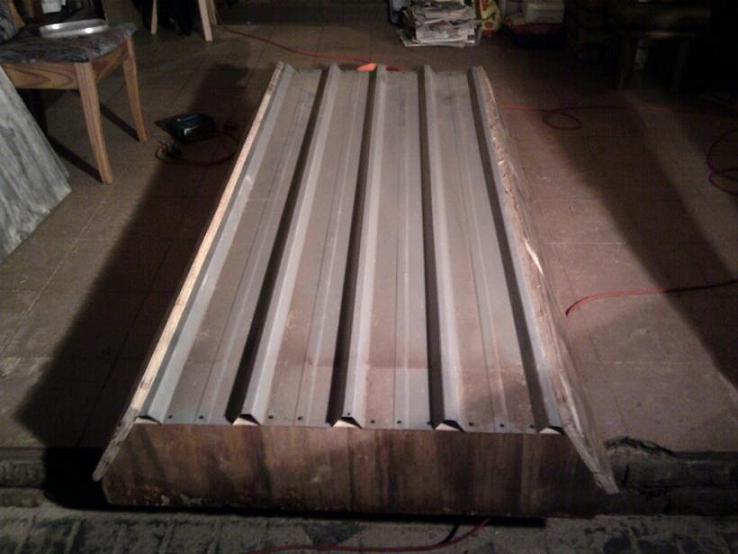

File comment: Bottom of the grow bed
1000L%2018.jpg [ 48.95 KiB | Viewed 5405 times ]
Top
 Profile
Reply with quote
Jacko
PostPosted: Oct 8th, '09, 01:57
Xtreme Contributor
Xtreme Contributor
User avatar

Joined: Oct 7th, '09, 16:53
Posts: 101
Location: Karratha
Gender: Male
Are you human?: Yeah, Nah, Nah Yeah
Location: Australia, WA
more photos


Attachments:

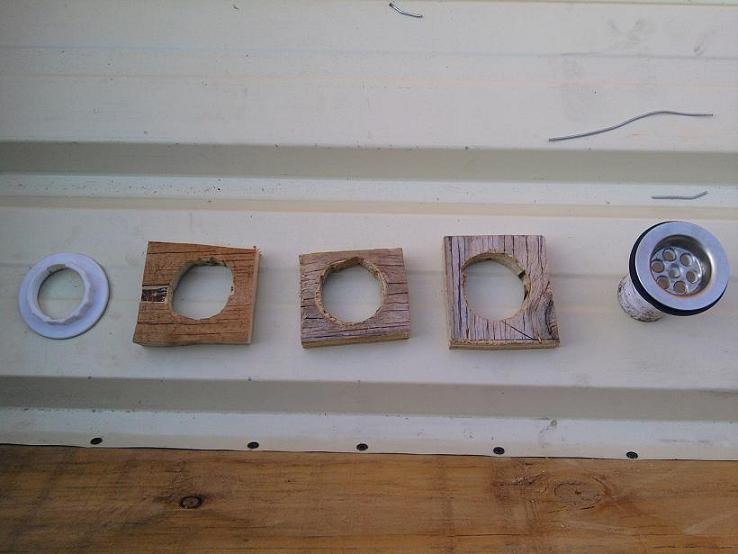

File comment: Wood spacers (mind the scew citting :-)
1000L%2025.jpg [ 44.07 KiB | Viewed 5406 times ]

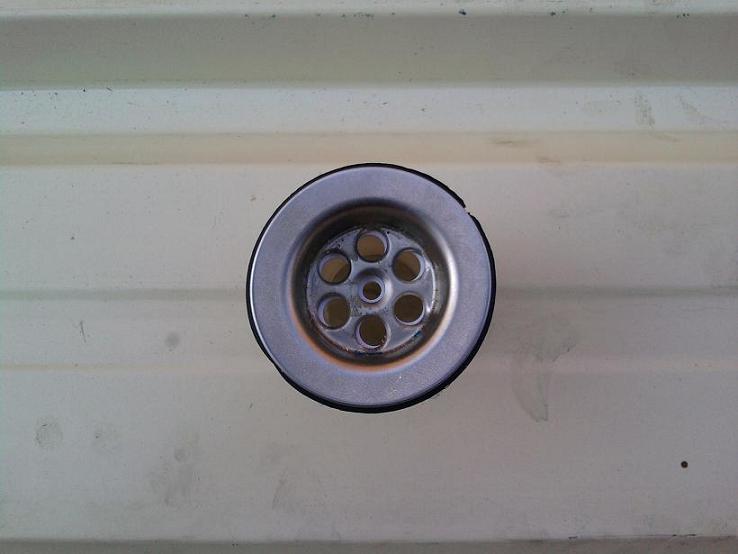

File comment: Drain
1000L%2024.jpg [ 33.37 KiB | Viewed 5407 times ]

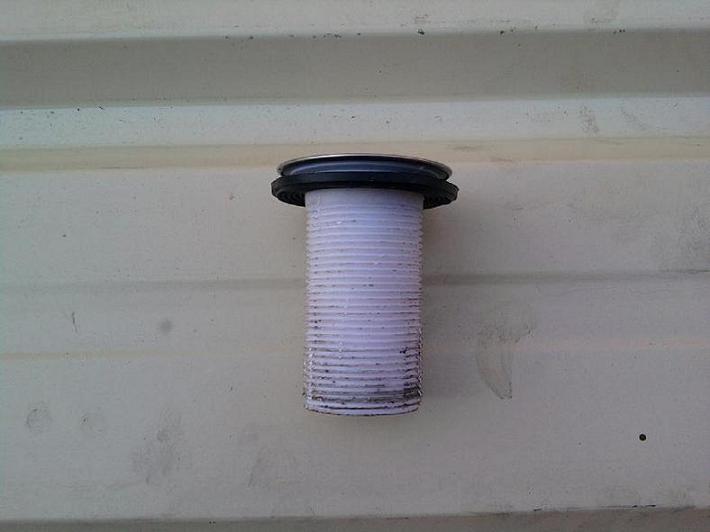

File comment: Drain
1000L%2023.jpg [ 31.64 KiB | Viewed 5409 times ]
Top
 Profile
Reply with quote
Jacko
PostPosted: Oct 8th, '09, 02:00
Xtreme Contributor
Xtreme Contributor
User avatar

Joined: Oct 7th, '09, 16:53
Posts: 101
Location: Karratha
Gender: Male
Are you human?: Yeah, Nah, Nah Yeah
Location: Australia, WA
More photos


Attachments:
File comment: Recycles materials
1000L%2031.jpg [ 106.95 KiB | Viewed 5410 times ]

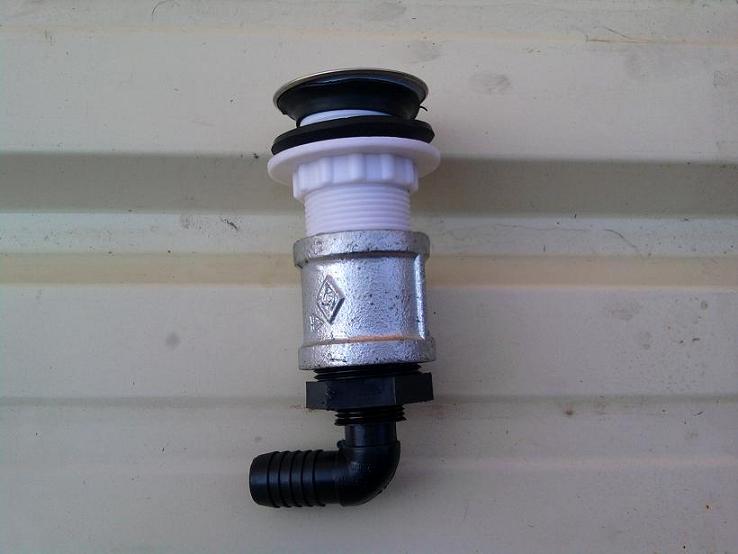

File comment: Drain Assembly
1000L%2030.jpg [ 35.25 KiB | Viewed 5408 times ]

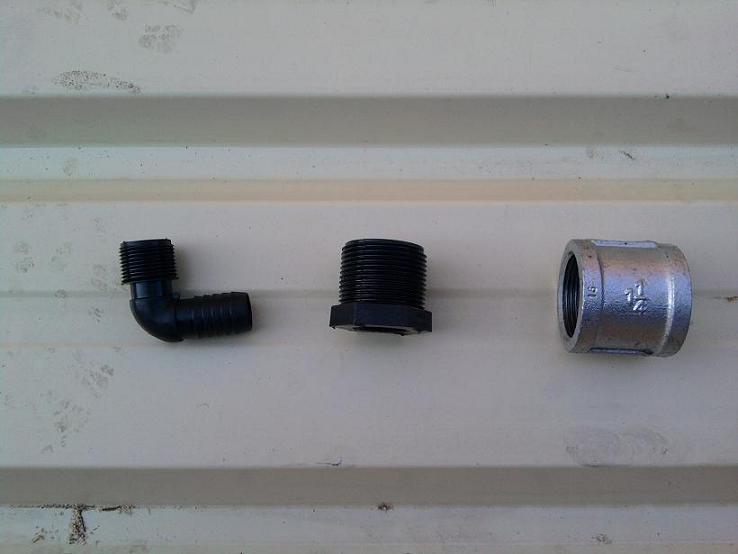

File comment: Drain fittings
1000L%2026.jpg [ 31.49 KiB | Viewed 5401 times ]
Top
 Profile
Reply with quote
Jacko
PostPosted: Oct 8th, '09, 02:04
Xtreme Contributor
Xtreme Contributor
User avatar

Joined: Oct 7th, '09, 16:53
Posts: 101
Location: Karratha
Gender: Male
Are you human?: Yeah, Nah, Nah Yeah
Location: Australia, WA
More photos


Attachments:
File comment: Drain pipe from grow beds to fish dam
1000L%2040.jpg [ 84.85 KiB | Viewed 5405 times ]

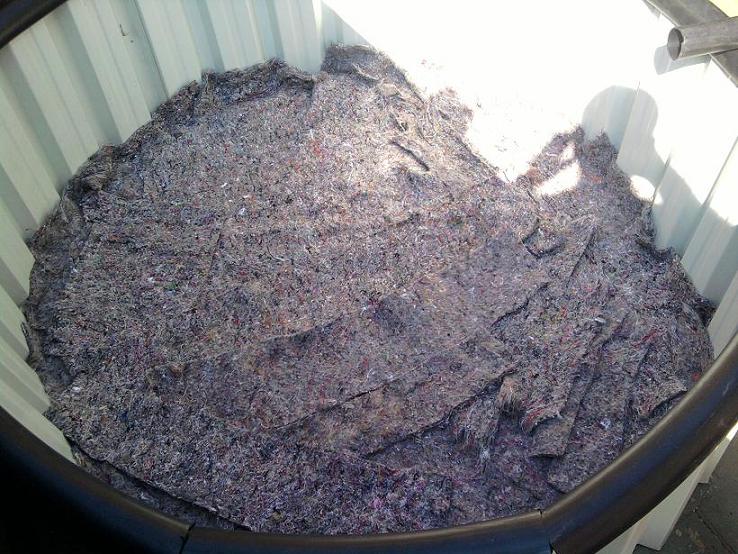

File comment: Bottom material to protect the plastic
1000L%2037.jpg [ 103.28 KiB | Viewed 5403 times ]

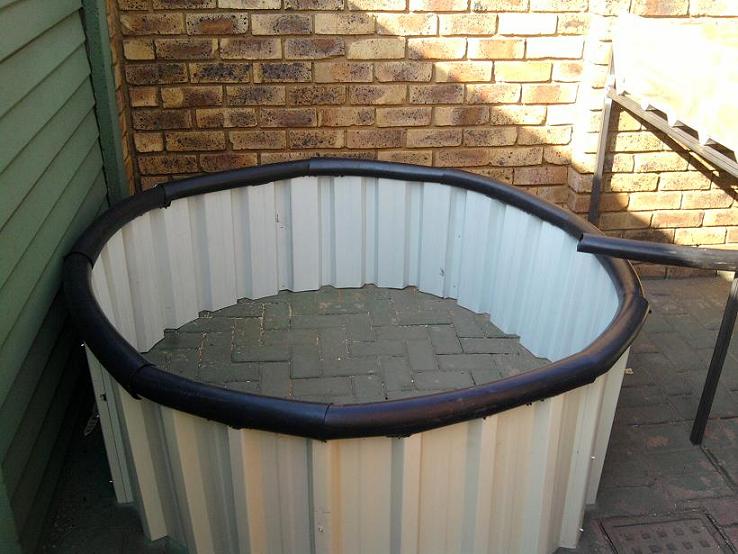

File comment: Fish dam
1000L%2034.jpg [ 67.59 KiB | Viewed 5399 times ]
Top
 Profile
Reply with quote
Jacko
PostPosted: Oct 8th, '09, 02:09
Xtreme Contributor
Xtreme Contributor
User avatar

Joined: Oct 7th, '09, 16:53
Posts: 101
Location: Karratha
Gender: Male
Are you human?: Yeah, Nah, Nah Yeah
Location: Australia, WA
More photos


Attachments:

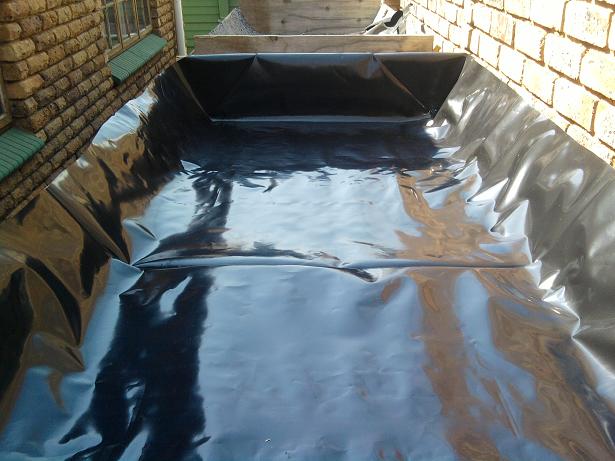

File comment: Grow bed almost complete
1000L%2044.jpg [ 50.95 KiB | Viewed 5402 times ]

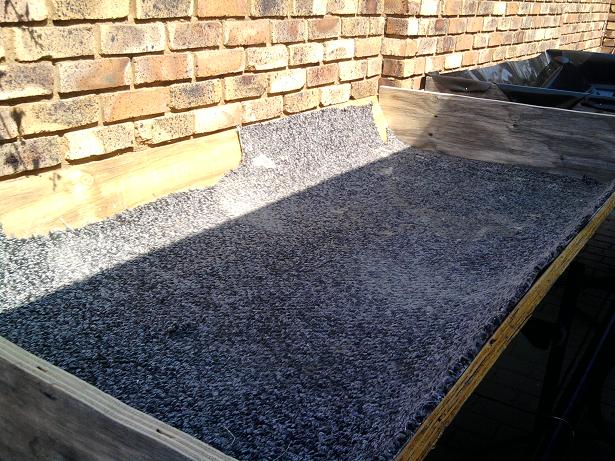

File comment: Recycled material to prevent the plastic from stretching into the IBR sheeting
1000L%2043.jpg [ 89.52 KiB | Viewed 5401 times ]

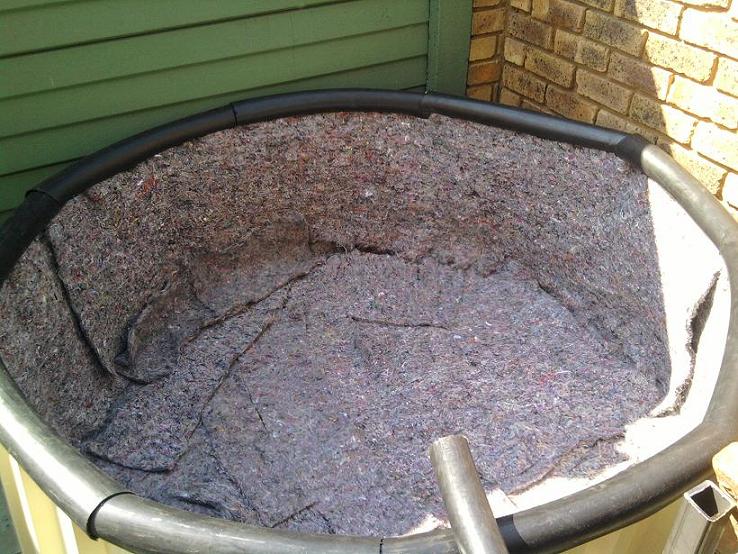

File comment: Fish dam almost complete
1000L%2041.jpg [ 102 KiB | Viewed 5399 times ]
Top
 Profile
Reply with quote
Jacko
PostPosted: Oct 8th, '09, 02:14
Xtreme Contributor
Xtreme Contributor
User avatar

Joined: Oct 7th, '09, 16:53
Posts: 101
Location: Karratha
Gender: Male
Are you human?: Yeah, Nah, Nah Yeah
Location: Australia, WA
More photos


Attachments:

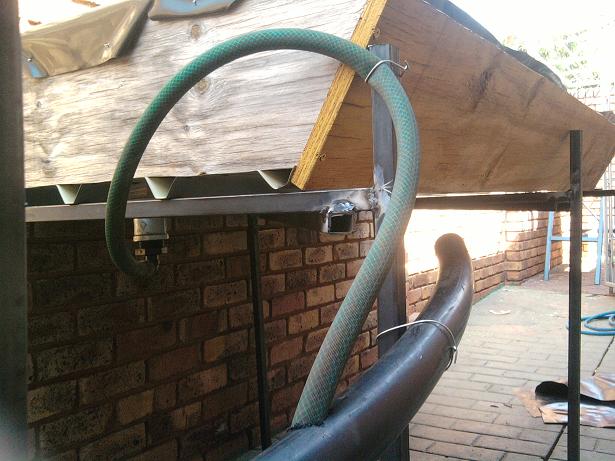

File comment: Drain pipe fitted into the main drain pipe line from the grow beds to the fish dam
1000L%2047.jpg [ 56.61 KiB | Viewed 5395 times ]
File comment: Wood spacer fitted under the IBR sheeting
1000L%2046.jpg [ 17.03 KiB | Viewed 5396 times ]

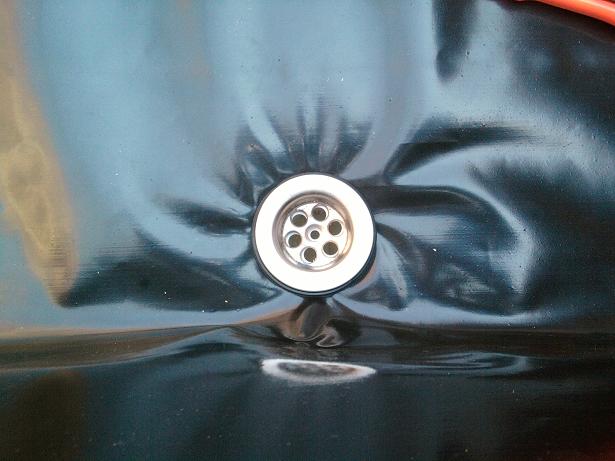

File comment: Drain assembly fitted into the grow bed
1000L%2045.jpg [ 38.52 KiB | Viewed 5393 times ]
Top
 Profile
Reply with quote
Jacko
PostPosted: Oct 8th, '09, 02:19
Xtreme Contributor
Xtreme Contributor
User avatar

Joined: Oct 7th, '09, 16:53
Posts: 101
Location: Karratha
Gender: Male
Are you human?: Yeah, Nah, Nah Yeah
Location: Australia, WA
More photos


Attachments:

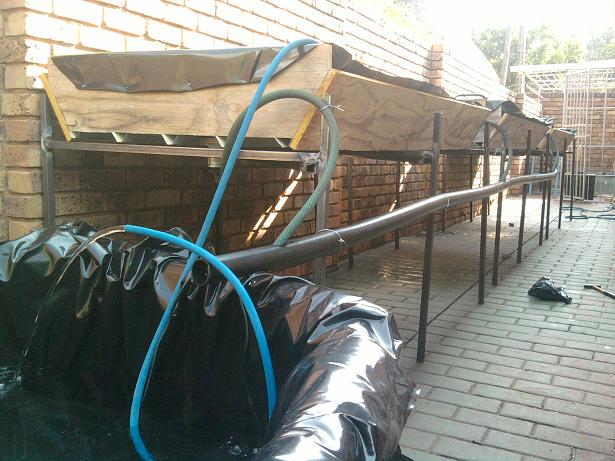

File comment: All the pipes connected and the pumps with theire pipes
1000L%2056.jpg [ 64.19 KiB | Viewed 5390 times ]

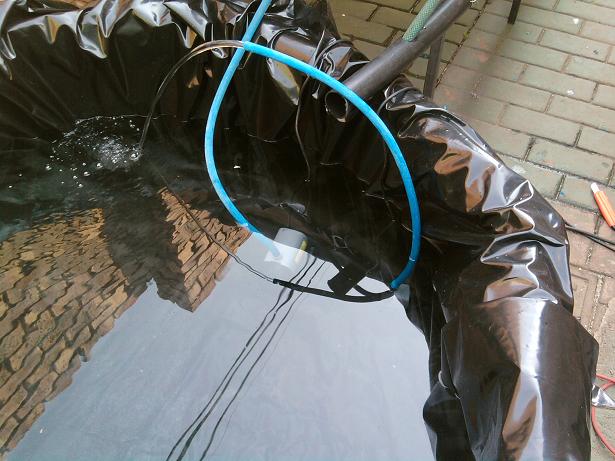

File comment: Water in and pups connected
1000L%2054.jpg [ 57.98 KiB | Viewed 5388 times ]

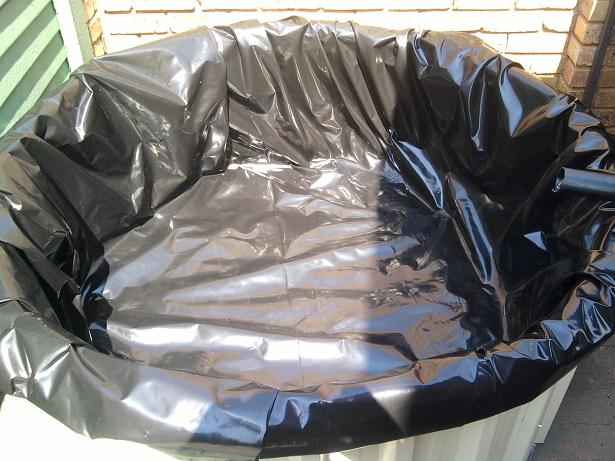

File comment: Fish dam complete
1000L%2049.jpg [ 60.24 KiB | Viewed 5389 times ]
Top
 Profile
Reply with quote
Jacko
PostPosted: Oct 8th, '09, 02:23
Xtreme Contributor
Xtreme Contributor
User avatar

Joined: Oct 7th, '09, 16:53
Posts: 101
Location: Karratha
Gender: Male
Are you human?: Yeah, Nah, Nah Yeah
Location: Australia, WA
More photos


Attachments:

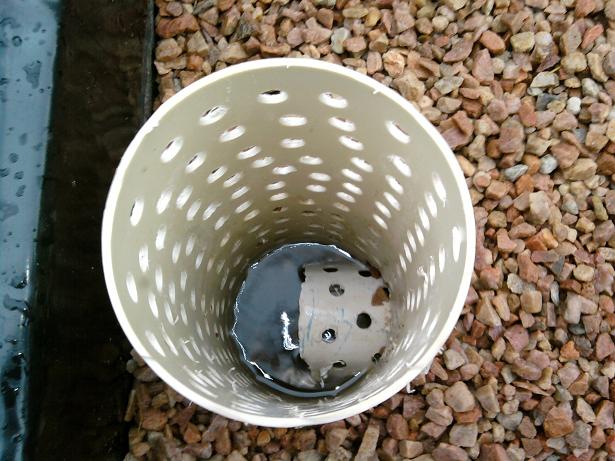

File comment: Grow bed full of gravel ( washed ) with the 2 PVC pipes. 1 horisontal and 1 vertical
1000L%2060.jpg [ 65.69 KiB | Viewed 5388 times ]

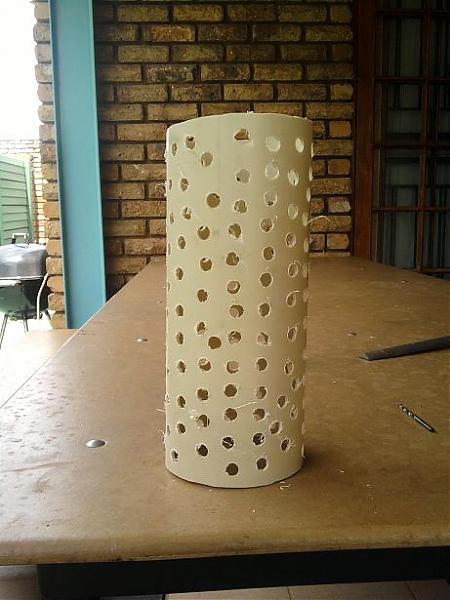

File comment: PVC pipe that goes over my drain hole
1000L%2058.jpg [ 41.77 KiB | Viewed 5387 times ]
Top
 Profile
Reply with quote
Jacko
PostPosted: Oct 8th, '09, 02:27
Xtreme Contributor
Xtreme Contributor
User avatar

Joined: Oct 7th, '09, 16:53
Posts: 101
Location: Karratha
Gender: Male
Are you human?: Yeah, Nah, Nah Yeah
Location: Australia, WA
More photos.
The time the cycle takes to flood and drain is 18 minutes.


Attachments:

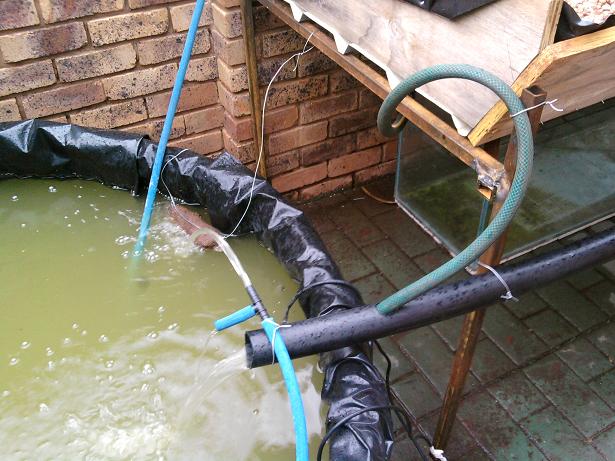

File comment: Grow bed first drain :-)
The system is up and running
1000L%2062.jpg [ 65.54 KiB | Viewed 5385 times ]

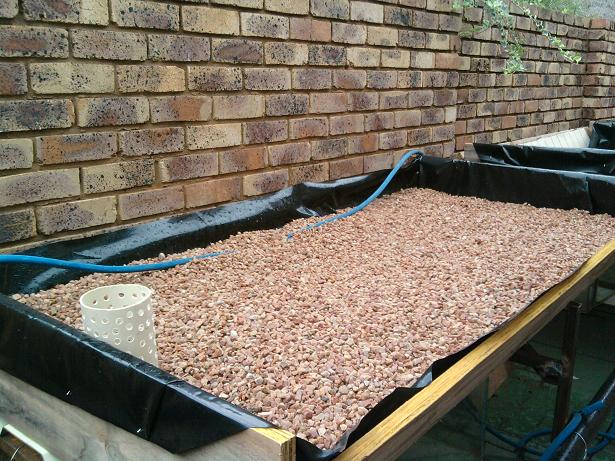

File comment: Grow bed complte with gravel
1000L%2061.jpg [ 90.23 KiB | Viewed 5382 times ]
Top
 Profile
Reply with quote
Food&Fish
PostPosted: Oct 8th, '09, 04:05
Seriously, this cant be healthy.
Seriously, this cant be healthy.
User avatar

Joined: Aug 24th, '06, 19:46
Posts: 6604
Location: sunbury
Gender: Male
Are you human?: no
Location: sunbury
A small tip when drilling your standpipe covers only drill the holes in the bottom third this stops slugs bees grubs from getting in there all those holes up there is an open invitation
