 Post subject: System design ideas
PostPosted: Feb 4th, '08, 12:07
Bordering on Legend
Bordering on Legend
User avatar

Joined: Jan 26th, '07, 13:26
Posts: 375
Location: Goulburn Valley, Victoria
Gender: Female
Are you human?: Depends...
Location: Goulburn Valley, Victoria
OK, looks like I can get a couple of IBC's. :D

I've been trying to work out how to put them together.

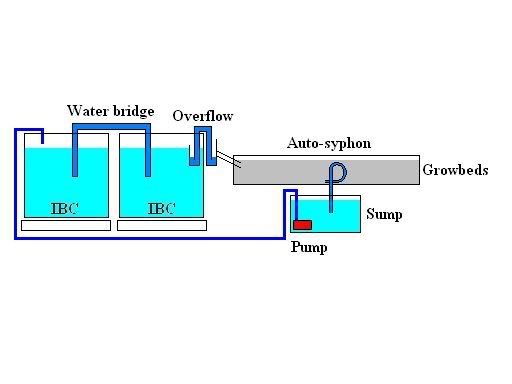

I thought up this design and thought I'd draw it up and let everyone have a look at it.

I really like the idea of not putting holes in the sides of my IBC's, if there's no holes there's no leaks. :lol:

How it works:
Pump in sump pumps to 1st IBC
Water level equalizes through water bridge into 2nd IBC
Water 'over-flows' from 2nd IBC into growbeds
Auto-syphon drains to sump
Around we go again.

Thinking about having the pump on a float or timer, I'd rather a float.

I need to work out how much water my growbeds will hold and therefore how big my sump will need to be but I'm not too worried about that at the moment.

OK, here it is.



Top
 Profile
Reply with quote
    Advertisement

 Post subject:
PostPosted: Feb 4th, '08, 12:29
Bordering on Legend
Bordering on Legend
User avatar

Joined: Nov 13th, '07, 08:10
Posts: 388
Location: Beeliar,West Oz
Gender: Male

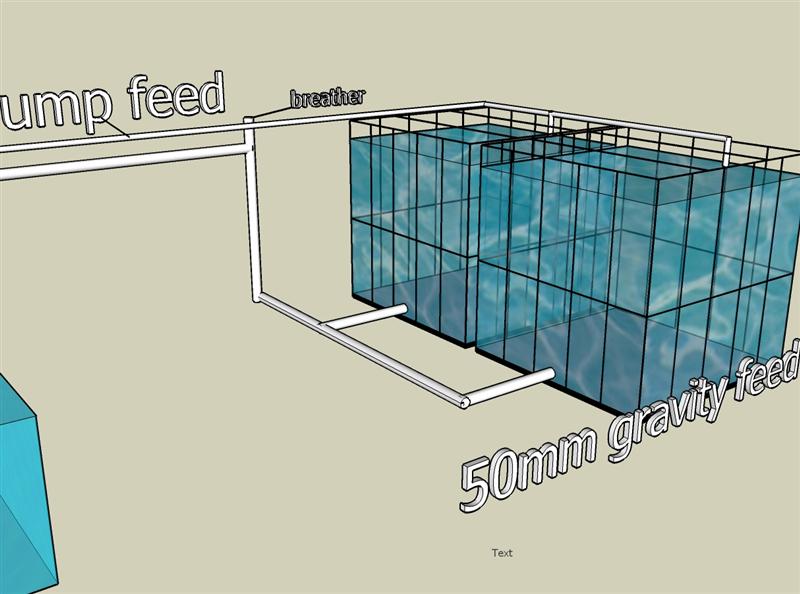

I`m doing the same sort of thing but instead off a water bridge I`m linking the ibc`s through the 2" outlet`s at the bottom then up to fish tank water level
