PostPosted: Nov 26th, '13, 17:33
Newbie
Newbie

Joined: Nov 26th, '13, 16:45
Posts: 41
Gender: Male
Are you human?: YES
Location: Central Coast, AUS
Hi all, I'm new to this forum and AP. :sign2:

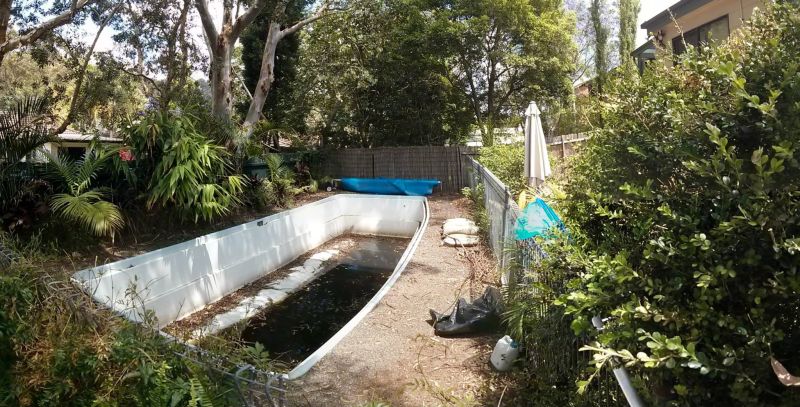

I'm in the planning and design stage of my first system. I have a disused pool yard area that I'm going to utilise.
Attachment:
1403197_622411611135233_876322551_o.jpg [ 110.01 KiB | Viewed 8110 times ]

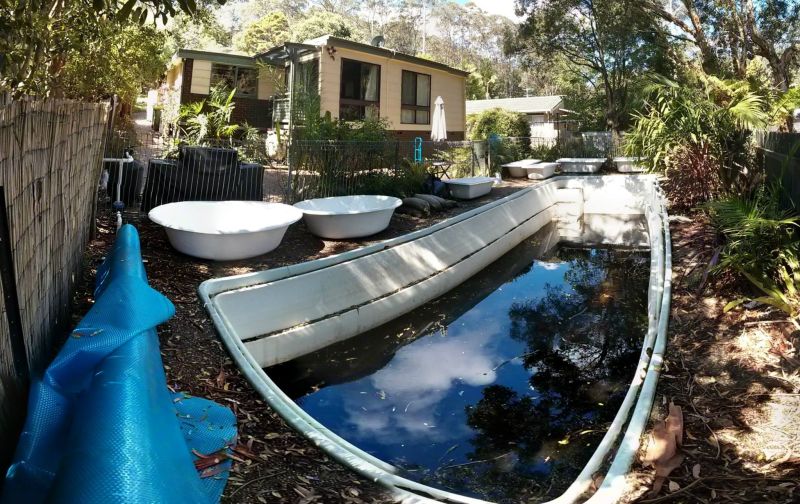

Bargain eBay find: 7 fibreglass bathtubs. The big ovals are 1.94m x 1.1m x 0.47m. The others are standard sized tubs (1.7m) and one 1.5m.
Attachment:
1417596_622411791135215_616947162_o.jpg [ 118.76 KiB | Viewed 8110 times ]

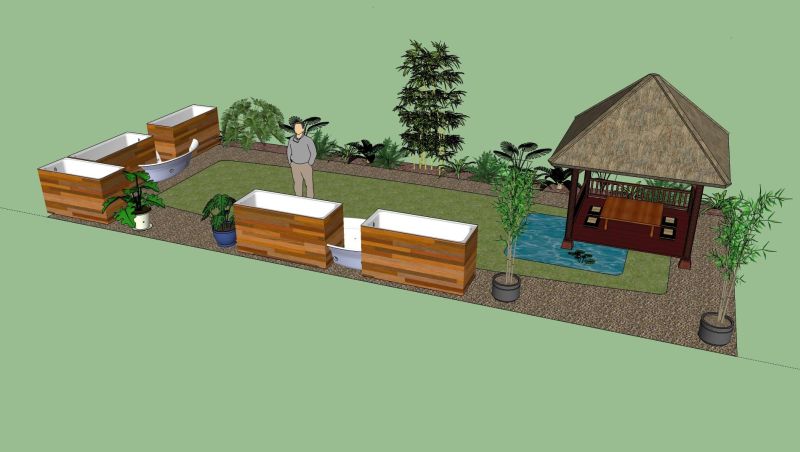

I plan on arranging them like so:
Attachment:
1400722_622860501090344_233027963_o.jpg [ 41.93 KiB | Viewed 8110 times ]

Missing from the plans are some IBC sumps that I will place in the pool cavity near the oval FT's before filling cavity and covering with turf and/or gravel (decking over sumps) The koi pond and gazebo will probably come later.

An alternative is to expand the pond but the area has a lot of gumtrees and I'd prefer the system to be low maintenance. Shade sails could replace gazebo though.

Comments, ideas and criticisms welcome.


Top
 Profile
Reply with quote
    Advertisement

PostPosted: Nov 26th, '13, 17:47
Moderator
Moderator
User avatar

Joined: Jun 26th, '10, 20:46
Posts: 2938
Images: 51
Gender: Male
Are you human?: Nope! I'm a machine.
Location: Dowerin, WA
Welcome Greg.

That is a big system. Best of luck and cant wait for updates.


Top
 Profile Personal album
Reply with quote
PostPosted: Nov 26th, '13, 17:54
Moderator
Moderator
User avatar

Joined: May 6th, '11, 12:06
Posts: 12206
Gender: Male
Location: Northern NSW
Yea thats awesome, Greg!


Top
 Profile
Reply with quote
PostPosted: Nov 26th, '13, 18:31
Legend Member
Legend Member
User avatar

Joined: Nov 24th, '12, 18:22
Posts: 585
Gender: Male
Are you human?: yes, arent we all ?
Location: Beerwah, Queensland
That sounds fantastic mate :headbang: ,

You can dump that old pool shell at my place if you like, I'll get rid of it for you :shifty:


Top
 Profile
Reply with quote
PostPosted: Nov 26th, '13, 18:44
A posting God
A posting God
User avatar

Joined: Nov 7th, '12, 19:48
Posts: 2361
Gender: Male
Are you human?: YES
Location: Warragul
why not make a deck over the pool and have fish/sump massive


Top
 Profile
Reply with quote
PostPosted: Nov 26th, '13, 19:00
Newbie
Newbie

Joined: Nov 26th, '13, 16:45
Posts: 41
Gender: Male
Are you human?: YES
Location: Central Coast, AUS
jayendra wrote:
why not make a deck over the pool and have fish/sump massive


That was my first plan but I crunched the numbers and it's way out of my budget. :cry:


Top
 Profile
Reply with quote
PostPosted: Nov 27th, '13, 09:29
Newbie
Newbie

Joined: Nov 26th, '13, 16:45
Posts: 41
Gender: Male
Are you human?: YES
Location: Central Coast, AUS
Before I go crazy at my local hardware store, does anyone have any recommendations as to plumbing and siphon component dimensions?

Grow beds are 380-420mm deep to the edge.
Round end tubs are 1550x610 inner (1250 long at the base)
Long square end one is 1400x600 (1100 long at base)
Small square end tub is 1250x600 (900 long at base)
All have 50mm plug holes.

I just bought 2x Jebao 5000's (~ 4200L/h @ 1m, 3000L/h @ 2m)


Top
 Profile
Reply with quote
PostPosted: Nov 27th, '13, 11:38
A posting God
A posting God
User avatar

Joined: Nov 7th, '12, 19:48
Posts: 2361
Gender: Male
Are you human?: YES
Location: Warragul
what fits in the plug holes for standpipes?


Top
 Profile
Reply with quote
PostPosted: Nov 27th, '13, 16:20
Newbie
Newbie

Joined: Nov 26th, '13, 16:45
Posts: 41
Gender: Male
Are you human?: YES
Location: Central Coast, AUS
jayendra wrote:
what fits in the plug holes for standpipes?


Um I'm hoping someone can tell me. :dontknow:
I've got a Masters and a Bunnings near me, I'll go "browsing" tomorrow.

*edit* Perhaps a sink plug or something like this could work in conjunction with bulkhead fittings?
http://www.ebay.com.au/itm/25mm-x-50mm-x-8mm-Garter-Spring-TC-Double-Lip-Oil-Shaft-Seal-/160932956985?pt=AU_Business_Industrial_Industrial_Supply_MRO&hash=item25785a0b39


Top
 Profile
Reply with quote
PostPosted: Nov 27th, '13, 21:16
Newbie
Newbie

Joined: Nov 26th, '13, 16:45
Posts: 41
Gender: Male
Are you human?: YES
Location: Central Coast, AUS
Greg.B wrote:
jayendra wrote:
what fits in the plug holes for standpipes?


Um I'm hoping someone can tell me. :dontknow:


*edit* Gotta love Google:
http://www.underthechokotree.com/index.php?option=com_content&view=article&id=236:aquaponics-making-a-bell-siphon&catid=97:aquaponics&Itemid=37


Top
 Profile
Reply with quote
PostPosted: Nov 27th, '13, 22:34
If you use a standard 40mm "plug and waste"... then it's easy... (the BYAP kits are made with these)

viewtopic.php?p=199730#p199730

It's a 25mm timed F&D standpipe... but can be the basis for a siphon just as easily...

You can even buy them from the BYAP shop... :wink:

http://backyardaquaponicsshop.com/shop/drainage-kit/


Top

Reply with quote
PostPosted: Nov 27th, '13, 23:33
A posting God
A posting God
User avatar

Joined: Feb 7th, '11, 18:32
Posts: 3193
Gender: Male
Are you human?: Most of me
Location: Thailand, Chaing Rai
Greg.B wrote:
Hi all, I'm new to this forum and AP. :sign2:

I'm in the planning and design stage of my first system. I have a disused pool yard area that I'm going to utilise.
Attachment:

Bargain eBay find: 7 fibreglass bathtubs. The big ovals are 1.94m x 1.1m x 0.47m. The others are standard sized tubs (1.7m) and one 1.5m.
Attachment:

I plan on arranging them like so:
Attachment:

Missing from the plans are some IBC sumps that I will place in the pool cavity near the oval FT's before filling cavity and covering with turf and/or gravel (decking over sumps) The koi pond and gazebo will probably come later.

An alternative is to expand the pond but the area has a lot of gumtrees and I'd prefer the system to be low maintenance. Shade sails could replace gazebo though.


Comments, ideas and criticisms welcome.


Welcome,looking forward to watching your progress,by the way i love the way your man in your plan is stood there hands in pockets just relaxing and surveying his Aquaponic garden.


Top
 Profile
Reply with quote
PostPosted: Nov 27th, '13, 23:52
Bordering on Legend
Bordering on Legend

Joined: Oct 11th, '13, 00:49
Posts: 455
Images: 0
Location: Murphy, Texas
Gender: Male
Are you human?: yes
Location: Murphy Texas United States
Welcome,looking forward to watching your progress,by the way i love the way your man in your plan is stood there hands in pockets just relaxing and surveying his Aquaponic garden.[/quote]

The start of this system reminds me alot of your system start Dasboot! Was there any particular reason you went away from your original pond other than sunlight? Did the large body of water make it difficult in some way?


Top
 Profile
Reply with quote
PostPosted: Nov 28th, '13, 00:18
A posting God
A posting God
User avatar

Joined: Feb 7th, '11, 18:32
Posts: 3193
Gender: Male
Are you human?: Most of me
Location: Thailand, Chaing Rai
The pond was a starter into Aquaponics,very soon i could see the limitations of running a system from the pond,i wanted more control more hands on this is what my new system gives me.
The pond is going to get four half barrel filter beds as its filtration when the boss says i can.


Top
 Profile
Reply with quote
PostPosted: Nov 28th, '13, 11:46
Newbie
Newbie

Joined: Nov 26th, '13, 16:45
Posts: 41
Gender: Male
Are you human?: YES
Location: Central Coast, AUS

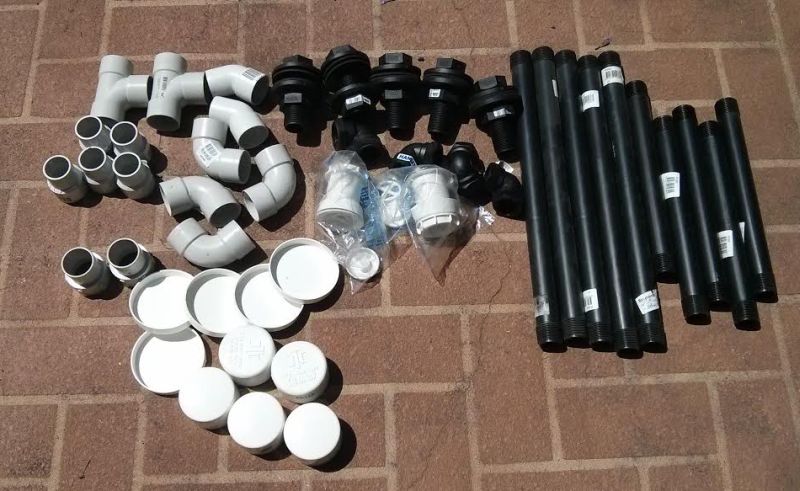

I bet everyone remembers buying their first big batch of fittings :)
Attachment:
fittings.jpg [ 78.94 KiB | Viewed 7975 times ]

This lot is for the siphons and drain side of things, pump to spray bars will be the next trip. Any recommendations on what diameter plumbing should I use for all that? Outlet on pump is 25mm ID, 30mm OD.

RupertofOZ wrote:
If you use a standard 40mm "plug and waste"... then it's easy... (the BYAP kits are made with these)

Thanks, I grabbed a couple of those waste drains for the oval FT's.
