Jaymie
 Post subject:
PostPosted: Sep 10th, '07, 17:38
Spam Assassin (Be afraid!)
Spam Assassin (Be afraid!)
User avatar

Joined: Aug 24th, '06, 11:50
Posts: 10202
Location: Townsville
Gender: Female
Location: home
cool :thumbright:
Top
 Profile
Reply with quote
    Advertisement

DownRiverDan
 Post subject:
PostPosted: Sep 10th, '07, 17:44
Bordering on Legend
Bordering on Legend
User avatar

Joined: May 24th, '07, 17:20
Posts: 280
Location: Topeka, Kansas, USA
Gender: Male
Looks as though it is all coming together nicely. Won't be long now
Top
 Profile
Reply with quote
twintragics
 Post subject: Re: A Tragic Greenhouse
PostPosted: Sep 10th, '07, 18:59
Almost divorced
Almost divorced
User avatar

Joined: Feb 22nd, '07, 18:27
Posts: 1280
Location: geelong
Gender: Male
sorry,din dins got in the road


Attachments:

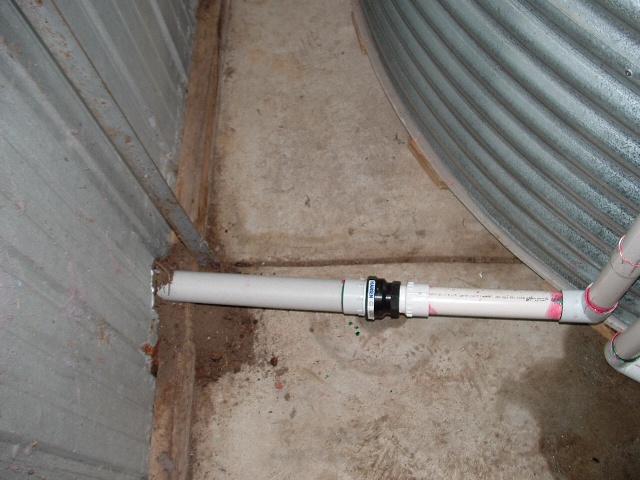

File comment: Out from tank to gbs, 40mm pressure pipe out to 50mm stuff bc we had it lying around. Can also separate pipe here to clean, H2S is a killer in pipes.
Grow beds,sump and fish tank. 031.jpg
Grow beds,sump and fish tank. 031.jpg [ 122.5 KiB | Viewed 1800 times ]

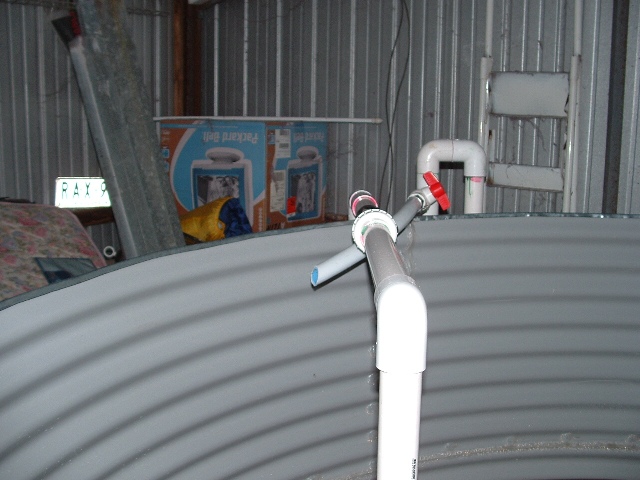

File comment: Outlet pipe from tank lhs. Threaded join is on top above water line for maintenance purposes. Ball tap on rhs is to return water to tank during pump cycle.
Grow beds,sump and fish tank. 026.jpg
Grow beds,sump and fish tank. 026.jpg [ 114.95 KiB | Viewed 1799 times ]
File comment: sump pump runs for 9 minutes at the max inflow rate to the sump from gb. Off for 8 minutes back on for 9. Nice flow rate eh?
Grow beds,sump and fish tank. 024.jpg
Grow beds,sump and fish tank. 024.jpg [ 112.52 KiB | Viewed 1799 times ]
Top
 Profile
Reply with quote
twintragics
 Post subject: Re: A Tragic Greenhouse
PostPosted: Sep 10th, '07, 19:06
Almost divorced
Almost divorced
User avatar

Joined: Feb 22nd, '07, 18:27
Posts: 1280
Location: geelong
Gender: Male
more


Attachments:

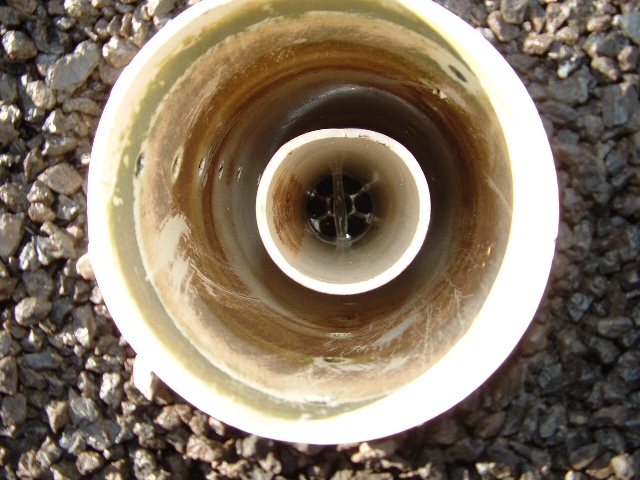

File comment: this is my favourite shot. I think you can see both 6mm inlet pipes flowing into drain pipe from exterior support pipe. The oxygenation in this whole setup is fantastic.
Grow beds,sump and fish tank. 049.jpg
Grow beds,sump and fish tank. 049.jpg [ 136.49 KiB | Viewed 1798 times ]

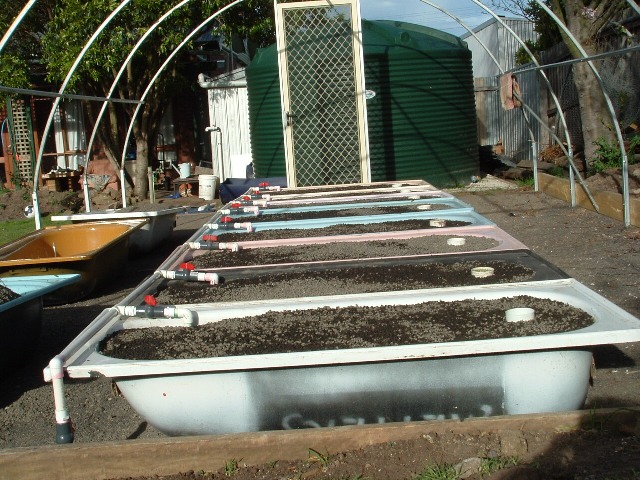

File comment: the money shot. Those that have got this far know how much hard yakka has gone in to get to this stage.
Grow beds,sump and fish tank. 032.jpg
Grow beds,sump and fish tank. 032.jpg [ 135.1 KiB | Viewed 1796 times ]
Top
 Profile
Reply with quote
Food&Fish
 Post subject: Re: A Tragic Greenhouse
PostPosted: Sep 10th, '07, 19:15
Seriously, this cant be healthy.
Seriously, this cant be healthy.
User avatar

Joined: Aug 24th, '06, 19:46
Posts: 6604
Location: sunbury
Gender: Male
Are you human?: no
Location: sunbury
Whens the fish coming
Top
 Profile
Reply with quote
twintragics
 Post subject: Re: A Tragic Greenhouse
PostPosted: Sep 10th, '07, 19:15
Almost divorced
Almost divorced
User avatar

Joined: Feb 22nd, '07, 18:27
Posts: 1280
Location: geelong
Gender: Male
and more


Attachments:

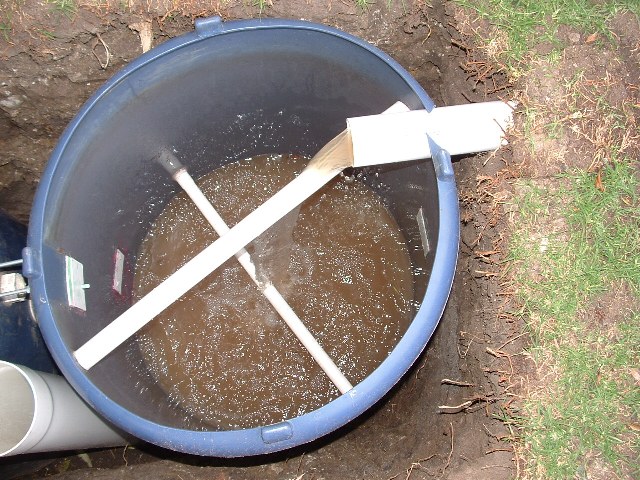

File comment: inflow to the sump. Yeah the water's dirty, 5mm gravel unwashed, delivered, not 7mm washed as ordered! Can dump the lot if needed but how's that aeration!
Grow beds,sump and fish tank. 056.jpg
Grow beds,sump and fish tank. 056.jpg [ 128.06 KiB | Viewed 1793 times ]

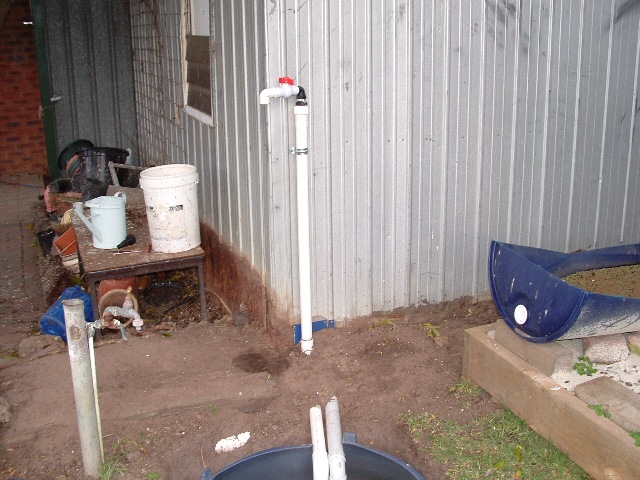

File comment: Tap from sump so we can dump water from the system if we want, before it gets back to fishtank. We have a 40mm ball valve just inside shed behind this, so we can isolate flow to this outlet tap.
Grow beds,sump and fish tank. 054.jpg
Grow beds,sump and fish tank. 054.jpg [ 120.86 KiB | Viewed 1789 times ]
Top
 Profile
Reply with quote
Food&Fish
 Post subject: Re: A Tragic Greenhouse
PostPosted: Sep 10th, '07, 19:21
Seriously, this cant be healthy.
Seriously, this cant be healthy.
User avatar

Joined: Aug 24th, '06, 19:46
Posts: 6604
Location: sunbury
Gender: Male
Are you human?: no
Location: sunbury
Good boy i see your inspection pipe near sump tanks. How long to fill grow beds!
Top
 Profile
Reply with quote
twintragics
 Post subject: Re: A Tragic Greenhouse
PostPosted: Sep 10th, '07, 19:23
Almost divorced
Almost divorced
User avatar

Joined: Feb 22nd, '07, 18:27
Posts: 1280
Location: geelong
Gender: Male
man stuff grows quick in AP.


Attachments:
File comment: celery from original system. A wise old snail said, "..celery lurves AP."
Grow beds,sump and fish tank. 071.jpg
Grow beds,sump and fish tank. 071.jpg [ 130.58 KiB | Viewed 1788 times ]

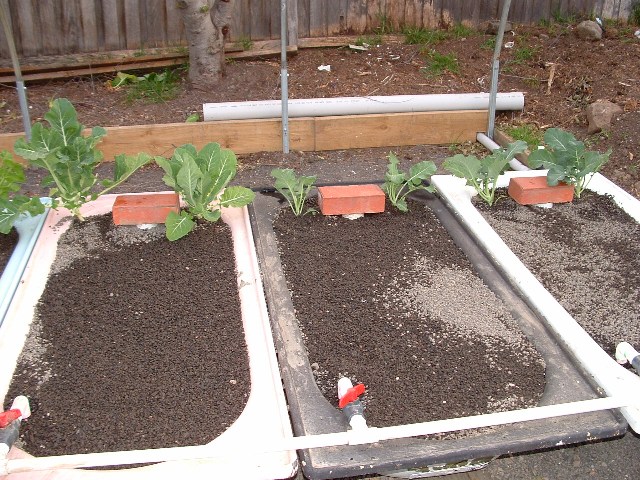

File comment: transplanted broccoli from original system
Grow beds,sump and fish tank. 069.jpg
Grow beds,sump and fish tank. 069.jpg [ 135.27 KiB | Viewed 1787 times ]
Top
 Profile
Reply with quote
Food&Fish
 Post subject: Re: A Tragic Greenhouse
PostPosted: Sep 10th, '07, 19:27
Seriously, this cant be healthy.
Seriously, this cant be healthy.
User avatar

Joined: Aug 24th, '06, 19:46
Posts: 6604
Location: sunbury
Gender: Male
Are you human?: no
Location: sunbury
Thats cheating
Top
 Profile
Reply with quote
twintragics
 Post subject:
PostPosted: Sep 10th, '07, 19:31
Almost divorced
Almost divorced
User avatar

Joined: Feb 22nd, '07, 18:27
Posts: 1280
Location: geelong
Gender: Male
Getting fish this wknd FF. Forgot to draw attention to ur sump pipe suggestion. You can see in the pics we have a 150mm stormie b/n the sump barrels. Got some holes drilled in it and gravel below, any problems and we should know pretty quickly.

With my subpond 3000 fishtank pump, it takes 25 minutes to fill the gbs to the max of the v crenellation on the inner drain pipe when the return ball valve FROM the fishtank is closed. It takes 35 minutes to completely dump this water. To start with then, I have programmed the timer to fill for 20 off for 40 from 5am til 6pm, (timer only has 14 programmable preset options.)
Top
 Profile
Reply with quote
Food&Fish
 Post subject: Re: A Tragic Greenhouse
PostPosted: Sep 10th, '07, 19:35
Seriously, this cant be healthy.
Seriously, this cant be healthy.
User avatar

Joined: Aug 24th, '06, 19:46
Posts: 6604
Location: sunbury
Gender: Male
Are you human?: no
Location: sunbury
When you are ready for a real pump [fill under 8 min ] look me up got a heap in stock
Top
 Profile
Reply with quote
twintragics
 Post subject:
PostPosted: Sep 10th, '07, 19:54
Almost divorced
Almost divorced
User avatar

Joined: Feb 22nd, '07, 18:27
Posts: 1280
Location: geelong
Gender: Male
Well, it has been a war of attrition and so far, the good guys are winning!
I have used the 20mm scoria from the original system, to surround the standpipes and prevent 5mm gravel getting into my 6mm pre drilled drainage holes! It will also help cycle my system quicker.

Sump pump kicks in at about half sump full and pumps like a ripper, handling inflow with ease.

Running spa pump in original setup for fishies and changing out a little water each day. Nitrates are starting to climb but everything else is spot on.

I will pick up 400 2-3 inch silver perch this week. It sounds a lot but we need to remember it is all related to biomass and oxygenation. 400 babies in a well oxygenated 5000lt tank is fine imo. We have plenty more gbs to bring on line as they grow. We are into spring now and will have plenty of heavy feeding plants to remove nutes and as can be seen, I don't think O2 will be an issue. (I do need a couple big airstones for when the pump is off overnight, gettem this week b4 fishies.)

We are pretty much ready to roll. Time to start testing the vitals, making adjustments and away we go. Already there are a few things i would change, but we have the flexibility to do this as we go. We will add uv cloth over the next month or so and plastic for heat retention b4 next winter. I feel this is a fairly robust sytem in the making and look forward to seeing how the production side of things unfolds. I hope these photos serve as inspiration to those looking to get involved and a kick along for those who may have had a setback or got caught up in the hustle and bustle of day to day living.
Top
 Profile
Reply with quote
faye
 Post subject:
PostPosted: Sep 10th, '07, 20:03
Moderator
Moderator
User avatar

Joined: Jan 11th, '07, 14:20
Posts: 6449
Location: Perth
Gender: Female
Location: Jandakot
That looks brilliant, it is so neat. Love the security door.
Top
 Profile
Reply with quote
twintragics
 Post subject:
PostPosted: Sep 10th, '07, 20:21
Almost divorced
Almost divorced
User avatar

Joined: Feb 22nd, '07, 18:27
Posts: 1280
Location: geelong
Gender: Male
Hi Faye, I am thinking about offering it as the AP entry door on Thank God You're Here! Watchyathink? The neatness is all thanks to dad, he is a stringline and spirit level at 10 paces kinda guy.

Seems like u have been busy too. Can't believe how quick things have kicked off in ur system, truly inspiring.
Top
 Profile
Reply with quote
gemmell
 Post subject:
PostPosted: Sep 11th, '07, 07:32
Almost divorced
Almost divorced
User avatar

Joined: Dec 28th, '06, 15:25
Posts: 1326
Location: Canberra
Gender: Male
Are you human?: Vegetable
Location: Canberra
TT, looks awesome. I hate reading threads like this at 9:30am on a workday because I get all excited but then have to sit and stare at a computer screen all day.

Why are you only going to pump during the day? Noise/Heat/Let the fish sleep/Other?
