I think your pump will read 12 Volt 5 AMP ,, that's 60 watts. So that 5 Watt solar panel , mounted and directionaled toward the sun for a full day ( no cloud PLEASE) may just give you 20 minutes pump run time per 24 hours.


Top
 Profile
Reply with quote
    Advertisement

PostPosted: Aug 3rd, '09, 21:08
Xtreme Contributor
Xtreme Contributor

Joined: Jun 7th, '09, 20:13
Posts: 198
Gender: Male
Location: Australia, WA, Dalwallinu
Hi Bentaz
read this in Sigridi's thread but didn't want to hijack there
bentaz wrote:
mate are you planing on running your pump 24/7? I have been looking for 12volt timers and as best i can find there is only 1 type, just woundered what your plan is as im not sure what to do?


There are stacks of battery powered digital timers around that will do just about any timing job you want and matched with a suitable relay will control any voltage or current. So don't limit yourself to looking for 12 volt gear.
Jaycar have a 12vdc timer with up to eight cycles a day that doesn't look too bad see cat.no AA0361 on the jaycar site. Talk to them or a similar store about what volts and amps you need to control and they will sort the relays out for you
John


Top
 Profile
Reply with quote
PostPosted: Aug 4th, '09, 06:33
Bordering on Legend
Bordering on Legend
User avatar

Joined: Jun 8th, '09, 03:41
Posts: 441
Location: Rokewood, Vic.
Gender: Male
Are you human?: not for much longer
Location: Rokewood,vic
Thanks john will do.

Edit
Had a look and that is the same one I'm looking at!


Top
 Profile
Reply with quote
PostPosted: Aug 4th, '09, 14:46
Almost divorced
Almost divorced
User avatar

Joined: Dec 28th, '06, 15:25
Posts: 1326
Location: Canberra
Gender: Male
Are you human?: Vegetable
Location: Canberra
Another thing to watch out for when using bathtubs:
A) Thermal conductivity - they're basically big metal heatsinks transferring heat from your water to the air around, so you have to make sure your temperature doesn't swing about all over the place
B) Heavy metals - if there are spots where the enamel is coming off, watch for Nickel (in particular) and other heavy metals. Apparently they use Nickel to bond the enamel to the metal underneath. Nickel kills fish (by inhibiting their immune system).


Top
 Profile
Reply with quote
PostPosted: Aug 4th, '09, 16:05
Bordering on Legend
Bordering on Legend
User avatar

Joined: Jun 8th, '09, 03:41
Posts: 441
Location: Rokewood, Vic.
Gender: Male
Are you human?: not for much longer
Location: Rokewood,vic
I did not not even think of that, I will keep it in mind when looking for new tubs! maybe I should line them with pond liner? what do people think?


Top
 Profile
Reply with quote
PostPosted: Aug 5th, '09, 03:42
Legend Member
Legend Member
User avatar

Joined: Sep 2nd, '07, 01:17
Posts: 537
Location: South Africa
Gender: Male
Quote:
Actually the defining capacity that doesn't require a licence... is less than 10,000L... classed as a "hobbyist"...


Here in South Africa, the water volume is not the issue, it's the "production" of fish (in tons) so it's much easier to slip under the radar screen. Lets hope that our regulators don't get wind of what your guys are up to as water volume is so much easier to measure.


Top
 Profile
Reply with quote
PostPosted: Aug 5th, '09, 06:56
Almost divorced
Almost divorced
User avatar

Joined: Dec 28th, '06, 15:25
Posts: 1326
Location: Canberra
Gender: Male
Are you human?: Vegetable
Location: Canberra
bentaz wrote:
I did not not even think of that, I will keep it in mind when looking for new tubs! maybe I should line them with pond liner? what do people think?


I learnt the hard way.

To remedy this, I put a layer of bubble wrap and then a layer of pond liner. The bathtub fitting seals the pond liner well enough so no problems on that front. This gives you the best of both worlds: Pond liner is as safe as houses in terms of leaching, and you get some good insulation at the same time.


Top
 Profile
Reply with quote
PostPosted: Aug 5th, '09, 10:09
Bordering on Legend
Bordering on Legend
User avatar

Joined: Jun 8th, '09, 03:41
Posts: 441
Location: Rokewood, Vic.
Gender: Male
Are you human?: not for much longer
Location: Rokewood,vic
Sorry double post


Last edited by bentaz on Aug 5th, '09, 10:12, edited 1 time in total.

Top
 Profile
Reply with quote
PostPosted: Aug 5th, '09, 10:11
Bordering on Legend
Bordering on Legend
User avatar

Joined: Jun 8th, '09, 03:41
Posts: 441
Location: Rokewood, Vic.
Gender: Male
Are you human?: not for much longer
Location: Rokewood,vic
gemmell wrote:
bentaz wrote:
I did not not even think of that, I will keep it in mind when looking for new tubs! maybe I should line them with pond liner? what do people think?


I learnt the hard way.

To remedy this, I put a layer of bubble wrap and then a layer of pond liner. The bathtub fitting seals the pond liner well enough so no problems on that front. This gives you the best of both worlds: Pond liner is as safe as houses in terms of leaching, and you get some good insulation at the same time.


Cool looks like that will be the plan!!!
How well does pond liner hold up under gravel??


Top
 Profile
Reply with quote
PostPosted: Aug 5th, '09, 15:43
Bordering on Legend
Bordering on Legend
User avatar

Joined: Jun 8th, '09, 03:41
Posts: 441
Location: Rokewood, Vic.
Gender: Male
Are you human?: not for much longer
Location: Rokewood,vic
Well I now have my solar panels, batt and regulator all wired up!
Still need to get a DC timer so I wont be converting the system just yet, but heres some pics of the kit so far.
Attachment:
File comment: 2 x 15 Wt panels (sideways)
IMG_2992.jpg [ 73.52 KiB | Viewed 1610 times ]
Attachment:

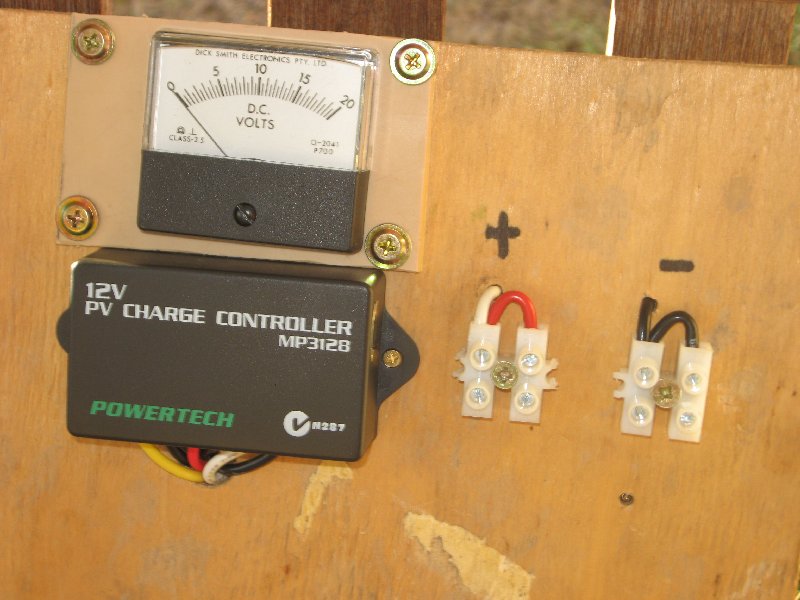

File comment: Regulator, Volt meter and load terminals
IMG_2989.jpg [ 77.17 KiB | Viewed 1608 times ]
Attachment:

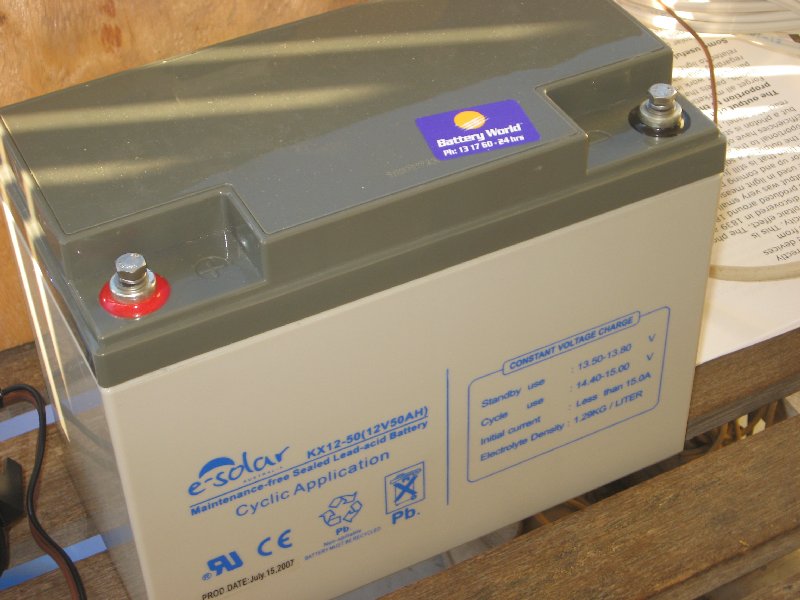

File comment: 50 Amp/Hour sealed deep cycle battery
IMG_2990.jpg [ 72.87 KiB | Viewed 1613 times ]


Top
 Profile
Reply with quote
PostPosted: Aug 5th, '09, 15:46
Bordering on Legend
Bordering on Legend
User avatar

Joined: Jun 8th, '09, 03:41
Posts: 441
Location: Rokewood, Vic.
Gender: Male
Are you human?: not for much longer
Location: Rokewood,vic
Attachment:

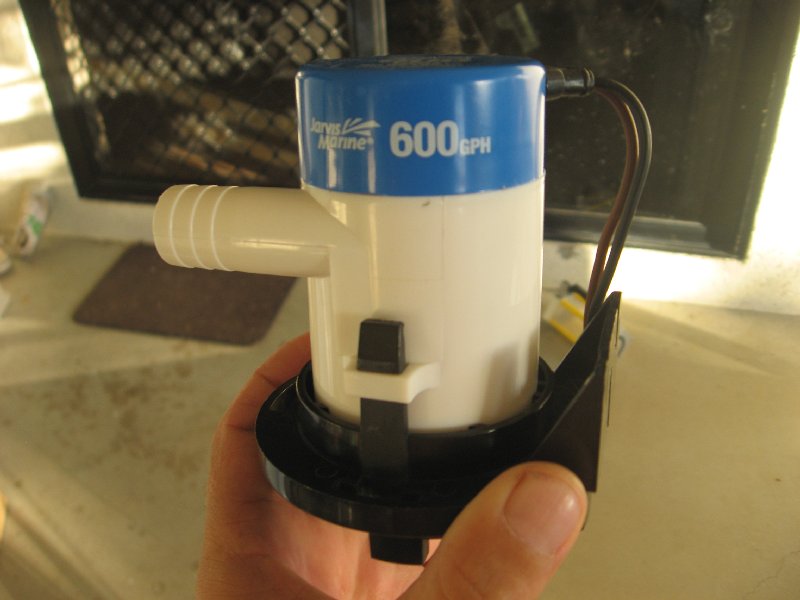

File comment: Pump, waiting for timer
IMG_2991.jpg [ 52.95 KiB | Viewed 1600 times ]
Attachment:
IMG_2995.jpg [ 87.3 KiB | Viewed 1603 times ]
Attachment:
File comment: My plants
IMG_2993.jpg [ 92.21 KiB | Viewed 1599 times ]


Top
 Profile
Reply with quote
PostPosted: Aug 5th, '09, 16:59
Almost divorced
Almost divorced
User avatar

Joined: Dec 28th, '06, 15:25
Posts: 1326
Location: Canberra
Gender: Male
Are you human?: Vegetable
Location: Canberra
bentaz wrote:
gemmell wrote:
bentaz wrote:
I did not not even think of that, I will keep it in mind when looking for new tubs! maybe I should line them with pond liner? what do people think?


I learnt the hard way.

To remedy this, I put a layer of bubble wrap and then a layer of pond liner. The bathtub fitting seals the pond liner well enough so no problems on that front. This gives you the best of both worlds: Pond liner is as safe as houses in terms of leaching, and you get some good insulation at the same time.


Cool looks like that will be the plan!!!
How well does pond liner hold up under gravel??


Really well. EPDM (or is it EDPM?) is a rubber, so it's pretty impervious to crushing forces. You need something pretty sharp to cut it, I don't think rocks would do the job. And if it's thick enough, and the rocks aren't moving around alot (they shouldn't be) then I really can't see you having any problems. From what I've read, the biggest problem with that rubber is if tree roots start getting into it.


Top
 Profile
Reply with quote
PostPosted: Aug 5th, '09, 17:11
When it comes to making things work with solar... the lads up in Nimbin have been doing it for years.... try this...

http://www.rpc.com.au/catalog/digital-timer-p-2108.html

Or these...

http://www.altronics.com.au/download/ads/flyer/12.pdf

https://www.photonage.com.au/index.php? ... ts_id=9791

Still limited in some respects... but they might help... might be worth talking to the "Rainbow Power Company" blokes in Nimbin... :wink:


Top

Reply with quote
PostPosted: Aug 5th, '09, 17:25
Bordering on Legend
Bordering on Legend
User avatar

Joined: Jun 8th, '09, 03:41
Posts: 441
Location: Rokewood, Vic.
Gender: Male
Are you human?: not for much longer
Location: Rokewood,vic
RupertofOZ wrote:
When it comes to making things work with solar... the lads up in Nimbin have been doing it for years.... try this...

http://www.rpc.com.au/catalog/digital-timer-p-2108.html

Or these...

http://www.altronics.com.au/download/ads/flyer/12.pdf

https://www.photonage.com.au/index.php? ... ts_id=9791

Still limited in some respects... but they might help... might be worth talking to the "Rainbow Power Company" blokes in Nimbin... :wink:


Thanks Rupe the Rainbow PC one is the one I want to get, just waiting on funds now


Top
 Profile
Reply with quote
PostPosted: Aug 6th, '09, 14:28
Bordering on Legend
Bordering on Legend
User avatar

Joined: Jun 8th, '09, 03:41
Posts: 441
Location: Rokewood, Vic.
Gender: Male
Are you human?: not for much longer
Location: Rokewood,vic
hi all

could you turn a pump on and off with a solenoid controler like the one in this link?http://cgi.ebay.com.au/Irrigation-Controller-Battery-DDCWP-Series-4-Station_W0QQitemZ360053854949QQcmdZViewItemQQptZAU_Gardening_Equipment?hash=item53d4e1d2e5&_trksid=p4634.c0.m14.l1262
