Fishbits
PostPosted: Aug 18th, '13, 11:10
Xtreme Contributor
Xtreme Contributor

Joined: Oct 31st, '12, 07:38
Posts: 191
Gender: Male
Are you human?: I THOUGHT I was...
Location: USA New Hampshire
o.M.G. OzGal WHAT WERE YOU THINKING!?!?!?!?!? Glad I could help.... :D

What about vacuum tubes for solar water heating Rupe/OG? As long as you can get hands on the vac tubes themselves, the rest can be DIY'd with basic copper soldering... Even if they only get you up to 15-25*C as opposed to the claimed 100C+ it should get you good enough for fish water and maybe even a few degrees up for ambient temp, no?
Top
 Profile
Reply with quote
    Advertisement

Ozgal
PostPosted: Aug 18th, '13, 11:25
Valued Contributor
Valued Contributor
User avatar

Joined: Feb 6th, '10, 13:17
Posts: 57
Gender: Female
Are you human?: On rare occasions
Location: Australia, Southern Highlands NSW
Fishbits wrote:
o.M.G. OzGal WHAT WERE YOU THINKING!?!?!?!?!? Glad I could help.... :D

What about vacuum tubes for solar water heating Rupe/OG? As long as you can get hands on the vac tubes themselves, the rest can be DIY'd with basic copper soldering... Even if they only get you up to 15-25*C as opposed to the claimed 100C+ it should get you good enough for fish water and maybe even a few degrees up for ambient temp, no?



Thanks - now I'm needlessly worrying. :?

Will look into vacuum tubes (gotta love you-tube).

We do have a bore that is down 108 mtrs but hubbie says there is no way he's running the pump 24/7 - such a party pooper. Pretty sure the water temp down there would be nice and stable.

If all else fails and we cant get the temps right for trout, I wonder what crumbed goldfish taste like?
Top
 Profile
Reply with quote
Gunagulla
PostPosted: Aug 18th, '13, 11:29
A posting God
A posting God
User avatar

Joined: Mar 9th, '13, 10:44
Posts: 3455
Location: Loomberah NSW
Gender: Male
Are you human?: Im a force of nature
Location: I'm right here
Easy enough to heat the water a few degrees with evacuated tubes during the day, but you need a lot of insulation to maintain it overnight, otherwise you will stress your fish with too high a temperature range. Thermal shock is bad news for fish! I have Pex-Al-Pex pipe in the ground wrapped round my FT, to use the ground as a thermal mass, and although I have done a little bit of heating over winter, just with poly pipe so far (saving the evac tubes until I get some warm water fish), my first serious use of thermal regulation will be cooling the system water as the weather warms up in spring, to hopefully lengthen my trout growing season a bit.


Last edited by Gunagulla on Aug 18th, '13, 11:34, edited 1 time in total.

Top
 Profile
Reply with quote
RupertofOZ
PostPosted: Aug 18th, '13, 11:32
Fishbits wrote:
o.M.G. OzGal WHAT WERE YOU THINKING!?!?!?!?!? ...

the rest can be DIY'd with basic copper soldering?

Oh no no no.... copper and fish (and crustaceans) do NOT go together...
Top

Reply with quote
RupertofOZ
PostPosted: Aug 18th, '13, 11:36
Save yourself the heartache... run two separate systems...

One for trout over winter... the other for Perch or whatever... they wont grow to plate size in a single summer anyway...

When you harvest the trout... add new (warm water fish) fingerlings...

When it's time for trout again... combine fingerlings with the other tank... which you'll soon begin harvesting...

Introduce trout fingerlings to now empty tank...

Repeat....
Top

Reply with quote
Ozgal
PostPosted: Aug 18th, '13, 11:59
Valued Contributor
Valued Contributor
User avatar

Joined: Feb 6th, '10, 13:17
Posts: 57
Gender: Female
Are you human?: On rare occasions
Location: Australia, Southern Highlands NSW
Attachment:

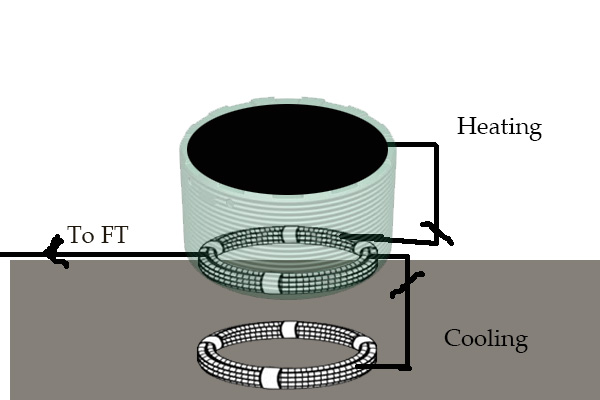

coolinghotteringnottoodeeplythoughaboutidea.jpg [ 54.27 KiB | Viewed 2929 times ]

The water in the corrugated tank will never be exchange with the FT, its our heat sink. But poly pipe within the corrugated tank will act as the heat exchange.
Top
 Profile
Reply with quote
Gunagulla
PostPosted: Aug 18th, '13, 12:22
A posting God
A posting God
User avatar

Joined: Mar 9th, '13, 10:44
Posts: 3455
Location: Loomberah NSW
Gender: Male
Are you human?: Im a force of nature
Location: I'm right here
Ozgal, have a read of this thread: viewtopic.php?f=1&t=17723
and also my system thread, which also has some info about using ground heat/cool.
As you have it pictured, you wont be able to get enough energy transfer between water and ground, due to lack of heat exchange surface area, and the reservoir of heat or "cool" in the ground would quickly be exhausted due to the small amount of available heat energy/heat sinking near the pipe.
Top
 Profile
Reply with quote
TCLynx
PostPosted: Aug 18th, '13, 20:16
Seriously, this cant be healthy.
Seriously, this cant be healthy.
User avatar

Joined: Dec 6th, '07, 01:13
Posts: 10709
Images: 0
Location: central FL
Gender: Female
Are you human?: YES at least mostly
Location: USA, Florida, Yalaha
Ozgal wrote:
TCLynx wrote:
They put a lot of effort into the research for the media for the zipgrow towers. So far when I've had people decide they are going to save money by going the cheaper DIY rout, they have usually come back later to get the real deal.

Good Luck with your experiments.


Hi TCLynx,

I'm sure your 100% spot on with your comment, but they just aren't available in Oz. Otherwise think we would definitely get some.

But I also have the view that mucky about with building things is half the fun of aquaponics. :wave1:


I'm sure shipping is pretty outrageous to get them shipped to Oz, But I'm sure the guys at BrightAgrotech are willing and able to sell them to people down under. At least I believe when they did their Grow Up Kickstarter they were offering to ship the Spring systems world wide.
Top
 Profile
Reply with quote
Ozgal
PostPosted: Sep 29th, '13, 11:11
Valued Contributor
Valued Contributor
User avatar

Joined: Feb 6th, '10, 13:17
Posts: 57
Gender: Female
Are you human?: On rare occasions
Location: Australia, Southern Highlands NSW
Update :-

Attachment:

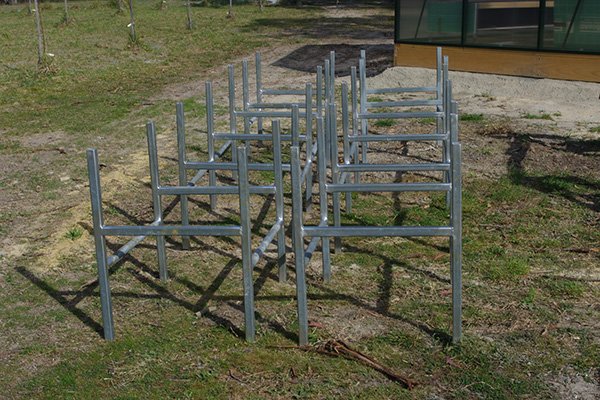

File comment: Bed frames
IMGP1939.jpg [ 186.47 KiB | Viewed 2838 times ]

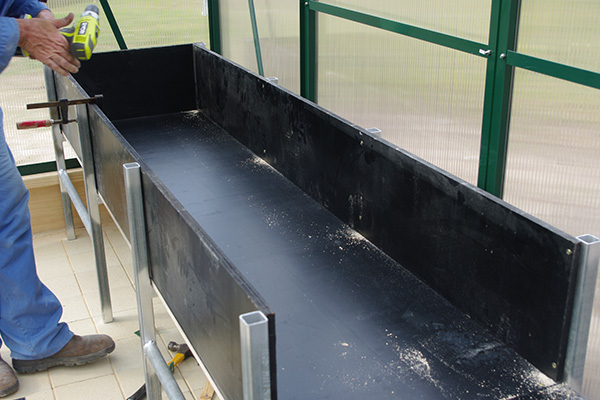

Attachment:
IMGP1936.jpg [ 110.72 KiB | Viewed 2838 times ]

Attachment:

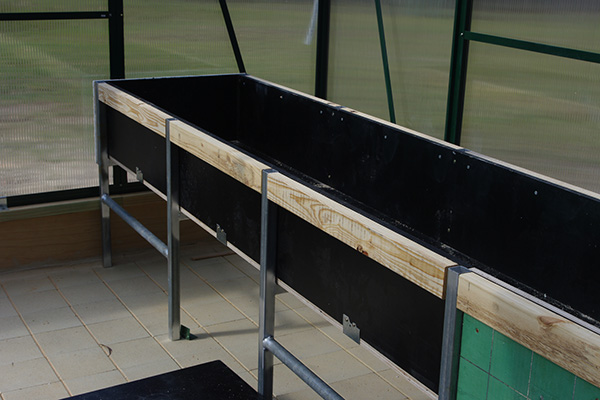

File comment: Lined frames
IMGP1940.jpg [ 99.09 KiB | Viewed 2838 times ]


Top
 Profile
Reply with quote
Ozgal
PostPosted: Sep 29th, '13, 11:19
Valued Contributor
Valued Contributor
User avatar

Joined: Feb 6th, '10, 13:17
Posts: 57
Gender: Female
Are you human?: On rare occasions
Location: Australia, Southern Highlands NSW
More pics :-
Attachment:

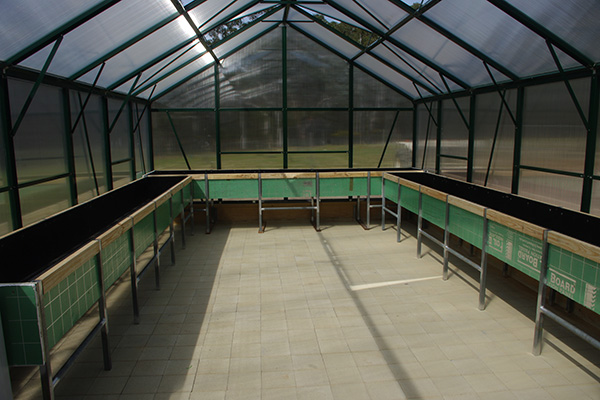

IMGP1944.jpg [ 119.43 KiB | Viewed 2838 times ]


Beds were lined with rubber then the outsides of the beds were covered with foam roof insulation sheets.

Attachment:

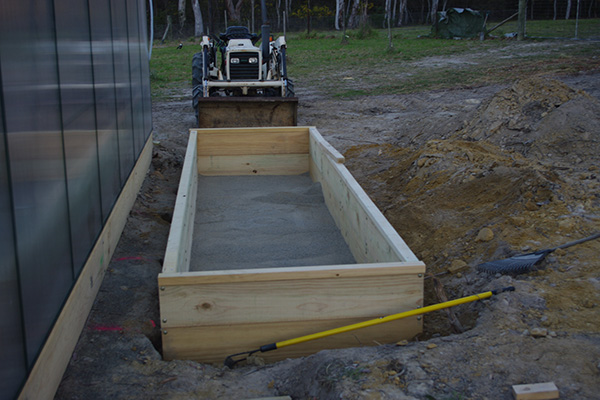

File comment: Sump
IMGP1948.jpg [ 115.22 KiB | Viewed 2838 times ]

Attachment:

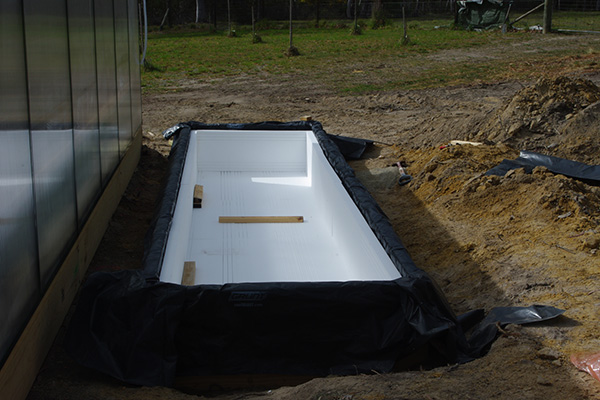

File comment: Insulated with Expol under floor insulation
IMGP1950.jpg [ 111.99 KiB | Viewed 2838 times ]


Top
 Profile
Reply with quote
Ozgal
PostPosted: Sep 29th, '13, 11:23
Valued Contributor
Valued Contributor
User avatar

Joined: Feb 6th, '10, 13:17
Posts: 57
Gender: Female
Are you human?: On rare occasions
Location: Australia, Southern Highlands NSW

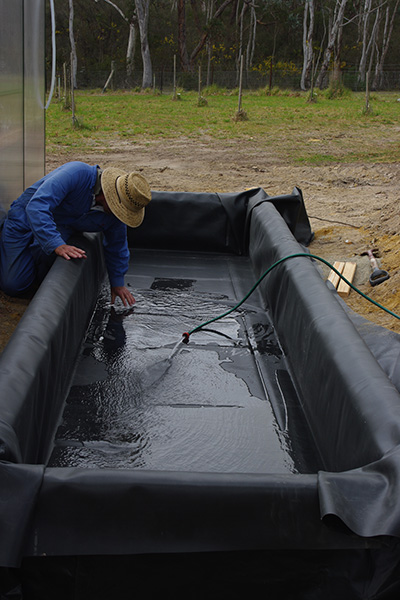

Add rubber and water

Attachment:
IMGP1951.jpg [ 114.43 KiB | Viewed 2838 times ]

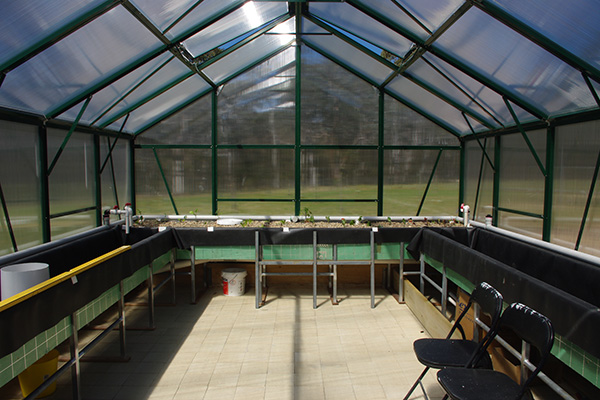

One bed filled with river stones and planted. Now our backs just have to get over the process before we go any further.

Attachment:
IMGP1952.jpg [ 134.48 KiB | Viewed 2838 times ]


Top
 Profile
Reply with quote
RupertofOZ
PostPosted: Sep 29th, '13, 11:43
Nicely done...
Top

Reply with quote
Fishbits
PostPosted: Sep 30th, '13, 11:17
Xtreme Contributor
Xtreme Contributor

Joined: Oct 31st, '12, 07:38
Posts: 191
Gender: Male
Are you human?: I THOUGHT I was...
Location: USA New Hampshire
TOTALLY jealous of those bed frames OG. :notworthy: Can I put an order in for (7) @ 4'x80' now? :D
Top
 Profile
Reply with quote
scotty435
PostPosted: Sep 30th, '13, 15:23
Moderator
Moderator
User avatar

Joined: Aug 26th, '10, 07:17
Posts: 9104
Gender: Male
Are you human?: YES
Location: Oregon, USA
Looks great Ozgal. What's on tap for the middle of the greenhouse?
Top
 Profile
Reply with quote
Ozgal
PostPosted: Sep 30th, '13, 16:17
Valued Contributor
Valued Contributor
User avatar

Joined: Feb 6th, '10, 13:17
Posts: 57
Gender: Female
Are you human?: On rare occasions
Location: Australia, Southern Highlands NSW
If you says "what's on tap" to an Aussie, we automatically think beer! So now I'm torn between the extra double grow beds that hubbie has welded or a row of beer kegs ..... decisions decisions
