I'm designing an aquaponics system, and I wonder if I'm on the right track.
Drew 3D Sketchup and want an assessment of those who know the subject.


Attachments:

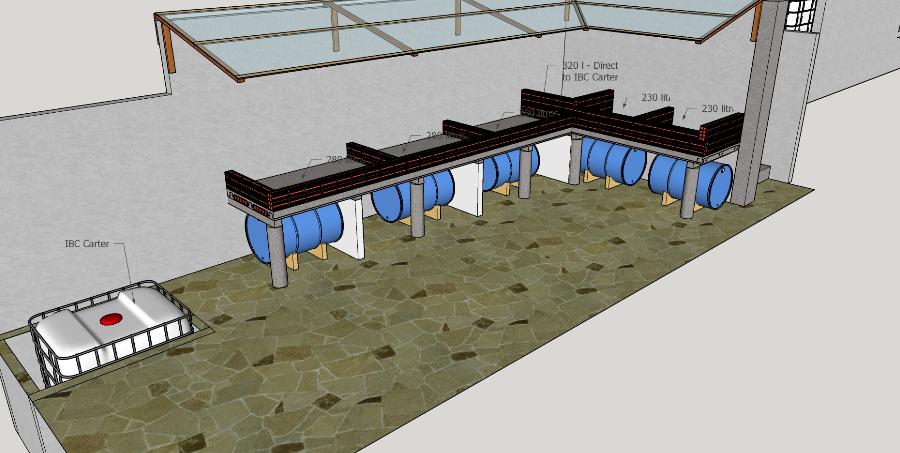

Aquapônia - Leito de Cultivo - Sistema IBC + Cisterna-Recortado.jpg
Aquapônia - Leito de Cultivo - Sistema IBC + Cisterna-Recortado.jpg [ 59.9 KiB | Viewed 4765 times ]
Top
 Profile
Reply with quote
    Advertisement

 Post subject: Re: A Brazilian System
PostPosted: Jun 29th, '15, 08:44
Newbie
Newbie
User avatar

Joined: Jun 27th, '15, 20:11
Posts: 20
Gender: Male
Are you human?: sim
Location: Icapuí - Ceará - Brasil
Link to 3D Sketchup



https://3dwarehouse.sketchup.com/model.html?id=u4b52225c-1e5c-454d-b08b-7de33457cf78


Top
 Profile
Reply with quote
 Post subject: Re: A Brazilian System
PostPosted: Jun 29th, '15, 15:57
Site Admin
Site Admin
User avatar

Joined: Mar 12th, '06, 07:56
Posts: 17803
Images: 4
Location: Perth
Gender: Male
Blog: View Blog (1)
How were you planning on having it running Emilio? Just trying to work out how it's plumbed and how it was going to operate?


Top
 Profile Personal album
Reply with quote
 Post subject: Re: A Brazilian System
PostPosted: Jun 29th, '15, 16:01
Legend Member
Legend Member

Joined: Mar 29th, '15, 16:06
Posts: 752
Gender: Male
Are you human?: yes
Location: Austalia, SA Pt lincoln
Its going to be shaved bare :oops:


Top
 Profile
Reply with quote
 Post subject: Re: A Brazilian System
PostPosted: Jun 29th, '15, 19:38
Newbie
Newbie
User avatar

Joined: Jun 27th, '15, 20:11
Posts: 20
Gender: Male
Are you human?: sim
Location: Icapuí - Ceará - Brasil
My doubts concerning the growbed in the corner. I intend to drain directly to the IBC on the floor. IBC this water will be pumped to the IBC with the fish.
I am finalizing the project and soon will have the final design.
I have trouble understanding what you write, and maybe you do not even understand what I write, but I tried in many places and found place with more information than here in Backyard Forum.
Thank you for your attention and I hope to count on the help of you.


Attachments:
File comment: I did not draw even feeding pipe

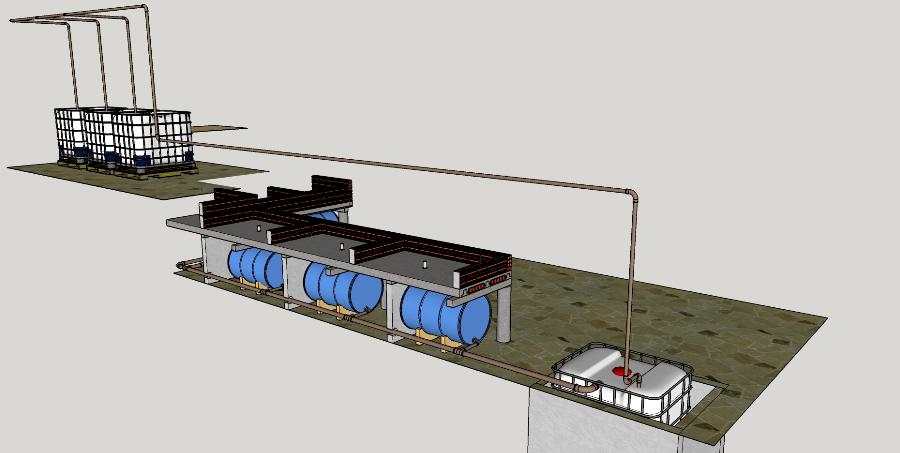

Aquapônia - Leito de Cultivo - Sistema IBC + Cisterna#05-Recortado.jpg
Aquapônia - Leito de Cultivo - Sistema IBC + Cisterna#05-Recortado.jpg [ 37.27 KiB | Viewed 4742 times ]
Aquapônia - Leito de Cultivo - Sistema IBC + Cisterna#04-Recortado.jpg
Aquapônia - Leito de Cultivo - Sistema IBC + Cisterna#04-Recortado.jpg [ 38.07 KiB | Viewed 4742 times ]
Top
 Profile
Reply with quote
 Post subject: Re: A Brazilian System
PostPosted: Jul 1st, '15, 06:34
Newbie
Newbie
User avatar

Joined: Jun 27th, '15, 20:11
Posts: 20
Gender: Male
Are you human?: sim
Location: Icapuí - Ceará - Brasil
Finalizei o desenho, mas o projeto foi cancelado pela minha esposa :naughty: . Terei de escolher outro local. :notworthy:

This also served to me rethink my goals. I start with a much smaller setting.


Attachments:

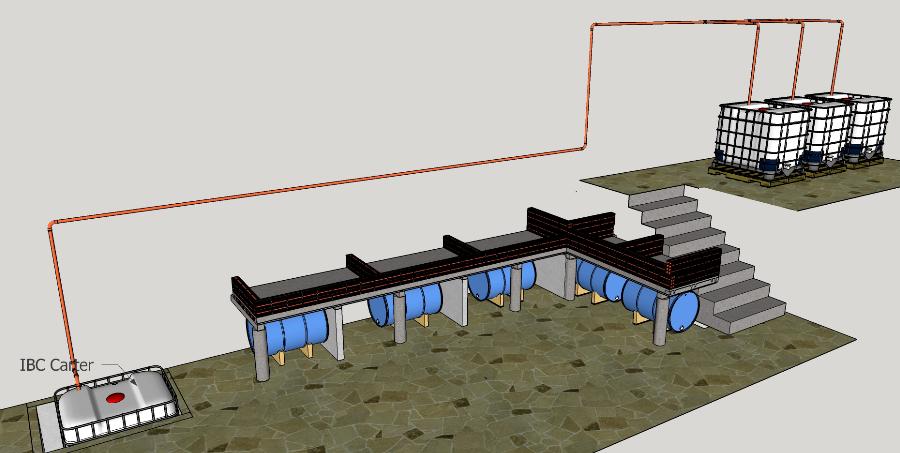

Aquapônia - Sistema IBC + Alvenaria-Tubulação de Retorno-Recortado.jpg
Aquapônia - Sistema IBC + Alvenaria-Tubulação de Retorno-Recortado.jpg [ 50.12 KiB | Viewed 4717 times ]

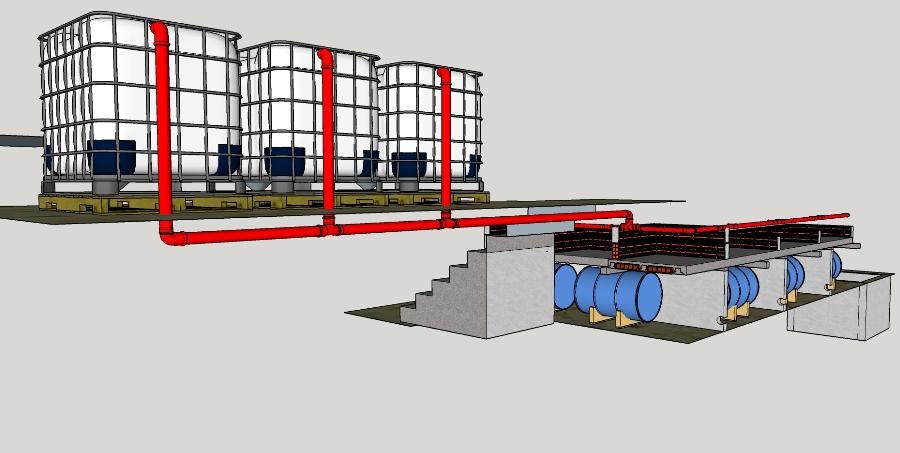

Aquapônia - Sistema IBC + Alvenaria-Tubulação de Inundação-Recortado.jpg
Aquapônia - Sistema IBC + Alvenaria-Tubulação de Inundação-Recortado.jpg [ 47.53 KiB | Viewed 4717 times ]
Aquapônia - Sistema IBC + Alvenaria-Tubulação de Drenagem-Recortado.jpg
Aquapônia - Sistema IBC + Alvenaria-Tubulação de Drenagem-Recortado.jpg [ 47.68 KiB | Viewed 4717 times ]

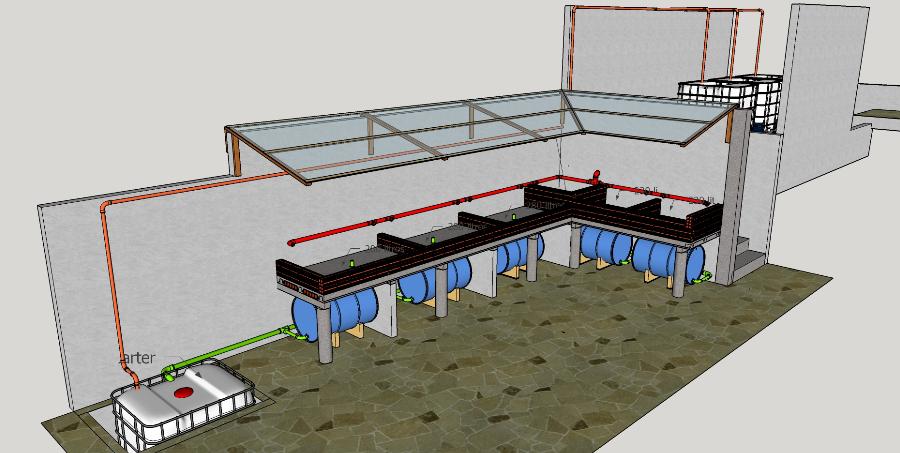

Aquapônia - Sistema IBC + Alvenaria-Final-Recortado.jpg
Aquapônia - Sistema IBC + Alvenaria-Final-Recortado.jpg [ 59.39 KiB | Viewed 4717 times ]
Top
 Profile
Reply with quote
 Post subject: Re: A Brazilian System
PostPosted: Jul 6th, '15, 08:31
Newbie
Newbie
User avatar

Joined: Jun 27th, '15, 20:11
Posts: 20
Gender: Male
Are you human?: sim
Location: Icapuí - Ceará - Brasil
My wife made me put your feet on the ground, I was climbing a starway.
Remade double design, with 4 growbeds IBC and finally a 4 growbeds barrels.
In the main tank will have 700 le an intermediate IBC 1000 l.
Can anyone tell me if this setting is appropriate?


Attachments:
File comment: This is the project that will be deployed.
Aquapônia a Beira Mar - Sistema Aquapônico 1 Tanque + 1 IBC + 4 Leitos de Tonéis-Blog.jpg
Aquapônia a Beira Mar - Sistema Aquapônico 1 Tanque + 1 IBC + 4 Leitos de Tonéis-Blog.jpg [ 102.59 KiB | Viewed 4654 times ]
Aquaponia à Beira Mar -  Sistema Aquapônico 1 Tanque + 1 IBC + 4 Leitos IBC-Blog.jpg
Aquaponia à Beira Mar - Sistema Aquapônico 1 Tanque + 1 IBC + 4 Leitos IBC-Blog.jpg [ 101.25 KiB | Viewed 4654 times ]
Top
 Profile
Reply with quote
 Post subject: Re: A Brazilian System
PostPosted: Jul 6th, '15, 19:35
Almost divorced
Almost divorced
User avatar

Joined: Apr 1st, '13, 21:21
Posts: 1353
Gender: Male
Are you human?: yes
Location: Balcatta WA
I like the last one the "4 growbeds IBC".

best to have as much growing area as possible.

I also like the windows in the Fish tank.


Top
 Profile
Reply with quote
 Post subject: Re: A Brazilian System
PostPosted: Jul 7th, '15, 02:45
Newbie
Newbie
User avatar

Joined: Jun 27th, '15, 20:11
Posts: 20
Gender: Male
Are you human?: sim
Location: Icapuí - Ceará - Brasil
I also prefer the latter, but it is difficult to achieve the IBC's.
The tank for the fish has not originally the windows, but I will bring them. I'll cut and paste the windows glasses with PU adhesive. Can I use PU adhesive?


Top
 Profile
Reply with quote
 Post subject: Re: A Brazilian System
PostPosted: Jul 7th, '15, 21:34
Almost divorced
Almost divorced
User avatar

Joined: Apr 1st, '13, 21:21
Posts: 1353
Gender: Male
Are you human?: yes
Location: Balcatta WA
not sure about the PU adhesive, Maybe some are ok for fish tanks?

It might be better using aquarium silicon adhesive and a bolted frame.

If you cant get IBC's you can make the GB from timber with a poly plastic or EPDM liner.

one or two big GB is are lot easier to plumb than 4 or more small ones.


Top
 Profile
Reply with quote
 Post subject: Re: A Brazilian System
PostPosted: Jul 8th, '15, 17:32
Newbie
Newbie
User avatar

Joined: Jun 27th, '15, 20:11
Posts: 20
Gender: Male
Are you human?: sim
Location: Icapuí - Ceará - Brasil
:naughty: I researched on the toxicity of PU, and I think if it is bad for the skin, eyes and should not be inhaled, it can not be good for the fish. lol

------- Of Use: Avoid contact. People with very sensitive skin should wear gloves.
In case of accidental contact with sensitive skin, wash with soap and water. in
accidental case of contact with eyes, rinse with plenty of water. use in
well-ventilated areas.


Top
 Profile
Reply with quote
 Post subject: Re: A Brazilian System
PostPosted: Jul 9th, '15, 23:59
Newbie
Newbie
User avatar

Joined: Jun 27th, '15, 20:11
Posts: 20
Gender: Male
Are you human?: sim
Location: Icapuí - Ceará - Brasil
Slowboat wrote:
not sure about the PU adhesive, Maybe some are ok for fish tanks?

It might be better using aquarium silicon adhesive and a bolted frame.

If you cant get IBC's you can make the GB from timber with a poly plastic or EPDM liner.

one or two big GB is are lot easier to plumb than 4 or more small ones.



I've been thinking about what you said and I decided to plan a growbed plywood. Still know almost nothing of aquaponics, but I'm becoming a designer first. lol

https://3dwarehouse.sketchup.com/model. ... 542b86337f

If I do the growbed this way, I will coat the plywood with epoxy and line the inside with an EPDM film.


Attachments:

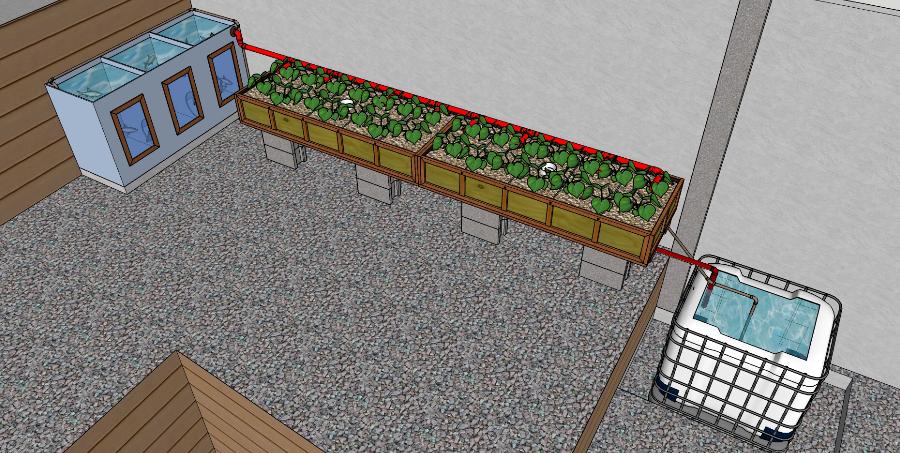

Aquaponia à Beira Mar -  Sistema Aquapônico 1 Tanque + 1 IBC + 2 Leitos Madeira Compensada-Blog.jpg
Aquaponia à Beira Mar - Sistema Aquapônico 1 Tanque + 1 IBC + 2 Leitos Madeira Compensada-Blog.jpg [ 114.99 KiB | Viewed 4549 times ]
Top
 Profile
Reply with quote
 Post subject: Re: A Brazilian System
PostPosted: Jul 10th, '15, 07:06
Newbie
Newbie
User avatar

Joined: Jun 27th, '15, 20:11
Posts: 20
Gender: Male
Are you human?: sim
Location: Icapuí - Ceará - Brasil

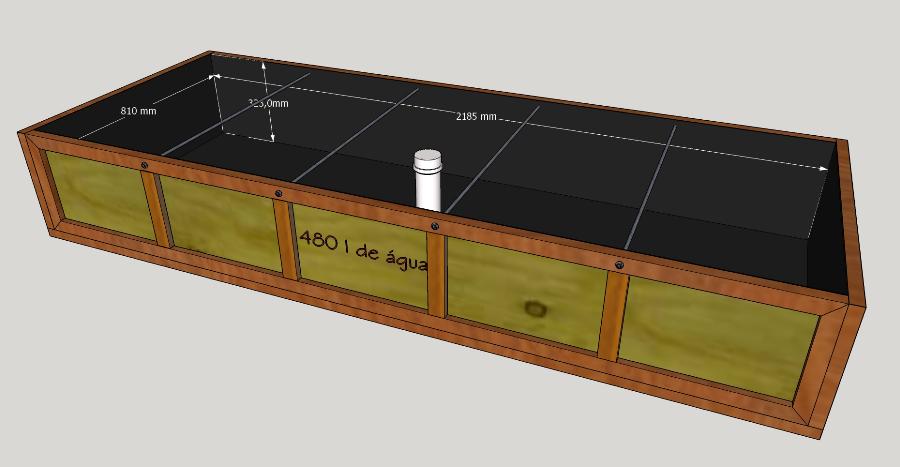

The growbed if made of wood will be built this way.


Attachments:
Blog-Cama de Cultivo em Compensado.jpg
Blog-Cama de Cultivo em Compensado.jpg [ 35.53 KiB | Viewed 4527 times ]
Top
 Profile
Reply with quote
 Post subject: Re: A Brazilian System
PostPosted: Jul 10th, '15, 21:40
Newbie
Newbie
User avatar

Joined: Jun 27th, '15, 20:11
Posts: 20
Gender: Male
Are you human?: sim
Location: Icapuí - Ceará - Brasil
This compressor is suitable for use in aquaponics?


Attachments:
Air-Compressor-Pump-70L-min-220V-35W.jpg [ 16.46 KiB | Viewed 4513 times ]
Top
 Profile
Reply with quote
 Post subject: Re: A Brazilian System
PostPosted: Jul 10th, '15, 21:52
Moderator
Moderator
User avatar

Joined: Aug 26th, '10, 07:17
Posts: 9104
Gender: Male
Are you human?: YES
Location: Oregon, USA
Yes, I have a similar one and it works well. They can be noisy but there are ways to reduce the noise.


Top
 Profile
