PostPosted: Sep 18th, '13, 18:59
Almost divorced
Almost divorced
User avatar

Joined: Apr 1st, '13, 21:21
Posts: 1353
Gender: Male
Are you human?: yes
Location: Balcatta WA
it's one hell of a system, but as I figure your FT overflows to ST via "filter" then pumped to NFT "water fall" to GB then raft then FT.

Would it be better to flow from FT to GB then flow filtered water to NFT and raft then ST and pump back to FT and delete the "filter"?


Top
 Profile
Reply with quote
    Advertisement

PostPosted: Sep 18th, '13, 23:54
Newbie
Newbie

Joined: Sep 17th, '13, 04:41
Posts: 13
Gender: Male
Are you human?: YES
Location: Girona
Slowboat wrote:
it's one hell of a system


hehe :D . I know.. it's a bit complicated, but is what I want, it's like an experiment, to test all systems in a small space. And I think, is the best way to optimize the small space that I have.

Slowboat wrote:
as I figure your FT overflows to ST via "filter" then pumped to NFT "water fall" to GB then raft then FT.

Would it be better to flow from FT to GB then flow filtered water to NFT and raft then ST and pump back to FT and delete the "filter"?

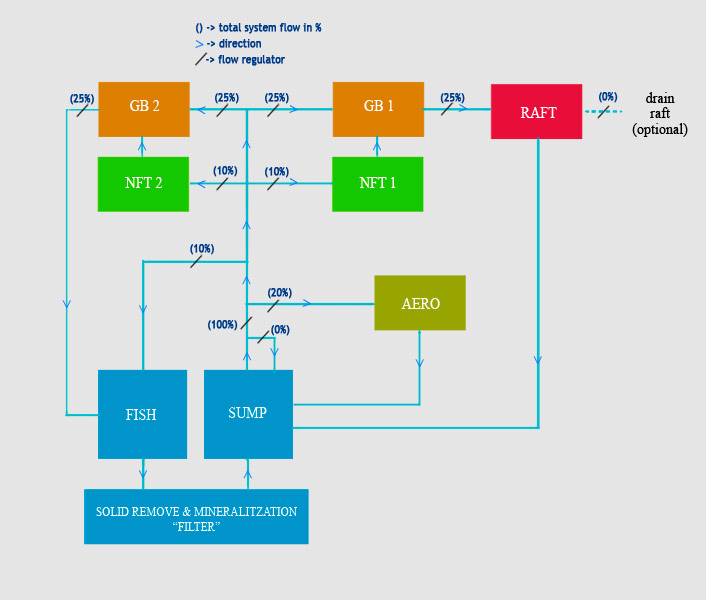

I show an image of the system.. is more easy to understand now :)

Attachment:
3_3.jpg [ 51.87 KiB | Viewed 2036 times ]



That's the flow of the system, I use "filter" word as solid removal, small sand filter, and mineralitzation (I will put some different rocks), this way, in every cicle, 35% of the total water will pass ( so if I make 3 or 4 cycles in one hour, every hour all water in system will pass throw solid removal ), but I think it's good because 10% will enter to "filter" when water pumps to GB, and the rest (25%) will come when GB are drained. So the flow is more constant. And maybe with this system is more clean. I don't know.. I'm newbie, for this reason I'm asking about... hehe


Top
 Profile
Reply with quote
PostPosted: Nov 2nd, '13, 00:41

Joined: Oct 28th, '13, 15:53
Posts: 8
Gender: Male
Are you human?: Yes
Location: Murcia 30840, Espana
Hi Ratafia try this; it may help
http://www.earthangroup.com.au/
Appreciate that english is not your first language, but it's a lot better than my spanish!


Top
 Profile
Reply with quote
PostPosted: Nov 2nd, '13, 03:58
Bordering on Legend
Bordering on Legend

Joined: Jan 10th, '07, 03:19
Posts: 494
Location: Hawaii
Gender: Male
aero will only work if your water is filtered really really well.


Top
 Profile
Reply with quote
PostPosted: Mar 18th, '14, 21:29
Newbie
Newbie

Joined: Sep 17th, '13, 04:41
Posts: 13
Gender: Male
Are you human?: YES
Location: Girona
Hi!! This last months I've been working with the greenhouse. It has been a nice and hard job, but I'm happy with final result. Hope you like it too!

Next step, aquaponics working!!! :D

I would like to share with you some images of greenhouse building.















Top
 Profile
Reply with quote
PostPosted: Mar 18th, '14, 21:44
In need of a life
In need of a life

Joined: Apr 7th, '13, 20:30
Posts: 1664
Gender: Male
Are you human?: Yup
Location: Perth hills.
:shock:
Nice work.


Top
 Profile
Reply with quote
PostPosted: Mar 18th, '14, 22:14
Bordering on Legend
Bordering on Legend

Joined: Aug 4th, '13, 16:56
Posts: 411
Gender: Male
Are you human?: Depends who you ask!
Location: Perth Australia
Very Nice :thumbright:


Top
 Profile
Reply with quote
PostPosted: Mar 18th, '14, 22:23
Valued Contributor
Valued Contributor
User avatar

Joined: Jun 4th, '13, 12:37
Posts: 92
Location: Nakhon Sawan
Gender: Male
Are you human?: YES
Location: Nakhon Sawan
Caramba!
Good luck with your hi-tech project Ratafrita.


Top
 Profile
Reply with quote
PostPosted: Mar 18th, '14, 23:00
Newbie
Newbie

Joined: Sep 17th, '13, 04:41
Posts: 13
Gender: Male
Are you human?: YES
Location: Girona
Thanks guys, :thumbright:

I'll need a bit of luck!!


Top
 Profile
Reply with quote
PostPosted: Mar 19th, '14, 00:34
Moderator
Moderator
User avatar

Joined: Nov 6th, '11, 10:04
Posts: 5100
Gender: Male
Are you human?: Humans err, I Arrr!
Location: Chula Vista, CA, USA
Wow! Aesthetically phenomenal. It is only a matter of time before that really big blue fish tank beside the greenhouse gets involved.


Top
 Profile
Reply with quote
PostPosted: Mar 19th, '14, 01:30
Moderator
Moderator
User avatar

Joined: Aug 26th, '10, 07:17
Posts: 9104
Gender: Male
Are you human?: YES
Location: Oregon, USA
Beautiful structure and great looking setup. Seeing such widely spaced arches and supports has me a little concerned though.

Really cute puppy - :thumbright:


Top
 Profile
Reply with quote
PostPosted: Mar 19th, '14, 01:37
Moderator
Moderator
User avatar

Joined: May 27th, '06, 04:57
Posts: 6480
Images: 0
Gender: Male
Are you human?: I'm a pleasure droid
Location: Frederick, Maryland
Really groovy system and greenhouse ratafrita!


Top
 Profile
Reply with quote
PostPosted: Mar 19th, '14, 01:48
Newbie
Newbie

Joined: Sep 17th, '13, 04:41
Posts: 13
Gender: Male
Are you human?: YES
Location: Girona
thanks!!

scotty435 wrote:
Seeing such widely spaced arches and supports has me a little concerned though.


The archs aren't supporting many weight. The weight of the roof is supported by 3 Stainless steel rails, and practicaly all weight rests on the tips, so the wooden supports. I was a little scared about that too. But I'm bit relaxed after seen strong winds hitting structure, and greenhouse not even noticed that.

Ronmaggi wrote:
It is only a matter of time before that really big blue fish tank beside the greenhouse gets involved.


:laughing3: :laughing3:

My mom will kill me if I put something more in the garden... :shifty:
