Should KEXIV heat or cool his water?
Keep it cool man 0%  0%  [ 0 ]
Lets turn up the heat 10%  10%  [ 1 ]
Forget about it and just run 2 species (1 summer/1 winter) 70%  70%  [ 7 ]
Forget about it and keep bugging wife to hand over the pool 20%  20%  [ 2 ]
Total votes : 10
Author Message
PostPosted: Nov 4th, '08, 10:48
A posting God
A posting God

Joined: Sep 15th, '07, 09:09
Posts: 3712
Location: WA
Gender: Male

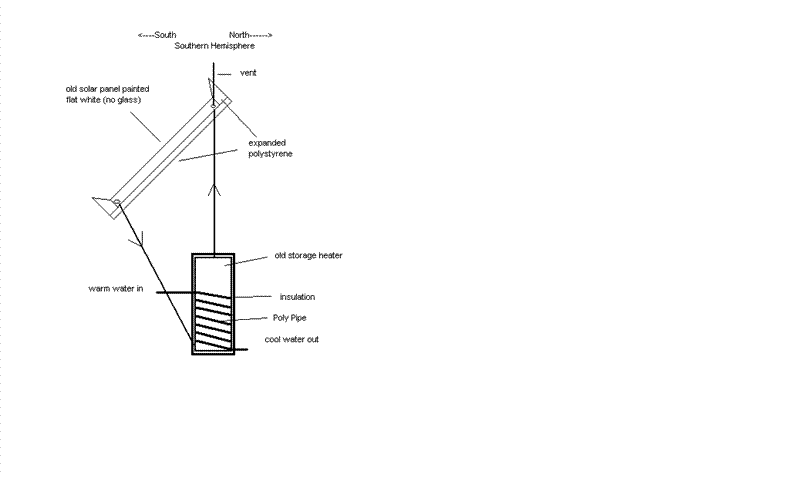

I know we have not visited this for a while but I eventually did a simple schematic of a system for cooling water . The reason flat white paint works is the colouring pigment usually is titanium dioxide a good ir emitter. Acrylic, the normal base for exterior paint is almost invisible to ir (as are a few other synthetics, and as an aside why you can see through some clothes with an ir camera).
The aperture for the solar panel should 'see' clear sky, the polystyrene is hopefully to avoid other ir emmitters, walls etc from impinging ir onto the panel.
This will only work efficiently with a clear sky and low humidity, but it probably will still work.
It should thermolock during the day


Attachments:
Solar Cooler (Medium).GIF
Solar Cooler (Medium).GIF [ 6.95 KiB | Viewed 587 times ]
Top
 Profile
Reply with quote
    Advertisement

PostPosted: Nov 4th, '08, 17:55
Almost divorced
Almost divorced
User avatar

Joined: Aug 25th, '06, 14:54
Posts: 1278
Location: Adelaide
Gender: Male
Thanks Sleepe. I'm still planning on building the cooler, but work and study is holding me back. It's 3 weeks before study finishes for the year. There are 417 jobs on the list my wife has prepared, but working on the AP will be put somewhere in the top 4.


Top
 Profile
Reply with quote
PostPosted: Nov 4th, '08, 17:57
Moderator
Moderator
User avatar

Joined: May 25th, '06, 07:52
Posts: 6857
Location: adelaide hills
Gender: Male
Are you human?: yes
Location: Adelaide Hills
Only 417? you lucky ba&^%$rd lol :P


Top
 Profile
Reply with quote
